Basic Info

Model No.: EJH-14

Certification: CE, ISO

Condition: New

Customized: Customized

Alarm Form: Sound and Light Alarm

Material: SUS304

Additional Info

Packaging: Plywood carton

Productivity: 100 set/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 pcs/month

Certificate: CE, ISO9001

Port: Shenzhen

Product Description

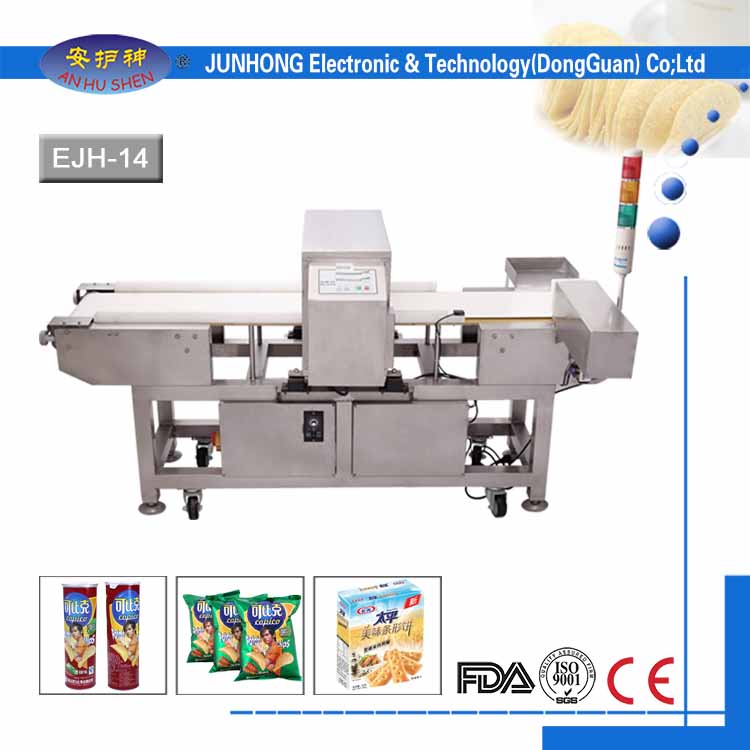

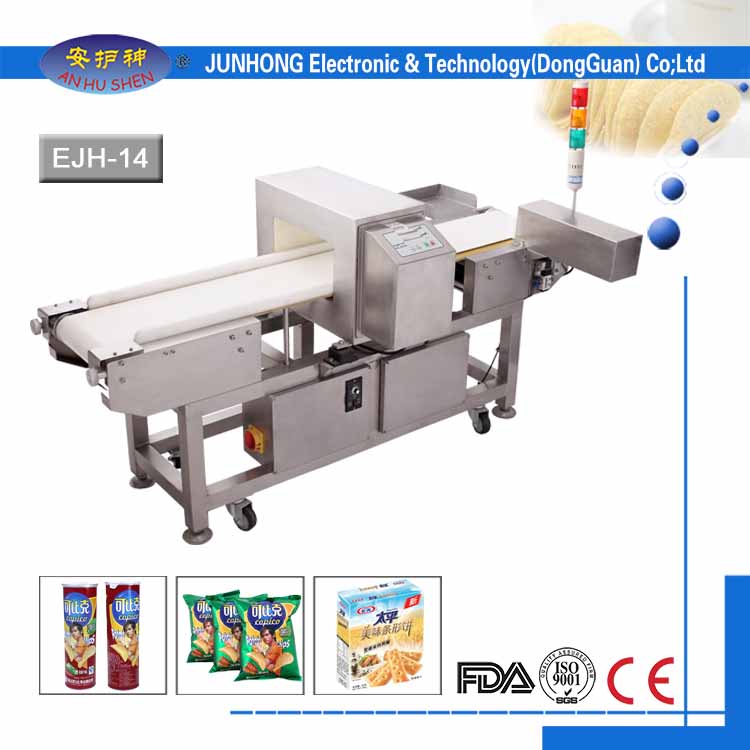

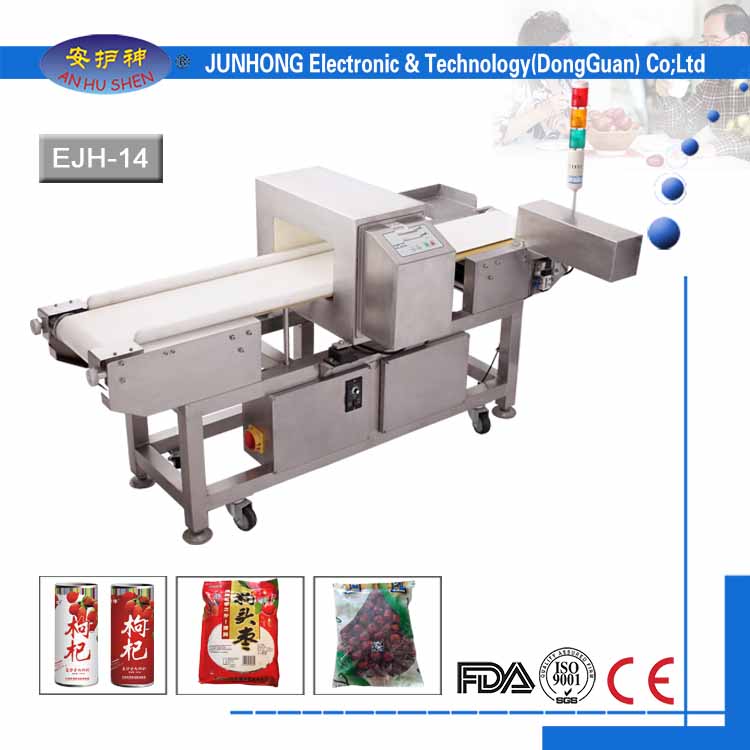

Conveyorbelt Metal Detector with High Sensivity



   EJH-14 food metal detector is a automatic intelligent metal detector. With the adoption of DSP digitalprocessing technology, the industrial metal detector has high sensitivity for metals in coal and cement. The tunnel metal detector can be equipped with automatic rejection device and production line forindustry, then labor cost can be reduced. The conveyor metal detector`s benefit for industrialproduction.

Feature of industry metal detector

1.    LCD display, DSP digital signal processingtechnology, OSD menu in Chinese and English

2.    Recording and memory function: able to store up to 20kinds of different products.

3.    Dual- channel and dual-frequency detecting to detectFe and non-ferrous metals like stainless steel respectively.

4.    360 degree phase identifying technology adopted todecrease product effect and improve sensitivity in non-ferrous metal detecting.

5.    With high stability: no alarm even being hammered.

6.    The Food industry conveys belt confirms to FDAstandard and can be used to convey unpacked food directly.

7.    Can be integrated into production line or automaticequipment.

Way of alarming: sound and light alarm, stop running automatically.

Performance
Detection style: digital intelligent with LCD display
Language: English, Spanish
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
Alarm: Audible and visual with automatic stop can install with theauto-rejection equipment according customer`s requirement.
Power: AC110V/220V/380V 50/60Hz.



Table of Sensitivity

	25*8cm	30*10cm	40*15cm	50*20cm	50*40cm	60*30cm
FE	≥0.5mm	≥0.8mm	≥0.8mm	≥1.0mm	≥2.0mm	≥1.5mm
SUS	≥1.2mm	≥1.5mm	≥2.0mm	≥2.0mm	≥4.0mm	≥3.0mm

Remark: the above data is empty machine sensitivity. The real sensitivitywill be lower on condition of different products being tested.

---
