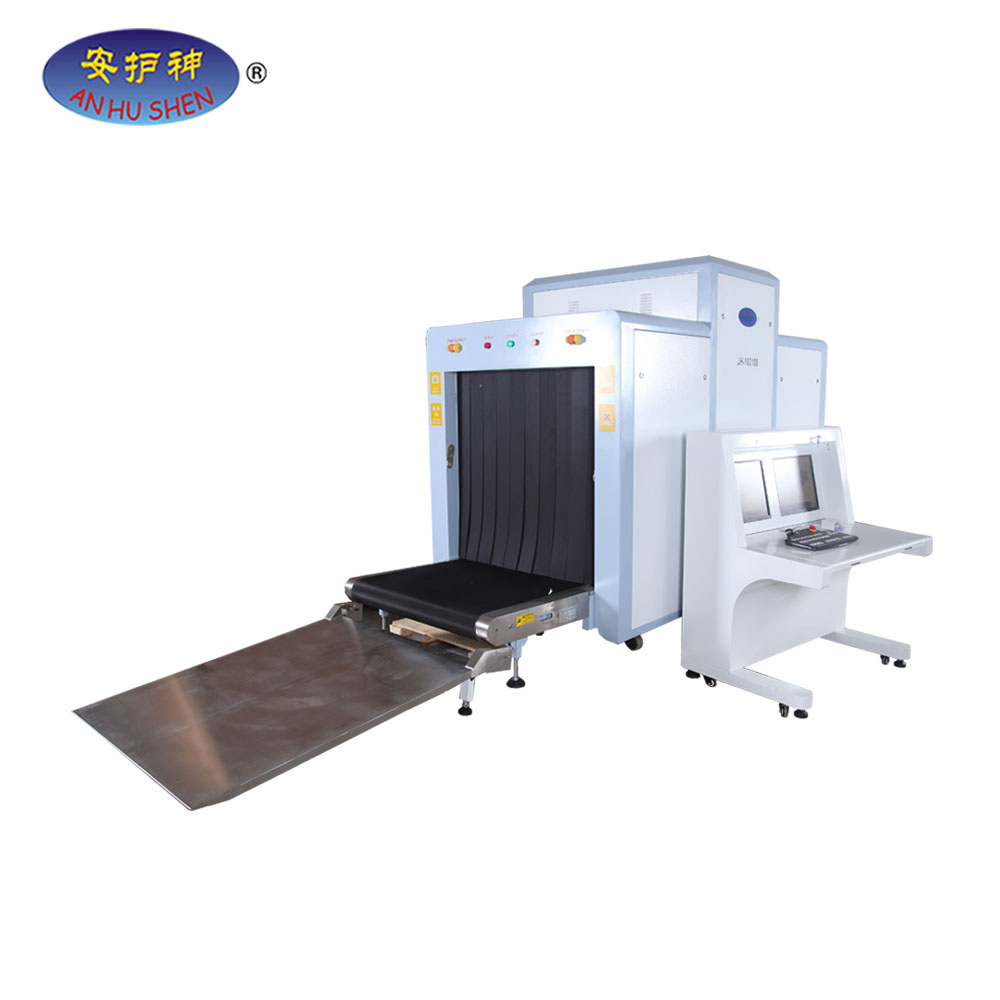

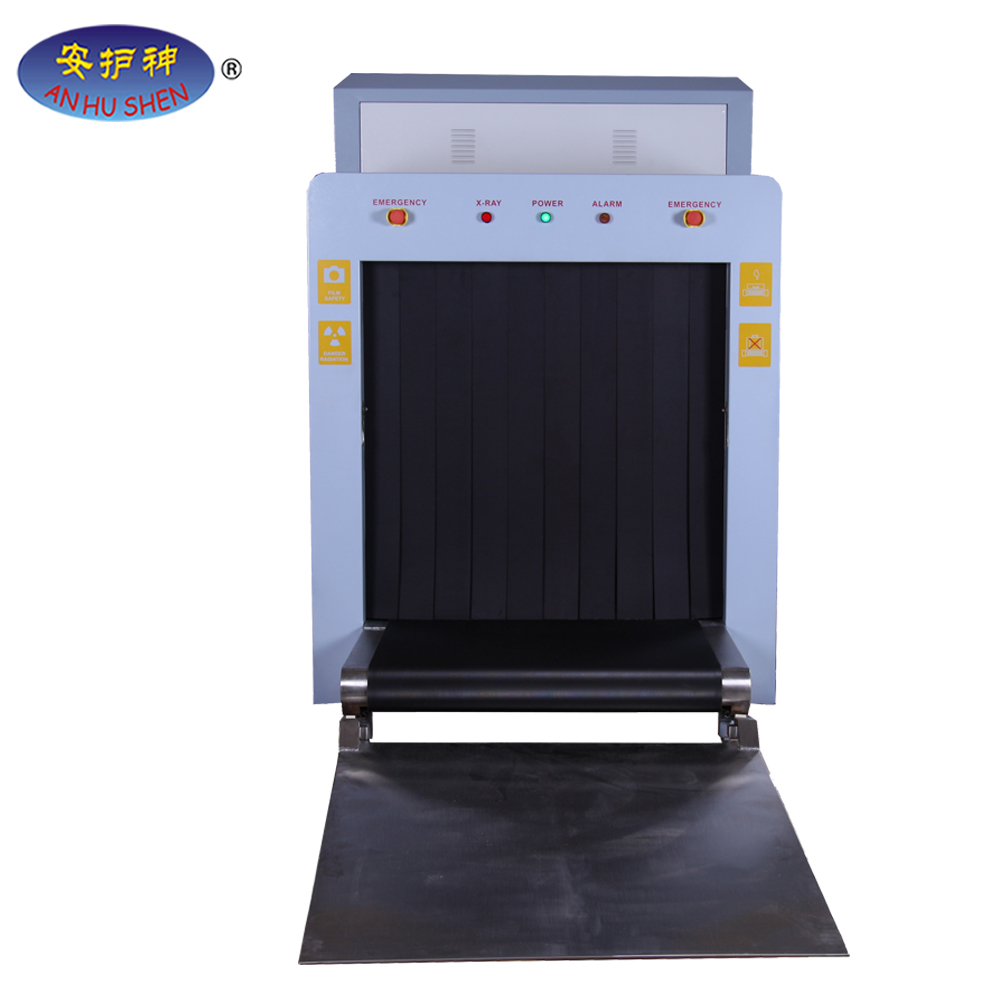

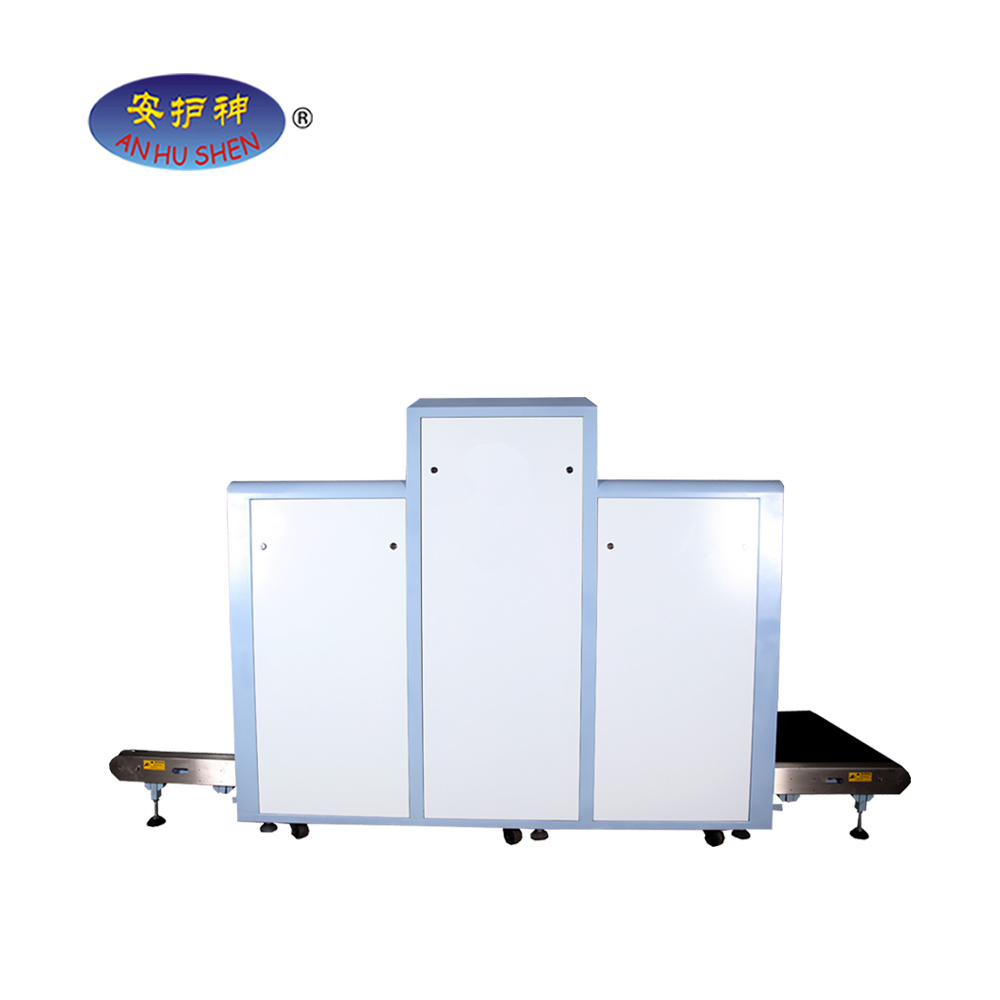

100100 x-ray introscope for seaport
Overview
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AnhuShen
Model Number: JH-100100
Color: siliver
SupplyAbility:50 Set/Sets per Month
Packaging Details: 250*150*190cm Weight:1000KG
Port: Shenzhen
Lead Time :within one week upon receive your payment
FEATURE:
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss.
4. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eye:Could be expediently observing enlargement area.
6. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 1000(W)×1000(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 200 kg
Single inspection dosage :< 1.5μGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation:<0.3μGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100%
IMAGE PERFORMANCE SYSTEM:
X-ray Sensor: L Type Photo-Diode array detector 12bit.

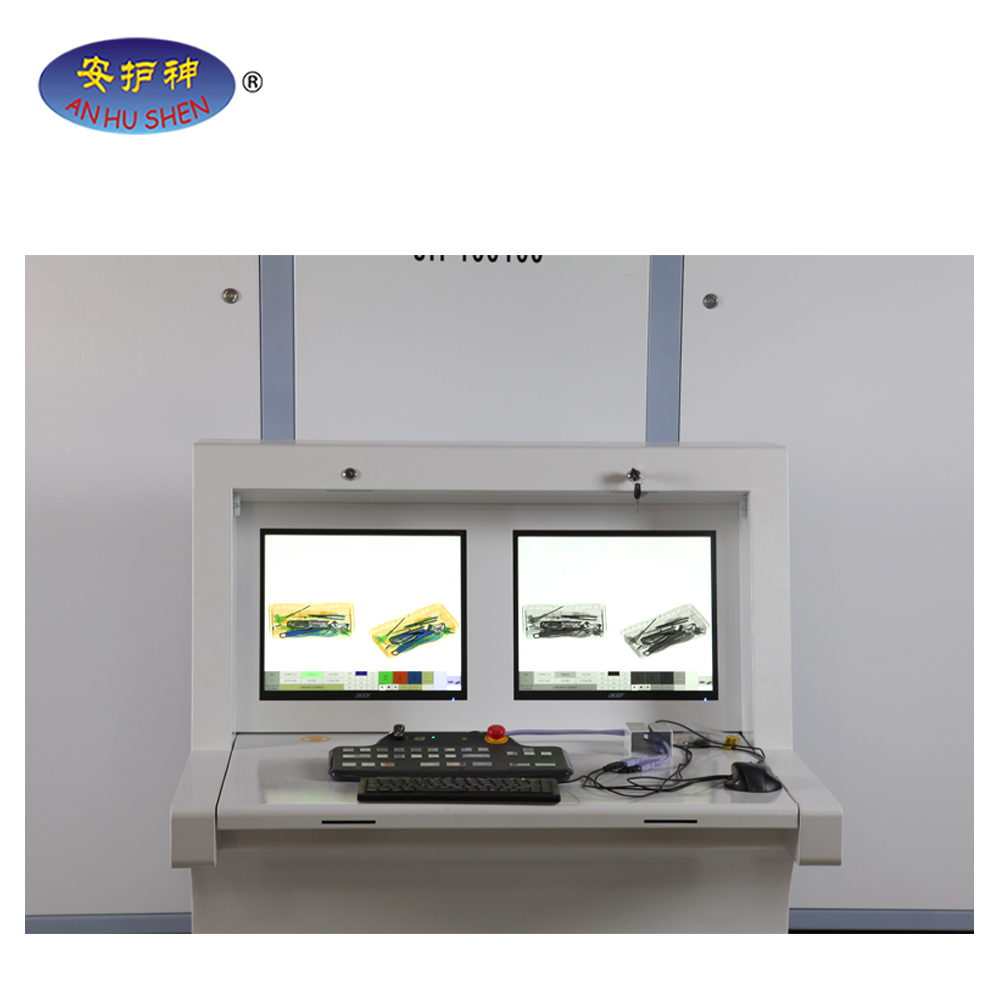

Monitor: High resolution 17inch color LCD display.
Color Quality: 24 Bit real colors.
Edge Enhancement: Object contour edge is more distinct.
Super Image Enhancement: Image detail is more distinct.
High penetrate strength display: Increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly.
Low Penetrate strength Display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly.
Magnifier: Function of partial enlargement
Brightness/Dimming: Increase brightness of image/decrease brightness of image.
Image recurrence: Display previous twenty image and process any one of them.
Image restoration: Restore image to initial status at the time of stopping conveyor
Image storing: Real Time store any image and process it in operation status.
MULTI-ENERGY FUNCTION:
Multi-energy color: Display organic material for orange, display inorganic material for blue, and display mixture for green.
High energy / low energy: switch to display two energy type, high energy stands for metal etc. low energy stands for nonmetallic.
Auxiliay function for drugs & explosives: Help to detect such dangerous material as drugs& explosives etc.
Audible & visible alarm: Give sound and visible signal when conforming to condition.
ETHERNET TCP/IP FUNCTION
OPERATING ENVIRONMENT:
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.5 KW (Max)
Noise: <65DB
