Basic Info

Model No.: EJH-28

Certification: CE, ISO

Automatic Grade: Automatic

Application: Spinning, Drug, Clothing, Other

Form: Conveyor

The Main Material: SUS 304

Additional Info

Packaging: paper carton

Productivity: 50pcs/month

Brand: Anhushen

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 50pcs/month

Certificate: ISO,CE

Port: Shenzhen

Product Description

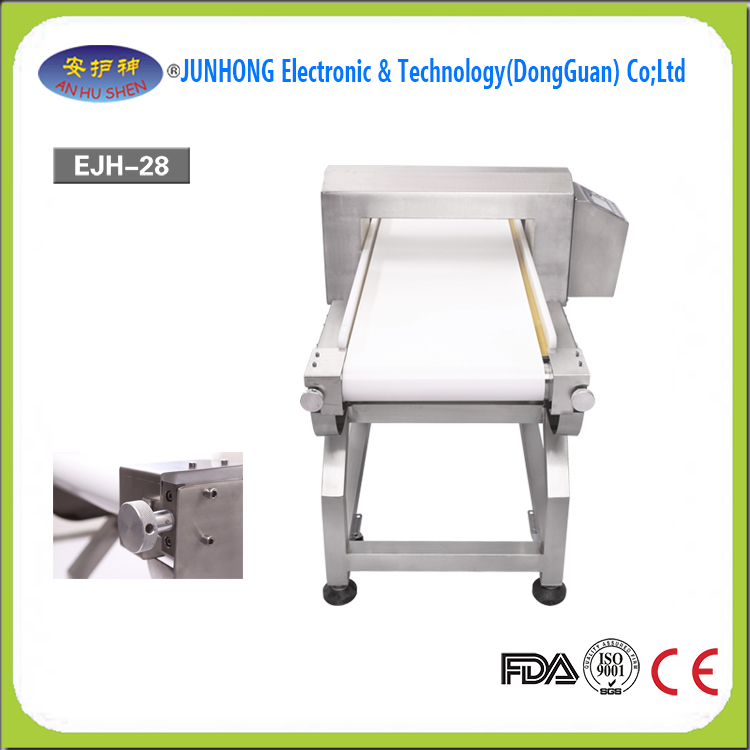

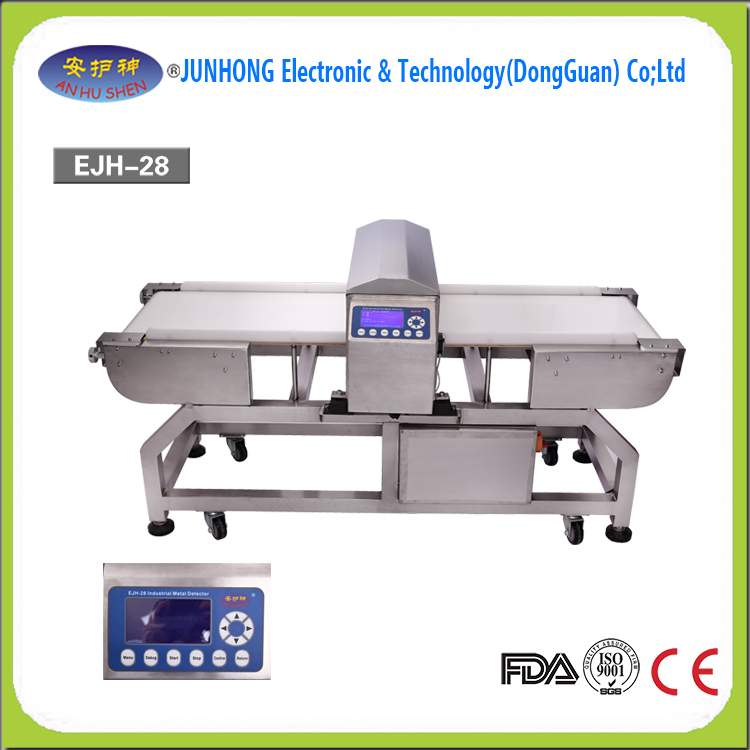

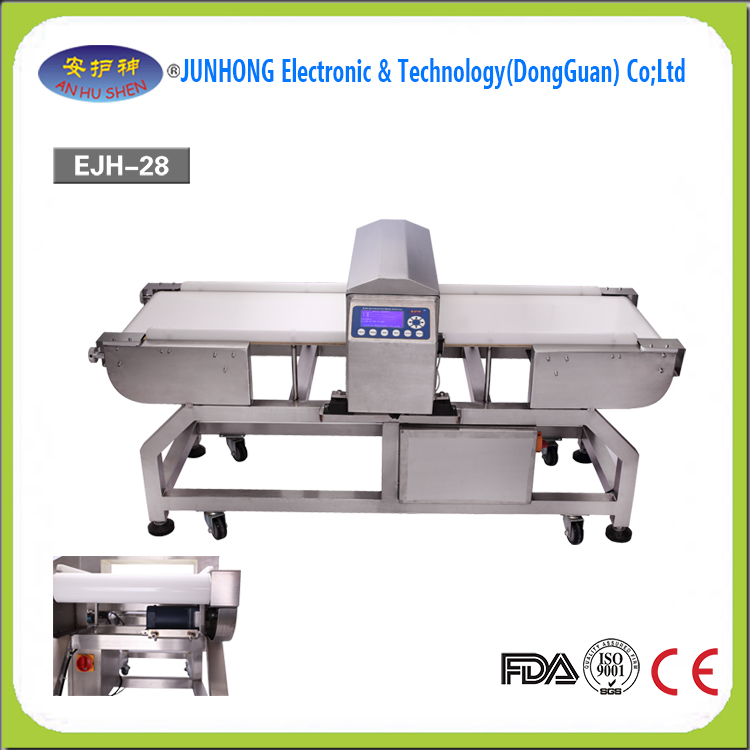

Good Quality Metal Detector with Storage Function

   EJH-28 industrial metal detector is a model of metal detector which is can be used fordetecting all metal in the garment industry. The good quality metal detector for garment has dual-channel and dual-detecting frequency that can detectferrous and non-ferrous metal respectively and Simultaneously. The industrial automatic metal detector alsocan eliminate product`s effect and store up to 20 different kinds of product`sdata so that you don`t need to set it again when detects the same productsafter long time. There are more details of food industry metal detector as below.

Introduction
   Advancedtechnique of electrical & mechanism designs is adopted for EJH seriesdigital intelligent auto-conveying metal detector which have reasonablestructure, beautiful appearance, highly detection sensitivity and stablebehaviors. It is characterized by high detecting sensitivity and stable &reliable performance.
    Comparing with traditional simulationdetector, the function is more complete , the capability is more stable and dependable.It accord with the demand of certification-HACCP,QS, ISO9001, FDA.

Feature

1.    LCD display, DSP digital signal processingtechnology, OSD menu in Chinese and English

2.    Recording and memory function: able to storeup to 20 kinds of different products.

3.    Dual- channel and dual-frequency detecting todetect Fe and non-ferrous metals like stainless steel respectively.

4.    360 degree phase identifying technologyadopted to decrease product effect and improve sensitivity in non-ferrous metaldetecting.

5.    With high stability: no alarm even beinghammered.

6.    The Food industry conveys belt confirms toFDA standard and can be used to convey unpacked food directly.

7.    Can be integrated into production line orautomatic equipment.

Way ofalarming: sound and light alarm, stop running automatically.

Performance
Detection style: digital intelligent with LCD display
Language: English, Spanish
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
Alarm: Audible and visual with automatic stop can install with theauto-rejection equipment according customer`s requirement.
Power: AC110V/220V/380V 50/60Hz.

Table of Sensitivity

	25*8cm	30*10cm	40*15cm	50*20cm	50*40cm	60*30cm
FE	≥0.5mm	≥0.8mm	≥0.8mm	≥1.0mm	≥2.0mm	≥1.5mm
SUS	≥1.2mm	≥1.5mm	≥2.0mm	≥2.0mm	≥4.0mm	≥3.0mm

Remark: the above data is empty machinesensitivity. The real sensitivity will be lower on condition of differentproducts being tested.

---
