Basic Info

Model No.: JH-9024Z

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Product Description

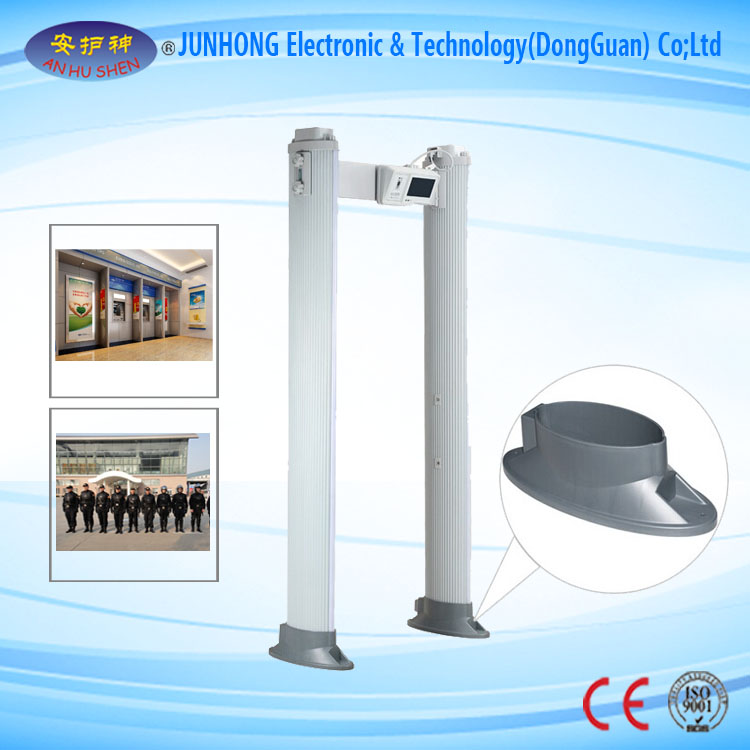

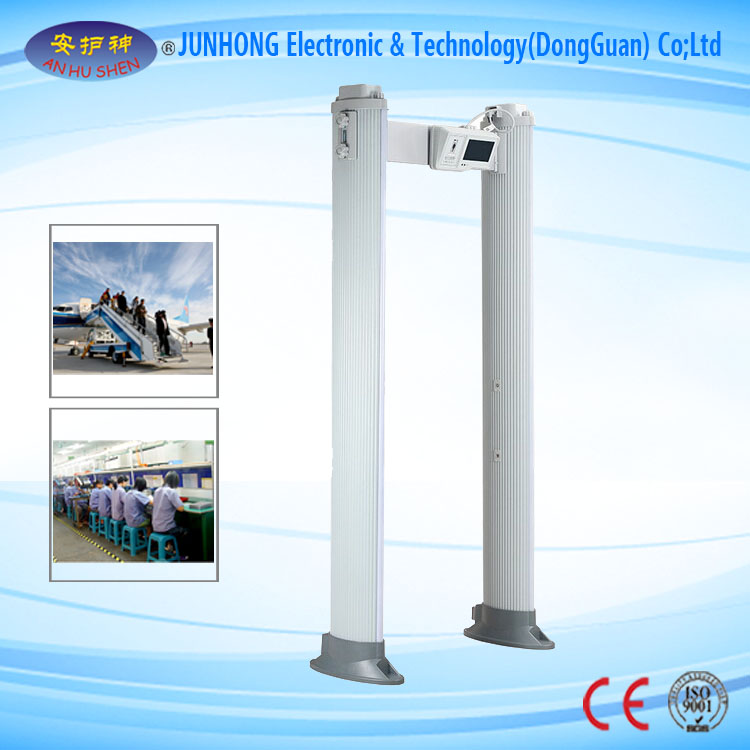

walk through metal detector-Elliptical / Circular structure

     Many favorable circumstances of this superior multi – zone truscan metal detector, for example, flame resistant, against consumption, shockproof; continuous condition meddle monitor. The walk through metal detector is mainly use at airplane terminal, wharf, station thus on. If you need to purchase a decent quality machine with a low value, you can contract us at this moment. There are more details of door frame metal detector as below.

Features of archway metal detector:

★Multi-zone technology: 24 detectionzones, adjust sensitivity of each zone individually.

★ Touch screen: 7-inch HDMI LCDtouch screen, easy to operate and understand.

★ Mobile connection technology:realize mobile APP remote control(optional).

★ IP Grade: IP 55 superiorwaterproof performance.

★ Self calibration once power on.

★ Self diagnostic, the metal detector gate will informthe user when exit the system.

★ Start-stop technology: infrareddevices with automatic start-stop technology.

★ Adjust the alarm soundsarbitrarily.

★ Adjust the working frequencyautomatically or manually.

★ Detection Technology: Evendetection technology, no blind spot.

★ Professional detection process: builtin 60 different detection occasions (providing upgrade services).

★ Working frequency: 100 workingfrequency.

★ Security level: 100 securitylevels.

★ Detection sensitivity of eachzone: From 0 to 255 level.

★ Multi-alarm sounds to choose-tofit different applications.

★ Counter: Record the pass andalarm numbers.

★ Query function: The system hasreal-time information query function.

★ Intelligent Standby: The systemhas intelligent standby operation alerts.

★ Working Standby: 16high-brightness LED indicator on.

★ Detection speed: more than 60people pass and detect in 1 minute.

Technical Standard

Model	JH-8024Z
Detection zones	8/16/24 zones
Exclude appointed metal on one body like the belt,bra,etc.		YES
7-inch LCD capacitive touch screen		YES
Touch-screen operation		YES
Dual high-brightness red and green LED display		YES
External control alarm device port		YES
Secondary development port/upgrade port		YES
Count the number of pass		YES
Count the number of alarm		YES
Query in/out record		Optional
Dual password protection		YES
Multi zone detection,multi alarm		YES
Smart Partition		YES
Smart Partition alarm indicator		YES
Double sides super brightness SMD LED		YES
100 working frequency		YES
Alarm quiet mode		YES
Adjust the alarm sound		YES
Multiple alarm sounds		Optional
Front or rear single side alarm light		Optional
Front sides alarm indicate lights		YES
Four sides led lights/optional		YES
Sensitivity of each zone can be adjusted		YES
Adjust sensitivity:0~255		YES
Security level:1~100		YES
Built-in 60 applications		YES
Back-up battery continues work for 2h/8h optional		Optional
Restore factory settings		YES

Packingand size

External dimensions	2240×670x850mm
Vertical channel size	2000x700mm
Packing size	2400x523x600mm
NW	55KG
GW
Working voltage	AC90V~240V 50/60Hz
Power	12W
Working frequency	1-100
Working environment	-20℃~65℃
Installation environment	(W) 100cm* (L) 200cm (no metal in this range)
Highest standard	Metal size≥6g

---
