- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
AN HU SHEN
- Model Number:
-
EJH-360
- Material:
-
Stainless steel
- Usage:
-
food,plastic,rubber,wood industry etc
- Language:
-
Chinese,English
- Certification:
-
HACCP,QS,ISO9000,CE,FDA
- Motor power:
-
120w
- Net weigt:
-
170kg
- Model:
-
EJH-360 Food metal detectors
- Commodity name:
-
industrial metal detector machine
- all metal detection:
-
yes
- application:
-
production line testing
- SupplyAbility:
- 50 Set/Sets per Month
- Packaging Details
- 180*110(W)*100cm G.W:370kgs
- Port
- Shenzhen
- Lead Time :
- 5~10days after receiving the payment
{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}
Nestle Nido Milk Powder food safety metal detector
welcome to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.
- Designed with a special seal, waterproof and dustproof to IP66
- Conveyor speed of 10 to 40 m / min (optional)
- Alarm: buzzer / warning lights
- Exclusion method :stop / automatic exclusion etc,.
- Exclusion device:push rod type,drop leaf type etc,.
- Power: AC110V/220V/380V 50/60Hz
- Sensitivity(customized)
|
Inspection tunnel size |
25x8cm |
30x10xm |
40x15xm |
50x20cm |
60x30cm |
|
Fe |
≥0.5mm |
≥0.7mm |
≥0.8mm |
≥1.0mm |
≥1.2mm |
|
SUS |
≥1.0mm |
≥1.2mm |
≥1.5mm |
≥2.0mm |
≥2.5mm |
These size and sensitivity can customized per your demands,and the sensitivity based on the international metal bead detected results,each product will have effect when detecting.

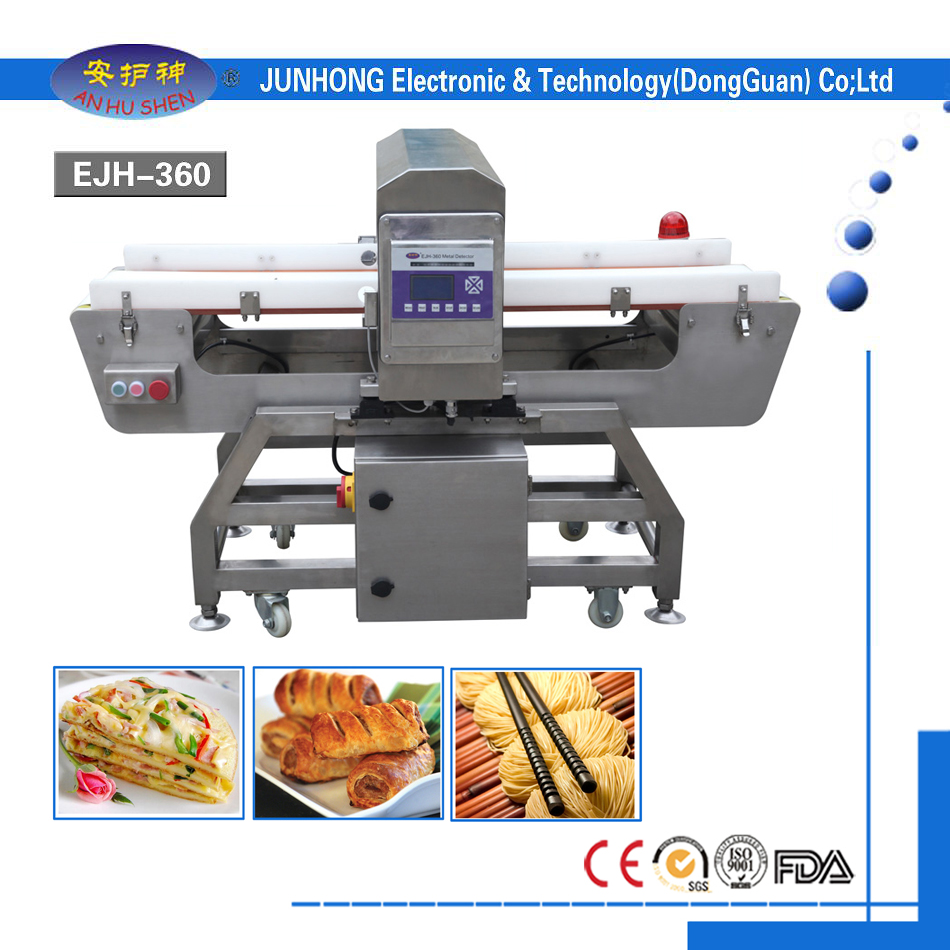

Product Photos

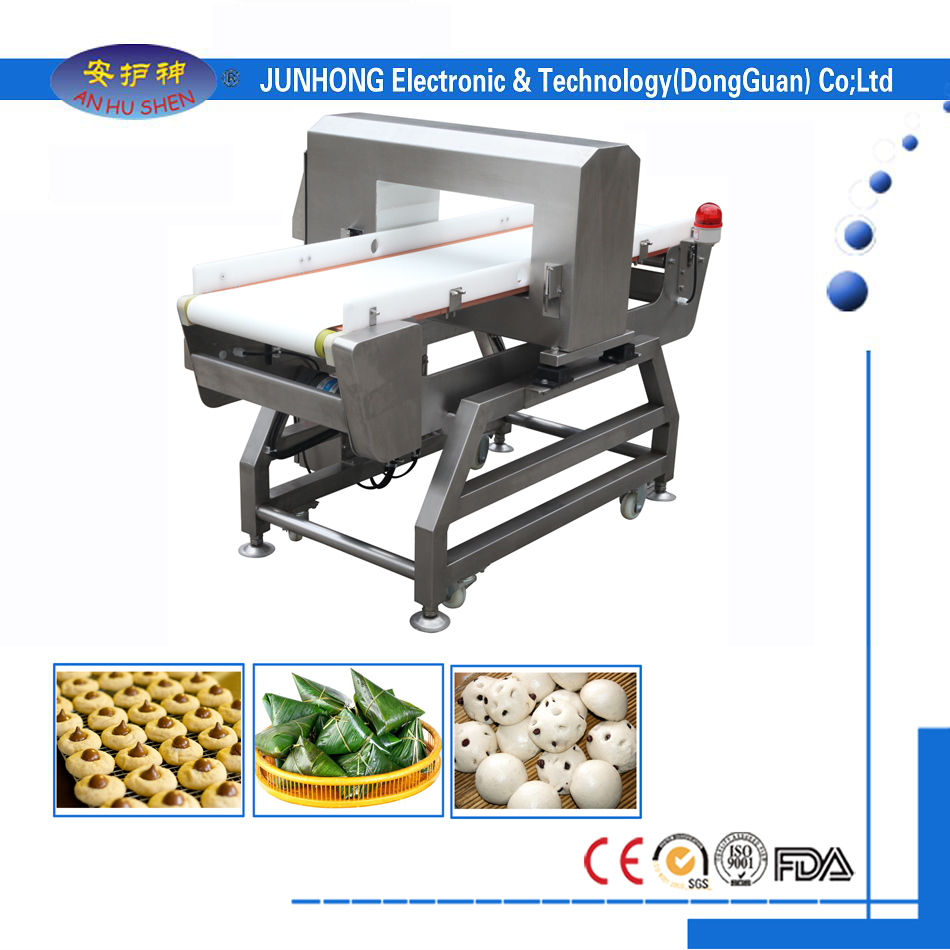

Industrial metal detector system Field of application
EJH-D360 is mainly used for detecting the metal chips inside any food, for instance the meat,sea-food,fishery,ice cream,frozen food,sugar,tea,pharmaceutica,food additive, condiment, health care products and other industrial fields.
Product characteristic
- Main material is stainless steel , anti-erosion and long life span.
- Eliminated the ferrous,non ferrous and stainless steel metal ingredient.
- The conveyor belt is made of nonpoisonous materia.
- Water-Proof, IP66 compliant.
- Good Anti-interference function: reduce product effect signal.
- The performance of the conveyor belt is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
- Store about 100 product data, is suitable for a product line with volatile detecting products.
- Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference,and the equipment won’t miss alarm even when you tap the probe.
- Siemens touch screen and control systems, high speed digital signal processing devices and intelligent algorithms, which greatly improves the sensitivity and stability of the machine.
