Basic Info
Model No.: EJH-W220
Gross Weight: 200kg
Additional Info
Packaging: Plywood carton
Productivity: 100 set/month
Brand: Anhushen
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 100 set/month
Certificate: ISO
Port: Shenzhen
Product Description

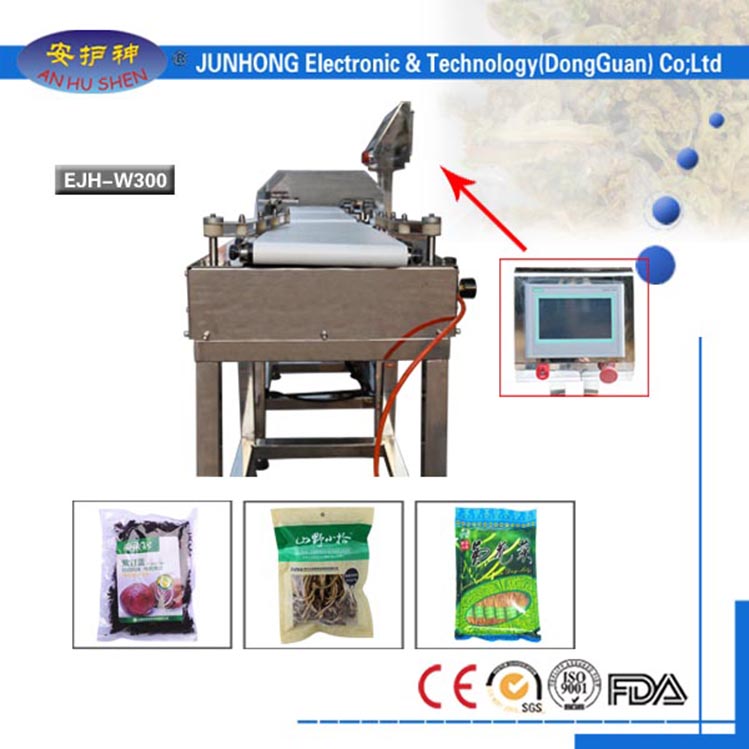

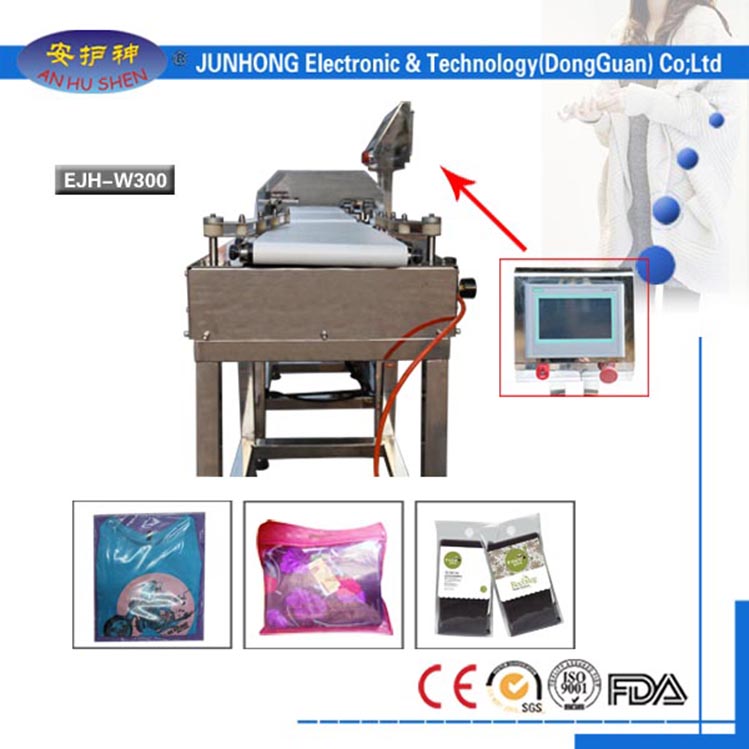

Easy Disassembling Weight Grading Machine
If you want to sort or grade all your productsaccording to products` weight, you can choose a set of check weigher machine to do the job instead of people. The application of weight sorting machine can savetime in a large extent. The conveyor weight sorting machine is optional and you can decide touse the conveyor checkweigher machine or not to use it according to your will. You can see more details of easy disassembling weight grading machine as below.
Features
WEINVIEW PLC and 7″ touch screen, more stability andeasier to operate;
Apply HBM load cell ensure high accuracy and stability(original from Germany);
Solid SUS304 structure ensure stable performance andprecise weighing;
Reject arm, air blast or pneumatic pusher for selecting;
Belt disassembling without tools, which is easier toclean;
Install emergency switch at the size of machine, userfriendly operation;
Arm automatic checkweigher machine show clients clearly for the productionsituation (optional);
Specifications
| Model No. | EJH-W220 |
| Weighing range | 10-1200g |
| Accuracy | ±0.5 |
| Mini Scale | 0.1 |
| Max selecting speed T/min | 210 |
| Conveying speed m/min | 13-96 |
| Detecting length | 60-300mm |
| Detecting width | 30-220mm |
| Detecting height | 10-200mm |
| Weighing belt size(L*W) | 450*220 |
| Remarks | Normal |
| Reject systems | Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type |
| Reject direct | Single direction, separate weight, Multi selecting or others |
| Product feeding methods | production line dispatching, manual operation, vibration feeding or others |
| Main material | Stainless steel 304 |
| Control system | WEINVIEW PLC and 7″ HMI |
| Power | AC220V 50hz ~ 60HZ,0.5KW-1KW |
| Conveying direct | Facing the panel from left to right (customizable) |
| Working environment | Temperature 10~40 ℃,humidity 95% no condensation |
