Basic Info

Model No.: JH-33Z

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Power: 35W

Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

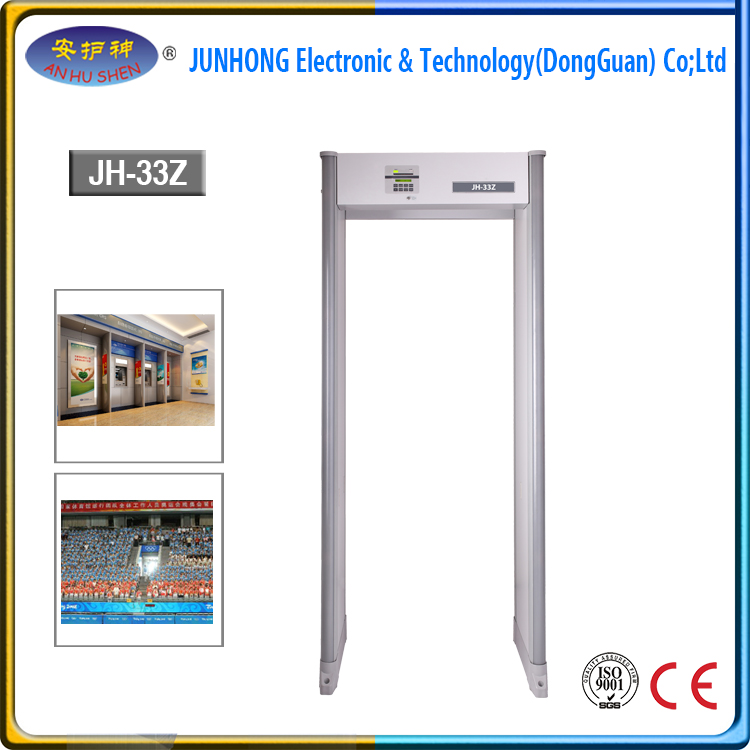

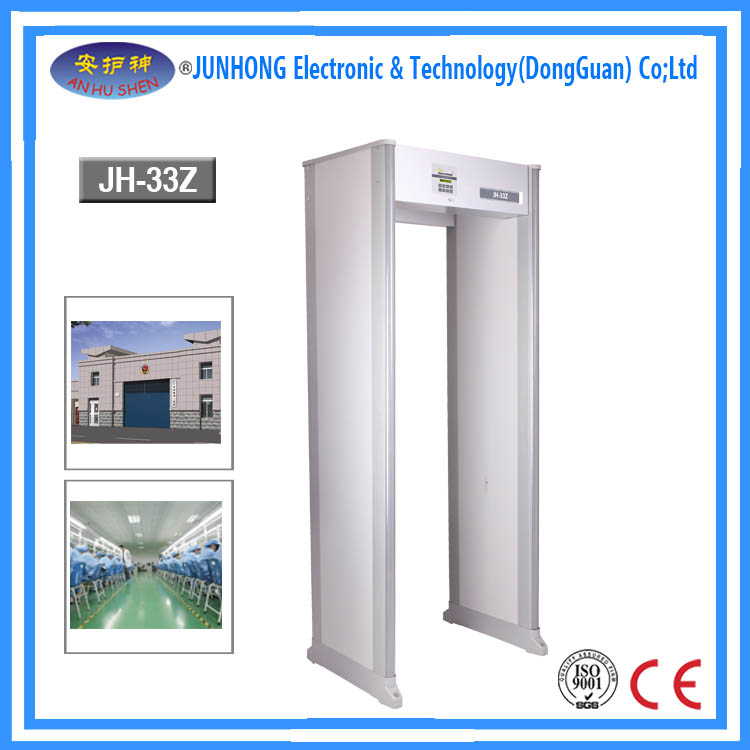

Station High Precision Walk Through Detecting Machine

     JH–33Z station walk through high precision detecting machine is a high performance and beautiful outlooking station detecting machine.There are 33 distinct pinpoint detection zones on the JH-33 walk through metal detector for full target coverage on the left. center and light side of the body form head to toes. There are more details of door frame metal detector as below.

Features

Easy Assembly

JH-33Z archway metal detector,33 ZONE Modular design allows for a quick and easy assembly, only 4 screws to mount it.

Pinpoint Detection Zones

there are 33distinct pinpoint detection zones for full target coverage on the left, centreand right side of the body from head to toe

Traffic Lights

On theentrance of the archway, there traffic light to remind you the detector isready for passenger.

Audible and visual alarms

There isaudible alarm and visual LED lights signal when a target has been detected, thepinpoint lights on the exit gatepost will show the location of  anyoffending object.

 Touchpad controls

The accesscontrol panel is designed for use by authorized personnel with specific, multi-levelsecurity codes. it allows authorized users to change settings.

 Self-test

No battery is required for memory retention. while the unit is inoperation, a self-test is performed , any failures or problems will beimmediately reported on the LCD display



Specifications of door frame archway metal detector

1) Operating temperatures

-20`C to +70`C; humidity:to 95% non-condensing

2) Powerfully automatic 100 to 240VAC,50 or 60hertz,5watts;no rewiring, switching or adjustments required

3) Weatherproofing/foreign object protection standards meet IP55, IEC standard.

4) Traffic counter

Counter count  the number of passenger that have passed through thedetector, the number of alarms and calculates alarm percentage

5) Synchronization

Dual channels and DSP circuit allow several JH-33Z’s to operatesimultaneously in close proximity to another

6)Alarms

Audible tone and volume adjustable. Bright LED visual alarm

7) Target pinpoint lights

Thirty-three distinct zones are displayed with two independent columns ofLED’ located on exit side of the gate



Dimensions

Overall sizes(cm):224(height)x90(width)x58(depth)

Size of alley(cm):224(height)x76(width)x58(depth)

Net Weight: 68kg

Shippingsize(cm): 227x73x22  (side panel ) 80 x 59 x28cm (control box)

Shippingweight: 90kg

---
