Basic Info

Model No.: EJH-360

Certification: CE, ISO

Condition: New

Customized: Customized

Alarm Form: Sound and Light Alarm

The Main Material: SUS 304

Additional Info

Packaging: paper carton

Productivity: 50 pcs/month

Brand: Anhushen

Transportation: Ocean

Place of Origin: China

Supply Ability: 50 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

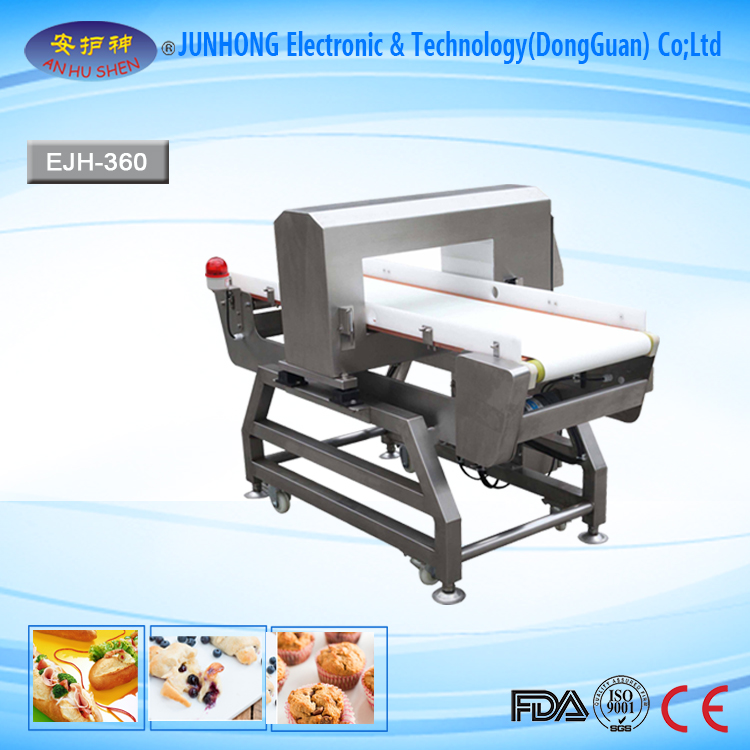

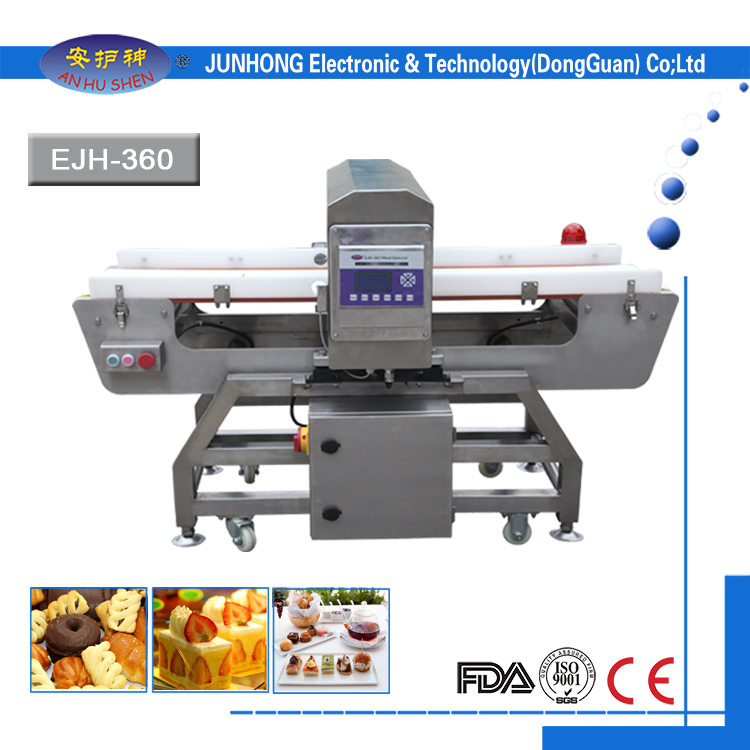

Auto-Learn System Metal Detector with Good Quality

     EJH-360 auto-learn system metal detector is an industrial metal detector which offers maximumsensitivity to all metals. This metal detector machine feature extremely highdetection sensitivity towards ferrous, non –ferrous or stainless steel. The resultis exactly stable of the equipment with maximum speed and precision.  The electronic and mechanism design of the series of EJH food industry metal detector is adopted advanced technique, with reasonablestructure and beautiful shape. The industrial automatic metal detector has a high sensitivity and reliable function.EJH-360 mold injection industrial metal detector has high stability and strong ability eliminate product effect..



Scope of application

 EJH-360is mainly used for detecting the metal chips inside any food, for instance thesea-food, fishery, noodle, frozen food, fruit & dry fruit , sugar, tea,harmaceutical , food additive, condiment, health care products and otherfields. It specially good at detecting meat products and aluminum packedproducts.



Product characteristic

1.      all made of Stainlesssteel , anti-erosion and long life span, The frame is easy to install and disassemble,easy for cleaning.

2.      Multi-frequency detecting,self-analysis function, high sensitivity.

3.      With touch screen and userfriendly interface, convenient for operation.

4.      With self-studying function,can analyze and record the up to 100 products.

5.      dual channel detecting:one channel to detect FE and the other to detect non-ferrous metals.

6.      Strong transport drive, ableto convey products under 25kg. speed adjustable. Speed regulator can be added.

7.      Water-Proof, IP65 compliant

8.      Good Anti-interferencefunction: reduce product effect signal form the frozen food and pickled food.

9.      The performance of thebelt conveyer is complied with the American food sanitation standard (FDA), itcan be used for transporting the unpacked food directly.

10.  Can match the pipelineoperation or automatic control device.

11.  Auto-rejection equipmentcan be installed according customer`s requirement.



Technical parameters:

1. Inspection window size:

Normalheight of inspection window (mm): 200

Normalwidth of inspection window (mm): 400

Themeasures of the inspection window can be designed according customersrequirement.

Inspection window size can be customized.

2.      Electrical source: AC110V/220V/380V50/6 0Hz.

3.      Power: 120W

4.      Alarm: Audible and visualalarm, automatic stop

5.      Normal Size (mm): (mm): 1600(L)X 900(W) X800(H)

6.      Gross Weight: approx 380KgsNet Weight: Around 350kgs

---
