Basic Info

Model No.: JH-8018Z

Certification: ISO, CE

Customized: Non-Customized

Form: Folding

Application: Station, Pier, Prison, Museum

Detection Zones: 18

Additional Info

Packaging: Plywood packing

Productivity: 1000 set pieces

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000 sets/month

Certificate: ISO9001

Port: Shenzhen

Product Description

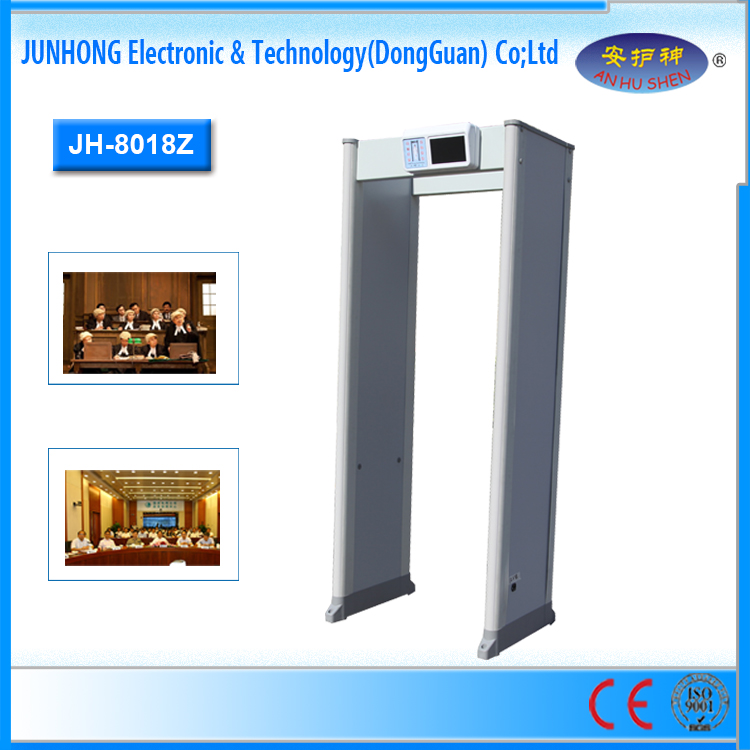

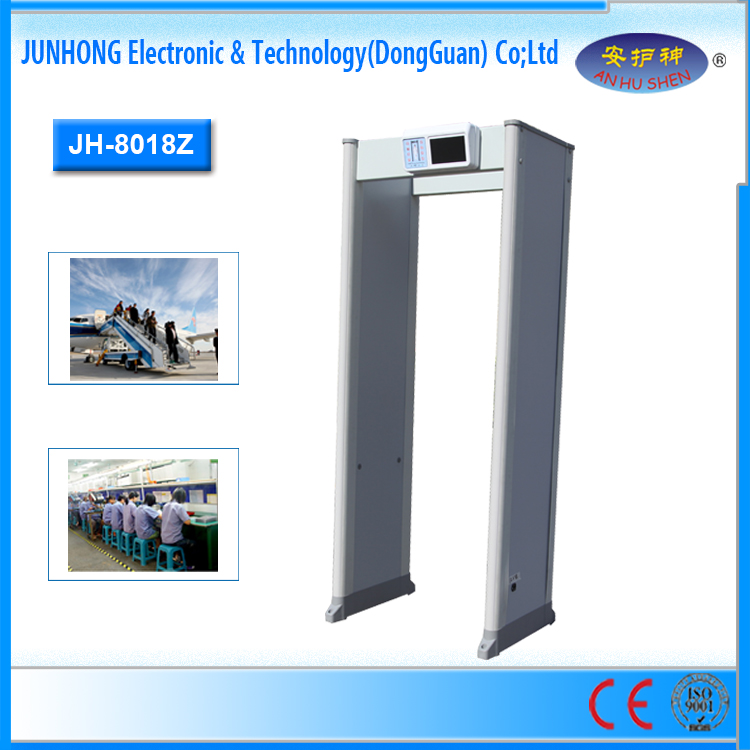

Archway Security Body Scanner Walk Through Metal Detector

      With customizable sensitivity at alllevels, the walk through metal detector 18 Zone is highly perceptive withadvanced discrimination modes, allowing security professionals onsite toquickly identify threats and ignore harmless objects. There are more details of archway metal detector as below.

Advancedfeatures of door frame metal detector

★ Multi-zone technology:18 detection zones,adjust sensitivity of eachzone individually.

★ Touch screen:7-inch HDMILCD touch screen,easy to operate and understand.

★ Mobile connectiontechnology: realize mobile APP remote control(optional).

★ IP Grade: IP 55 superiorwaterproof performance.

★ Self calibration once poweron.

★ Self diagnostic, it willinform the user when exit the system.

★ Start-stop technology: infrareddevices with automatic start-stop technology.

★ Adjust the alarm soundsarbitrarily.

★ Adjust the workingfrequency automatically or manually.

★ Detection Technology: Evendetection technology, no blind spot.

★ Professionaldetection process: built in 50 different detection occasions(providing upgradeservices).

★ Working frequency: 100 workingfrequency.

★ Securitylevel: 50 security levels.

★ Detectionsensitivity of each zone: From 0 to 255 level.

★ Multi-alarm sounds tochoose-to fit different applications.

★ Counter: Record the passand alarm numbers.

★ Query function: The systemhas real-time information query function.

★ Intelligent Standby: Thesystem has intelligent standby operation alerts.

★ Working Standby:16high-brightness LED indicator on.

★ Detection speed: more than60 people pass and detect in 1 minute.

Technical Parameters of metal detector door

Electrical reference EN60950 safety standards	YES
Radiation standards reference    EN50081-1	YES
Anti-interference standard reference    EN50082-1	YES
Strictly enforced Walk Through Metal Detector National standard(GB15210-2003)	YES
ISO9001:2008 certificate	YES
OHSAS18001 health certificate	YES
ISO14001 environment certificate	YES
EU CE FCC ROHS certificates	YES

Technical Standard of airport metal detector

Model	JH-8018Z		JH-8024Z	JH-8033Z
Detection zones	6/12/18 zones		8/16/24 zones	11/22/33 zones
Exclude appointed metal on one body like the belt,bra,etc.		YES
7-inch LCD capacitive touch screen		YES
Touch-screen operation		YES
Mobile APP remote control		Optional
Multiple networking interfaces		YES
External control alarm device port		YES
Secondary development port/upgrade port		YES
Count the number of pass		YES
Count the number of alarm		YES
Query in/out record		Optional
Dual password protection		YES
Multi zone detection,multi alarm		YES
Smart Partition		YES
Smart Partition alarm indicator		YES
Double sides super brightness SMD LED		YES
100 working frequency		YES
Alarm quiet mode		YES
Adjust the alarm sound		YES
Multiple alarm sounds		Optional
Front or rear single side alarm light		Optional
Front sides alarm indicate lights		YES
Four sides led lights/optional		YES
Sensitivity of each zone can be adjusted		YES
Adjust sensitivity:0~355		YES
Security level:1~100		YES
48 detection zones		YES
Built-in 72 applications		YES
Back-up battery continues work for 2h/optional		Optional
Back-up battery continues work for 8h/optional		Optional
Restore factory settings		YES

---
