Basic Info

Model No.: JH-5A

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Power: 35W

Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

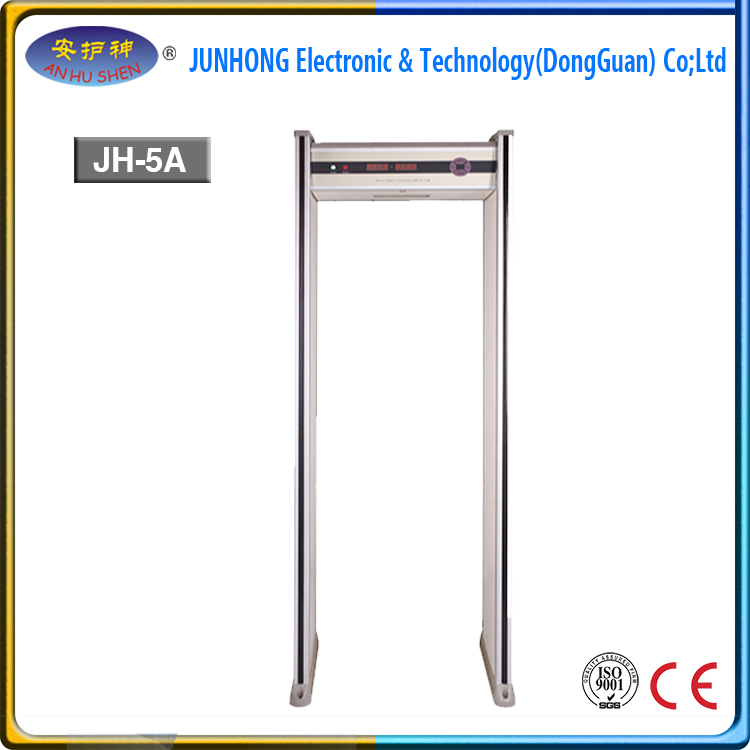

Sound Mode Portable Security Scanner

     JH series portable archway metal detector is adjustable.In the highest volume, articles as small as a paper clip can be detected and indicated. Two or more gates can work simultaneously. The door frame archway metal detector is a sound mode portale security scanner. The walk through metal detector take 20 minutes to install. The portable security scanner is a simple machine for you to choose.

Function and Characteristics

The metal detector door is steady, robust and long service life .easy to beconveyed, mounted and dismounting.
  Easy Assembly: The modular designallows for a quick and very simple assembly, only 8 (eight)screws are requiredfor.
  Overhead Control Unit: LED Display,alarm lights, LED bar graphs and control touch-pads plus all wiring,connections and electronics are integrated into the overhead compartment.
  Accurate location: 6 independent distributingsearch coverage and acousto-optic alarm when target is found. Panel indicatorlight directly displays the alarming area which can exactly indicate thetarget.
  Entry Pacing Lights: Smooth, efficienttraffic flow with easy-to-view, eye-level pacing lights on the entrance side ofeach panel.
  High adjustable sensitivity: JH seriesdoor frame archway metal detector is adjustable. In the highest volume, articles as small asa paper clip can be detected and indicated.
  Complex circuit, infrared installationand computer automatic identification decrease the mistakes and missingdramatically. It can automatically show the alarm frequency and numbers ofpassed people.

AdjustableFlexibility: We can reach the security requirements by adjusting theflexibility. There are 100 flexibility degrees in each detective area.
  Password protection setting: You canchange the system, flexibility and other setting only after typing in the password correctly and only authorized person allowed to change the setting can’tchange the settings.
  Adoption of weak magnetic fieldlaunching technology will not cause harm to heart pacemaker wearer, pregnantwomen, disks and videos.
  Two or more gates can worksimultaneously
  Warranty: Limited 12 months, parts andlabor

Dimensions

Outer frame: 2.2 X0.82 X0.5m ( H X W X Depth)
Inner frame: 2.0X0.7X0.5m  (H X W X Depth)
Electric current: 90-240vAC
Power:35W
Net Weight: about 65kg
Humidity(6) working environment: -30~45℃,
humidity <=95%RH
Standard: GB15210-2003
Optional accessories: Remote control; ABS plastic base for protection

---
