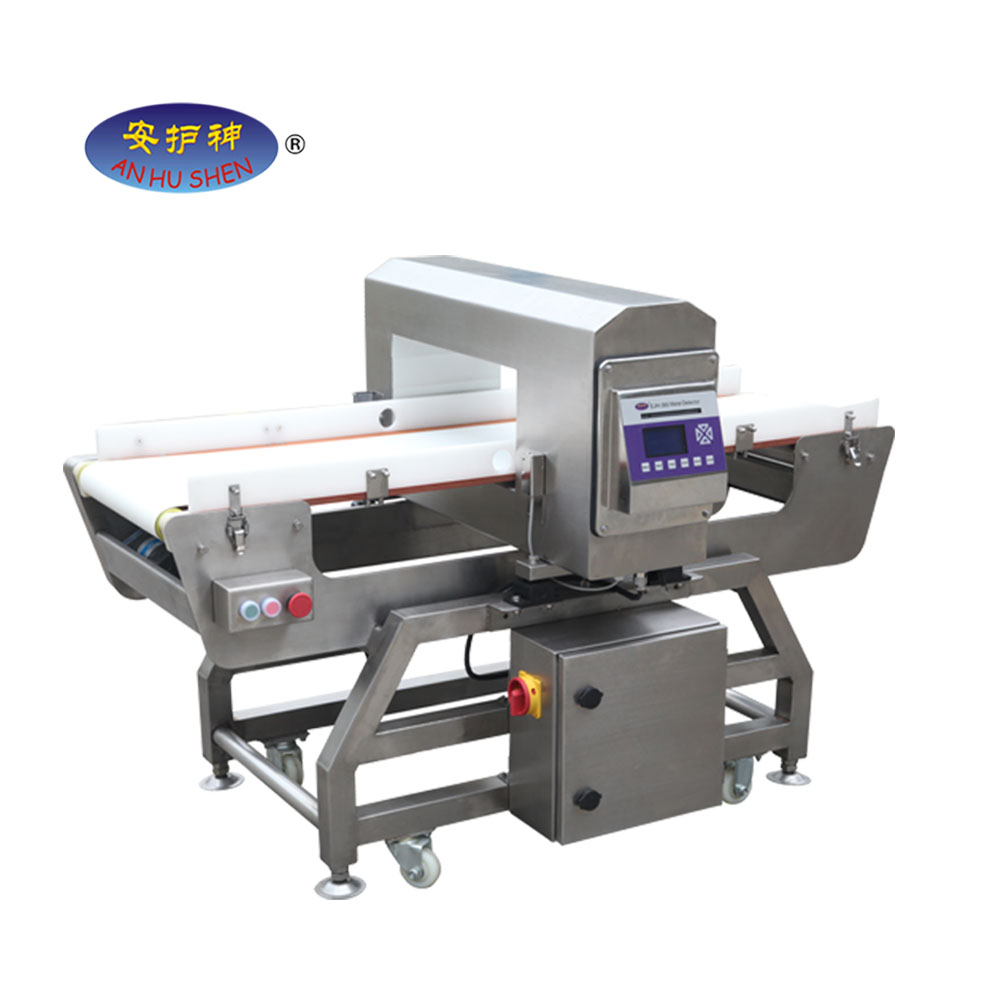

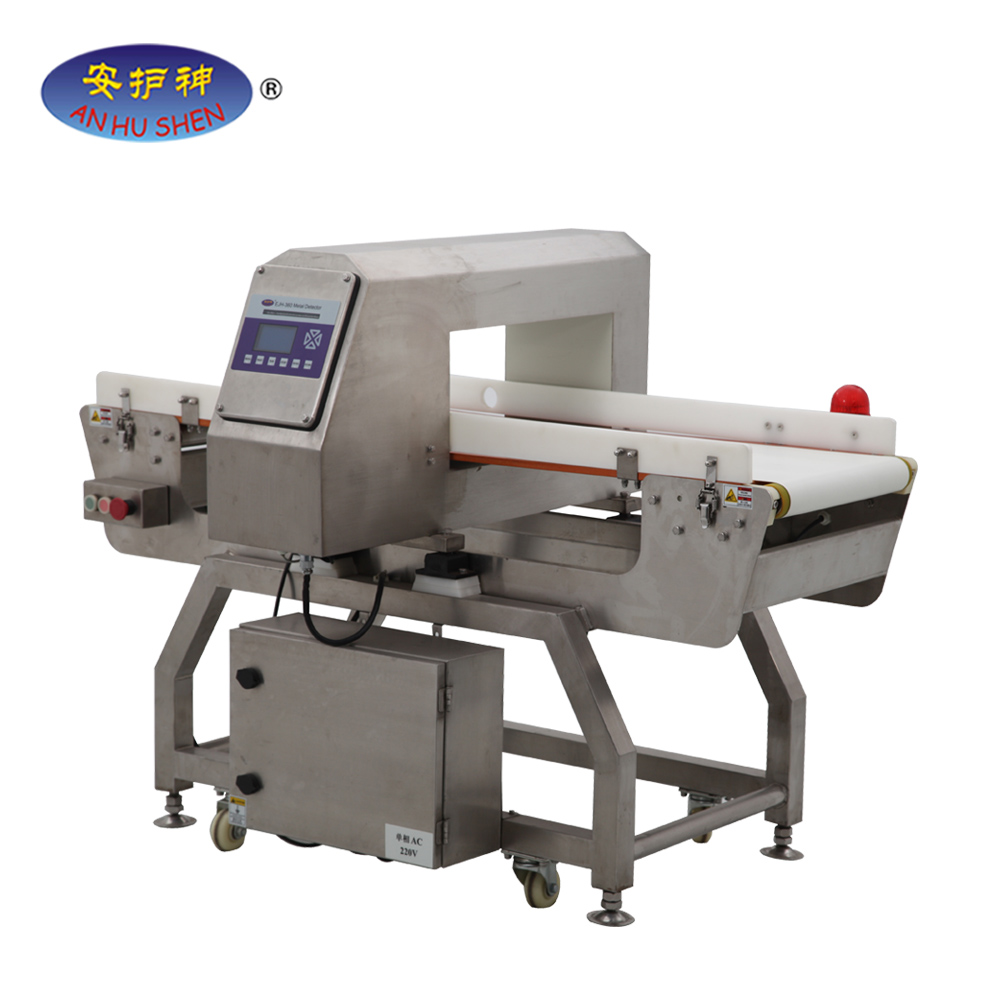

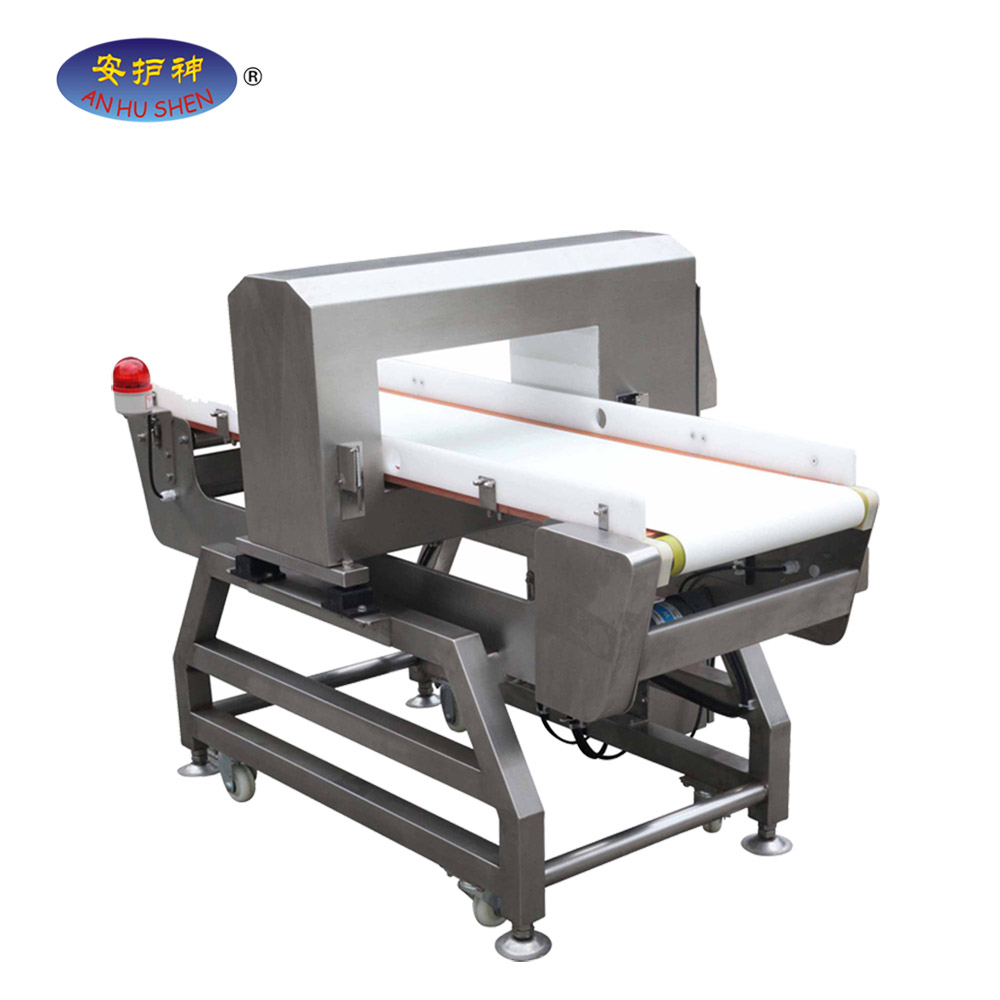

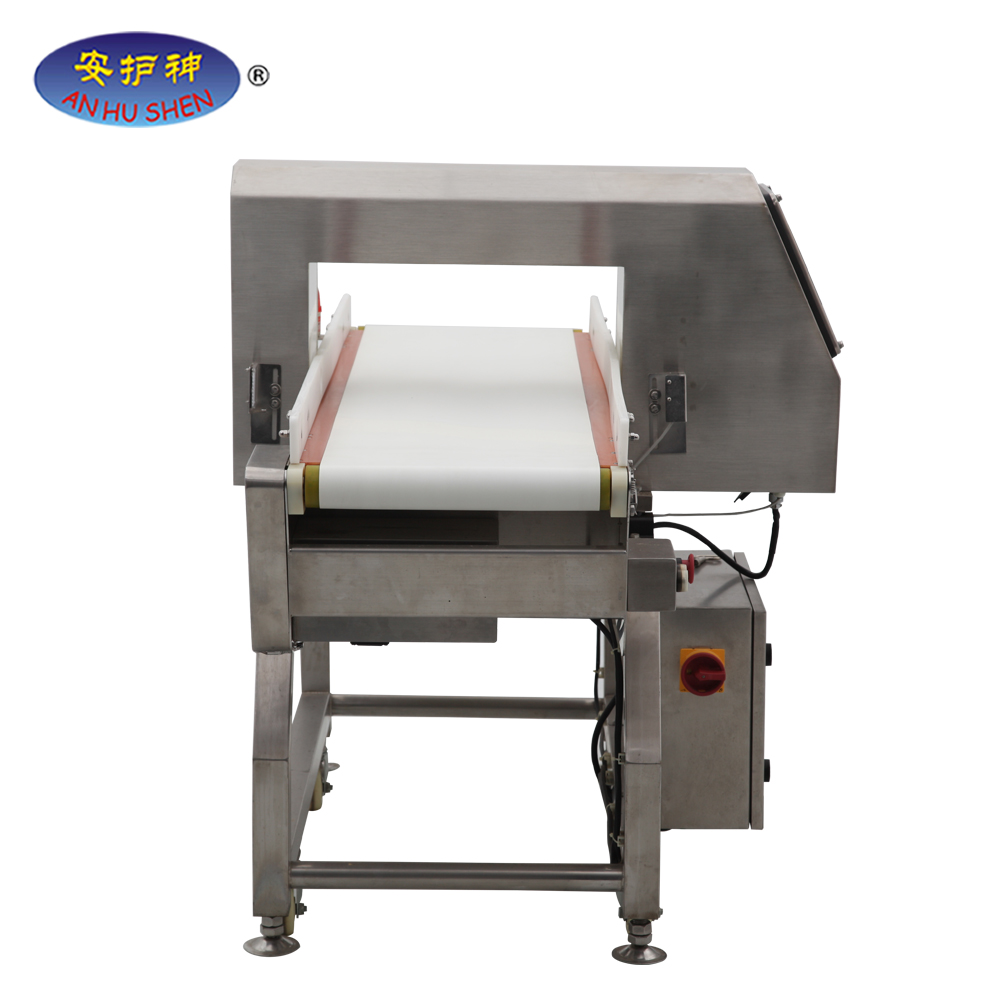

EJH-360 Touch screen conveyor belt metal detector

 metal detector

                    The electronic and mechanism design of the series of EJH auto-conveying metal detector is adopted advanced technique, The design of a succinctly detachable framework is easy for the operators to clean the equipment.

Scope of application

EJH-D360 is mainly used for detecting the metal chips inside any food, for instance the sea-food, fishery, noodle, frozen food, , sugar, tea, pharmaceutical , food additive, condiment, health care products and other fields

Product characteristic

1. all made of Stainless steel , anti-erosion and long life span.

2. The conveyor belt is made of nonpoisonous material

3. Strong transport drive, the loading can be customized.

4. Water-Proof, IP66 compliant

5. Good Anti-interference function, can reduce the products effect signal from the seafood, frozen food and pickled food etc.,

6. The performance of the belt conveyer is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.

7. Can match the pipeline operation or automatic control device.

8. Store about 100 product data, is suitable for a product line with volatile detecting products.

9. Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference. and the equipment won’t miss alarm even when you tap the probe.

10. variety of operating frequency, self-learning function and high sensitivity

Technical parameters:

1. Inspection window size:

Normal height of inspection window (mm): 12

Normal width of inspection window (mm): 40

The measures of the inspection window can be designed according customers requirement.

3:  Electrical source: AC110V/220V/380V 50/6 0Hz.

4:   Power: 120W

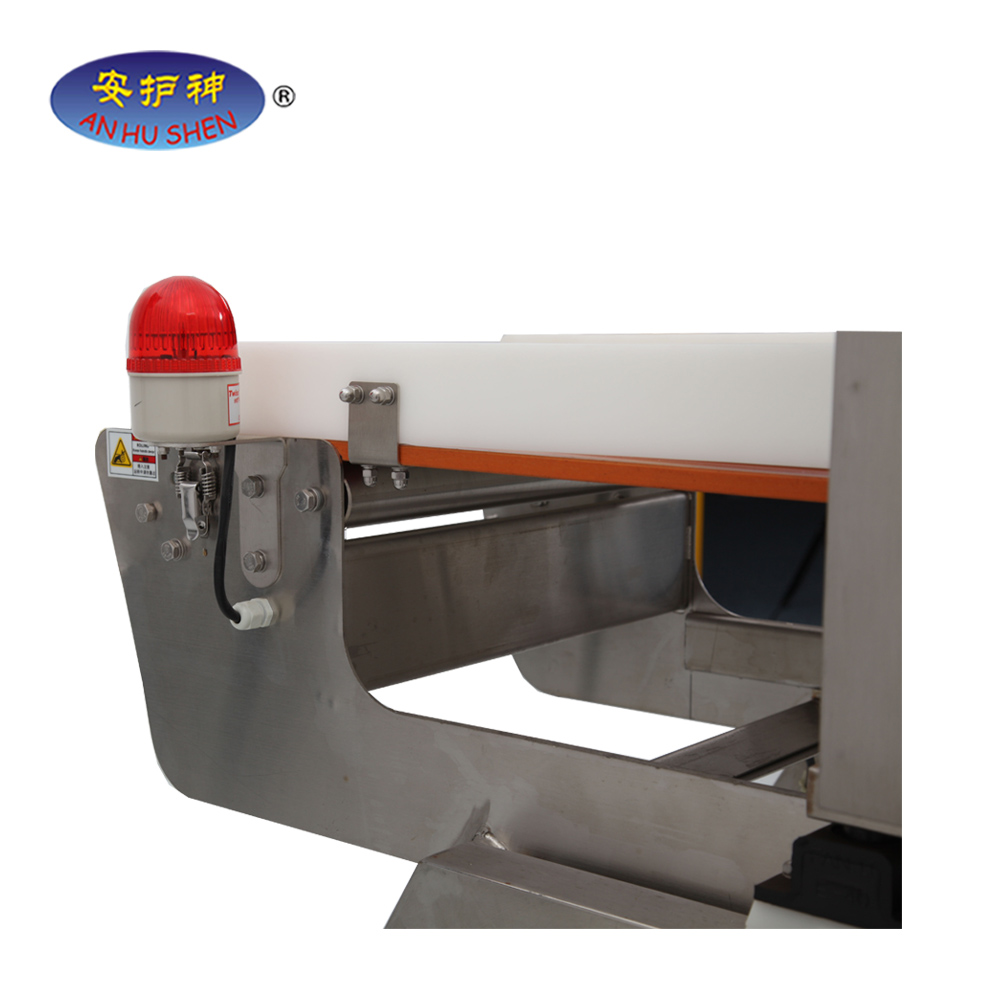

5:  Alarm: Audible and visual alarm, automatic stop

6:  Normal Size (mm): 1740(L) X 900(W) X1030(H)

7:  Gross Weight: approx 350Kgs Net Weight: Around 300kgs

Can be installed with the auto-rejection equipment according customer’s requirement.

Note: The above sensitivity judged by the machine without carrying any products, the actual detection sensitivity has relation with the nature and the temperature of the products etc., The sensitivity would be affected by the type of the products and the working condition.
