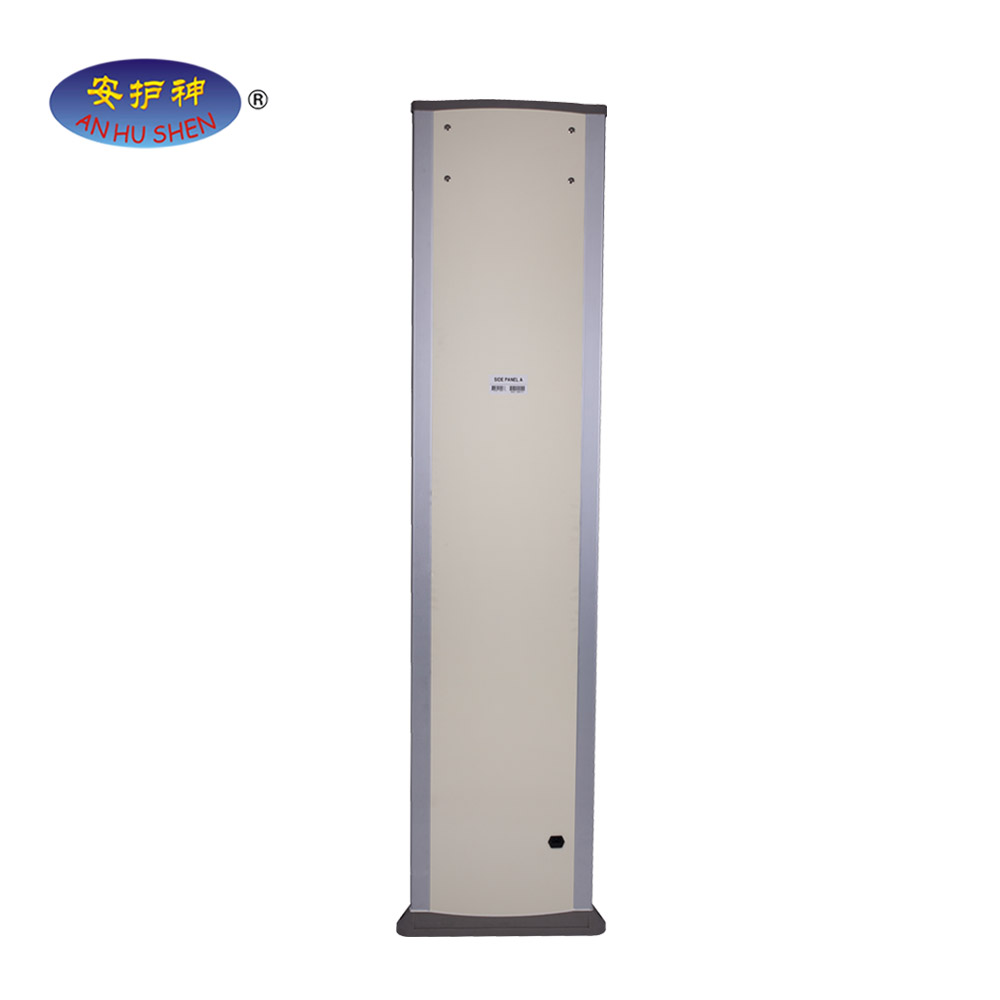

JH-5C Archway metal detector

Walk through metal detector

1.Professional choice for metal detection:

 Adopt the most advanced digital detecting technology in the world , JH series scanner gate is special for detecting  metal and alloy articles concealed in human body. It is highly safe, widely applicable and highly sensitive with a wide detecting range and a good anti-interference capability.  The user can configure the gate according to the size and weight of the article for detection to exclude error alarm for coins, keys, jewelries and belt buckles. It is applicable in the places such as factories, mines, banks and luxuries houses, where expensive metal articles may get lost easily; and places such as airport, customhouse, jails, exhibition halls, where dangerous metal articles are prohibited.

2.Reasons to choose JH walk-through metal detector:

A. Deters crime
B. Improves traffic flow
C. Reduces the number of required searches
D. Reduces workload of security personnel
E. Reduces false alarms
F. Increases Building safety with minimal cost
G. Durable material adoption

This walk-through metal detector can be used in the factory, prison, court, exhibition hall, stadium and entertainment lieu, where the prohibited articles need to be checked for safety.

3.Technical Parameter:

4. Function and characteristics

1,all weather water proof,IP55 standard,durable with alloy & PVC construction.

2,18 detection zones,LCD screen display

LCD display with two version of chinese and english meni.easy to view and operation.

3,255 sensitivity level adjustable  flexibility:we can reach the security requirements by adjusting the flexibility,there are 255  flexibility degrees in each detective area

4,complex circuit,infared installation and computer automatic identification decrease the mistakes and missing dramatically,it can automatically show the alarm frequency and numbers of passed people

5,password protaction setting:you can change the system,flexibility and other setting only after typing in the pass word correctly and only authorized person allowed to change the setting cann’t change the settings

6,adoption of weak magnetic field lauching technology will not cause harm to heart pacemakdeos

7,dual channels

8,two or more gates can work simultaneously

9,network connection ,RS485 port can connect Max32 units gates.it is easy to control and adjust the progress

10.Connect with CCTV.Can easy to check and view the detection status.

11,electric current:90-240vAC,50/60Hz power:35VA

working environment:-30-55′

Dimensions

outer frame :2.2X0.82X0.5m(HxWxDepth)

inner frame:2.0X0.7X0.5m(HxWxDepth)

Net weight :about 70kg G.W:85kg

Warranty Limited 12 months,parts and labor
