Basic Info

Model No.: EJH-W220

Gross Weight: 200kg

Additional Info

Packaging: Plywood carton

Productivity: 100 set/month

Brand: Anhushen

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100 set/month

Certificate: ISO

Port: Shenzhen

Product Description

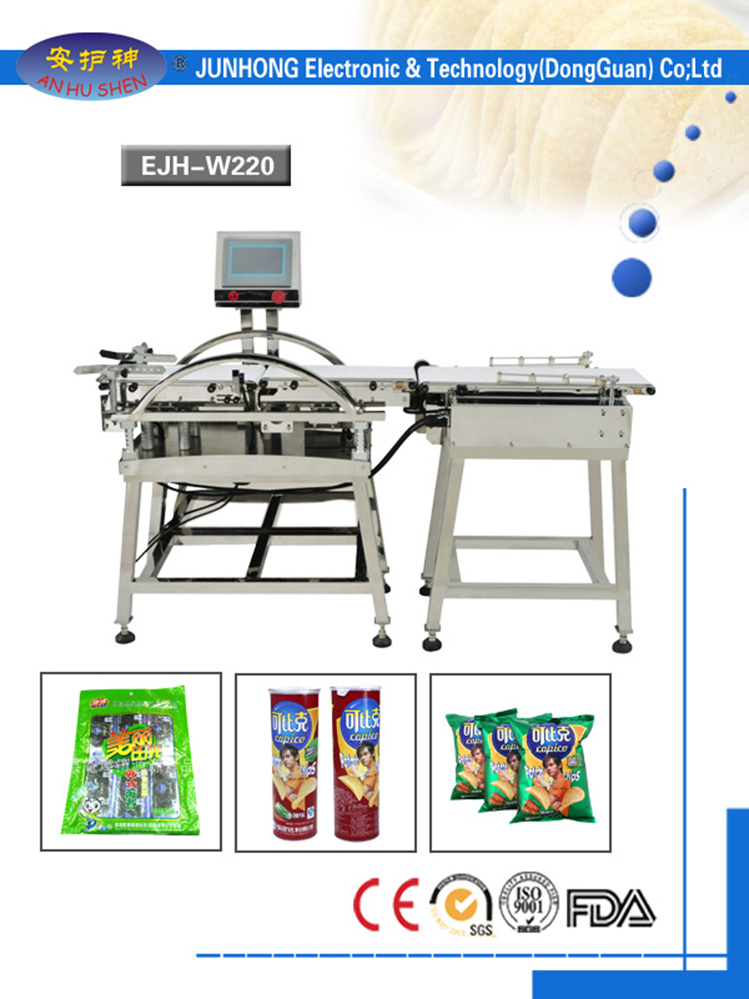

Big Promotion Weight Grading Machine

   The EJH-W220 is a weight grading machine with touchscreen in our company. The best appearance weight grading machine has aprofessional and beautiful appearance. The food weight grading machine also has a 7 inches touch screen tooperate the check weigher machine better.

Features of automatic checkweigher machine

WEINVIEW PLC and 7″ touch screen, more stability andeasier to operate;

Apply HBM load cell ensure high accuracy and stability(original from Germany);

Solid SUS304 structure ensure stable performance andprecise weighing;

Reject arm, air blast or pneumatic pusher for selecting;

Belt disassembling without tools, which is easier toclean;

Install emergency switch at the size of weight sorting mahcine, userfriendly operation;

Arm device show clients clearly for the productionsituation (optional);



Specifications

Model No.	EJH-W220
Weighing range	10-1200g
Accuracy	±0.5
Mini Scale	0.1
Max selecting speed T/min	210
Conveying speed m/min	13-96
Detecting length	60-300mm
Detecting width	30-220mm
Detecting height	10-200mm
Weighing belt size(L*W)	450*220
Remarks	Normal
Reject systems	Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type
Reject direct	Single direction, separate weight, Multi selecting or others
Product feeding methods	production line dispatching, manual operation, vibration feeding or others
Main material	Stainless steel 304
Control system	WEINVIEW PLC and 7″ HMI
Power	AC220V 50hz ~ 60HZ,0.5KW-1KW
Conveying direct	Facing the panel from left to right (customizable)
Working environment	Temperature 10~40 ℃,humidity 95% no condensation

---
