Basic Info
Model No.: EJH-W220
Gross Weight: 200kg
Additional Info
Packaging: Plywood carton
Productivity: 100 set/month
Brand: Anhushen
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 100 set/month
Certificate: ISO
Port: Shenzhen
Product Description

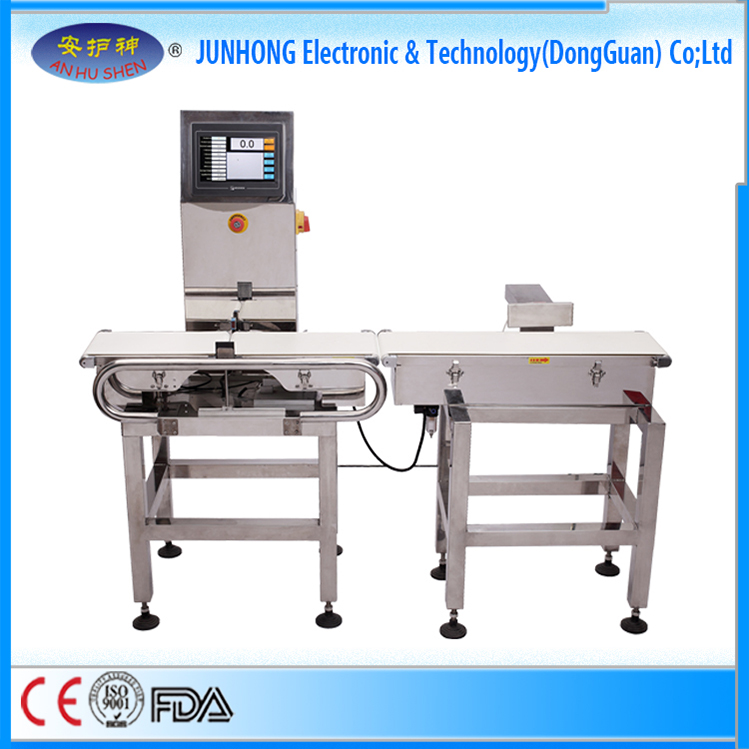

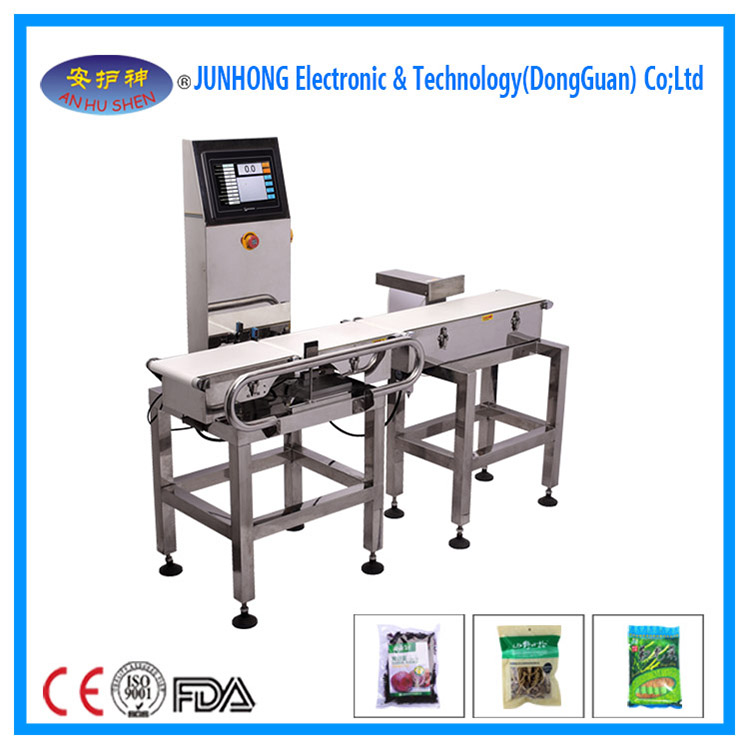

Hot Sale Weight Grading Machine
The EJH-W220 hot sale weight grading machine can beused to weigh their weight and grade different weight according to their weightin the meantime. The food bags checkweigher can be connected with pipelineproduction and rejection system to reject all unqualified products. The cheap price weight grading machine is cheap. There are more details of food package conveyor checker weigher as below.
Features of check weigher
WEINVIEW PLC and 7″ touch screen, more stability andeasier to operate;
Apply HBM load cell ensure high accuracy and stability(original from Germany);
Solid SUS304 structure ensure stable performance andprecise weighing;
Reject arm, air blast or pneumatic pusher for selecting;
Belt disassembling without tools, which is easier toclean;
Install emergency switch at the size of machine, userfriendly operation;
Arm automatic industry checkweigher show clients clearly for the productionsituation (optional);
Specifications
| Model No. | EJH-W220 |
| Weighing range | 10-1200g |
| Accuracy | ±0.5 |
| Mini Scale | 0.1 |
| Max selecting speed T/min | 210 |
| Conveying speed m/min | 13-96 |
| Detecting length | 60-300mm |
| Detecting width | 30-220mm |
| Detecting height | 10-200mm |
| Weighing belt size(L*W) | 450*220 |
| Remarks | Normal |
| Reject systems | Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type |
| Reject direct | Single direction, separate weight, Multi selecting or others |
| Product feeding methods | production line dispatching, manual operation, vibration feeding or others |
| Main material | Stainless steel 304 |
| Control system | WEINVIEW PLC and 7″ HMI |
| Power | AC220V 50hz ~ 60HZ,0.5KW-1KW |
| Conveying direct | Facing the panel from left to right (customizable) |
| Working environment | Temperature 10~40 ℃,humidity 95% no condensation |
