Basic Info

Model No.: EJH-W220

Accuracy: ＜±0.5g

Check Weight Range: 1-999g

Application Area: Food & Beverage Industry

Type: Automatic-weight Classifier

Touch Screen: Touch Screen

Sorting Method: Pusher-bar

Gross Weight: 200kg

Additional Info

Packaging: Plywood carton

Productivity: 100set/month

Brand: Anhushen

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100set/month

Certificate: CE,ISO 9001

Port: Shenzhen

Product Description

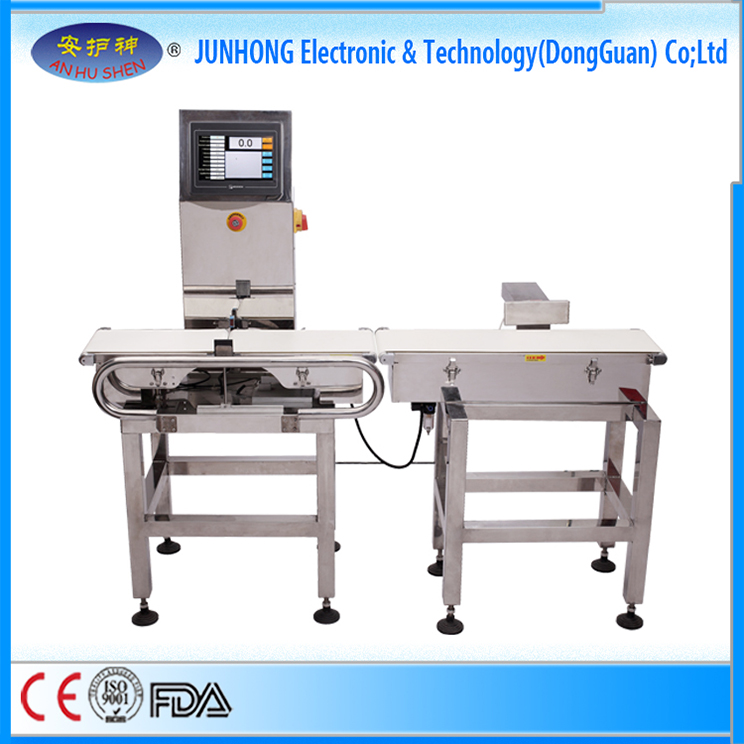

Wide Application Snack Check Weigher Machine

    The EJH-W220 check weigher machine is the wide application checking weigher in our company. The check weigher machine can beused in many different industries and factories. The machine also can be usedto checking weight of various food, over or less weight will be rejected out,qualified products will be passed to next equipment.

Features

WEINVIEW PLC and 7″ touch screen,more stability and easier to operate;

Apply HBM load cell ensure high accuracyand stability (original from Germany);

Solid SUS304 structure ensure stableperformance and precise weighing;

Reject arm, air blast or pneumaticpusher for selecting;

Belt disassembling without tools, whichis easier to clean;

Install emergency switch at the size ofmachine, user friendly operation;

Arm device show clients clearly for theproduction situation (optional);



Specifications

Model No.	EJH-W220
Weighing range	10-1200g
Accuracy	±0.5
Mini Scale	0.1
Max selecting speed T/min	210
Conveying speed m/min	13-96
Detecting length	60-300mm
Detecting width	30-220mm
Detecting height	10-200mm
Weighing belt size(L*W)	450*220
Remarks	Normal
Reject systems	Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type
Reject direct	Single direction, separate weight, Multi selecting or others
Product feeding methods	production line dispatching, manual operation, vibration feeding or others
Main material	Stainless steel 304
Control system	WEINVIEW PLC and 7″ HMI
Power	AC220V 50hz ~ 60HZ,0.5KW-1KW
Conveying direct	Facing the panel from left to right (customizable)
Working environment	Temperature 10~40 ℃,humidity 95% no condensation

---
