Basic Info

Model No.: JH-9024Z

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Pier, Prison

Power: 12W

Additional Info

Packaging: paper carton

Productivity: 200pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200pcs/month

Certificate: ISO,CE

Port: Shenzhen

Product Description

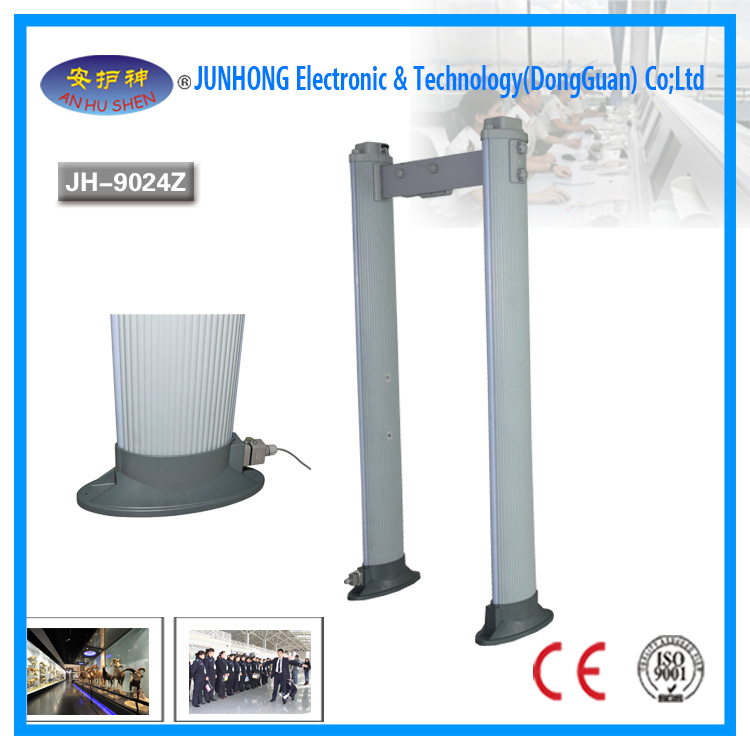

Sensivity Adjustable Metal Detector with Counting Function

   JH-9024Z archway metal detector is the newest machine of 24 detecting zones. With 3 differentdetecting zones optional, you can choose 8.16.24 detecting zones according toyour different application occasions. The walk through door frame metal detector can exclude appointed objects that youdon`t want to be detected in one body like the belt, bra, etc. There areadvantages of walk through airport metal detector as below.

Advanced features of metal detector door:

★ Multi-zone technology: 18/24/33/45/48 detection zones, adjust sensitivity of each zone individually.

★ Touch screen: 7-inch HDMI LCD touch screen, easy to operate and understand.

★ Mobile connection technology: realize mobile APP remote control(optional).

★ IP Grade: IP 55 superior waterproof performance.

★ Self calibration once power on.

★ self diagnostic, the portable archway metal detector will inform the user when exit the system.

★ Start-stop technology: infrared devices with automatic start-stop technology.

★ Adjust the alarm sounds arbitrarily.

★ Adjust the working frequency automatically or manually.

★ Detection Technology: Even detection technology, optional blind spot.

★ Professional detection process: built in 72 different detection occasions(providing upgrade services).

★ Working frequency: 100 working frequency.

★ Security level: 100 security levels.

★ Detection sensitivity of each zone: From 0 to 355 level.

★ Multi-alarm sounds to choose-to fit different applications.

★ Counter: Record the pass and alarm numbers.

★ Query function: The system has real-time information query function.

★ Intelligent Standby: The system has intelligent standby operation alerts.

★ Working Standby: 16 high-brightness LED indicator on.

★ Detection speed: more than 60 people pass and detect in 1 minute.

Technical Standard

Model	JH-8024Z
Detection zones	8/16/24 zones
Exclude appointed metal on one body like the belt,bra,etc.		YES
7-inch LCD capacitive touch screen		YES
Touch-screen operation		YES
Dual high-brightness red and green LED display		YES
External control alarm device port		YES
Secondary development port/upgrade port		YES
Count the number of pass		YES
Count the number of alarm		YES
Query in/out record		Optional
Dual password protection		YES
Multi zone detection,multi alarm		YES
Smart Partition		YES
Smart Partition alarm indicator		YES
Double sides super brightness SMD LED		YES
100 working frequency		YES
Alarm quiet mode		YES
Adjust the alarm sound		YES
Multiple alarm sounds		Optional
Front or rear single side alarm light		Optional
Front sides alarm indicate lights		YES
Four sides led lights/optional		YES
Sensitivity of each zone can be adjusted		YES
Adjust sensitivity:0~255		YES
Security level:1~100		YES
Built-in 60 applications		YES
Back-up battery continues work for 2h/8h optional		Optional
Restore factory settings		YES

Packing and size

External dimensions	2240×670x850mm
Vertical channel size	2000x700mm
Packing size	2400x523x600mm
NW	55KG
GW
Working voltage	AC90V~240V 50/60Hz
Power	12W
Working frequency	1-100
Working environment	-20℃~65℃
Installation environment	(W) 100cm* (L) 200cm (no metal in this range)
Highest standard	Metal size≥6g

---
