- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
Anhushen
- Model Number:
-
EJH-XR-4016
- Power:
-
Electronic
- Usage:
-
product safety inspection
- material:
-
SUS304
- SupplyAbility:
- 500 Set/Sets per Year
- Packaging Details
- Strong plywood carton
- Port
- Shenzhen
- Lead Time :
- within 15 days after get the payment
{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

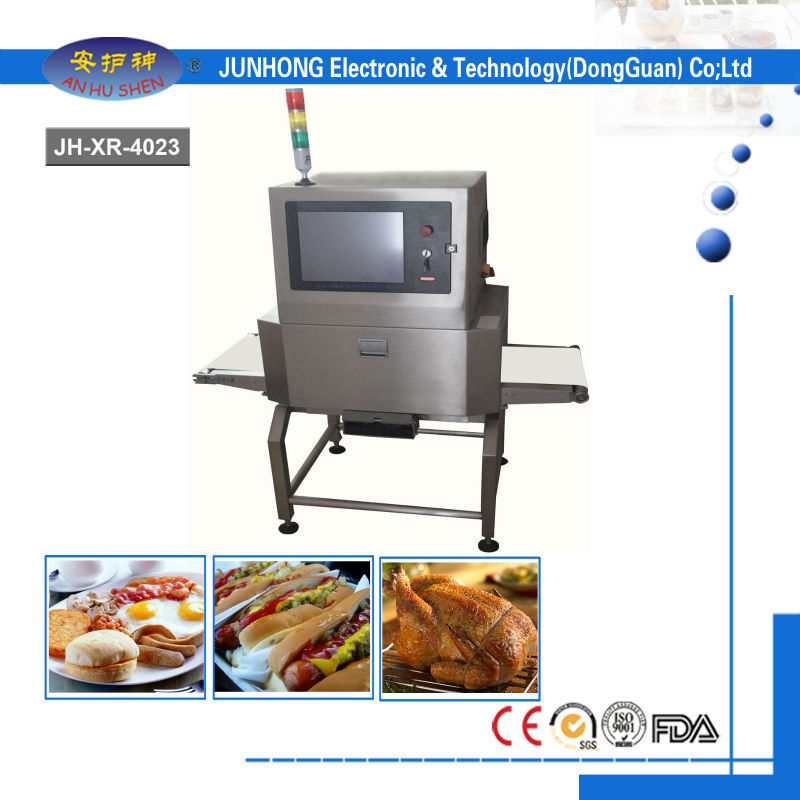

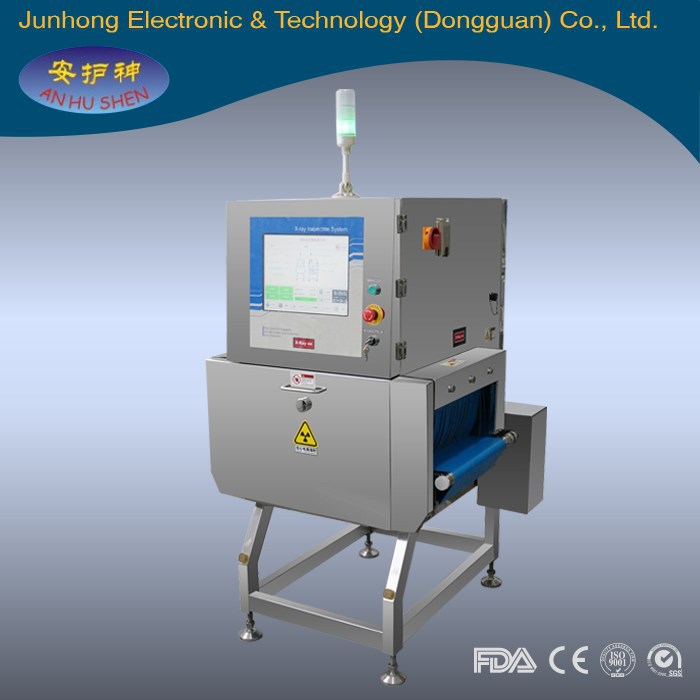

2018 New industrial X-Ray scanners machine for food inspectrion
welcome to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.
Detection description:
1. Machine Detection Principle:
First acquire an products transmission images by x-ray irradiation, then judge if any foreign objects is contained in the product image, by using image processing technique
2. Detection Range of Products:
All kinds of products without limit to packaging, packaging materials, includes items such as plastic wrap, aluminum foil packaging, glass jars, metal cans and bulk products
3.Foreign objects detection range:
Denser materials, including metal and non-metal, such as stainless steel, iron, ceramics, glasses, stones, bones, hard rubber, hard plastic and so on. (Specific circumstances may vary on different product)
|
Best Inspection Ability |
SUS Ball Φ 0.3mm, SUS Wire Φ 0.2*2mm Glasses ball: Φ 1.5 mm; ceramic ballΦ 1.5 mm |
|
|
X-ray source |
Max: 80W/80kV |
|
|
Detection size |
Max Detection height |
160mm |
|
Max detection width |
400mm |
|
|
Conveying devices |
Conveyor Speed |
5 – 50 m/min |
|
Conveyor belt wifht |
420mm |
|
|
Height of detection window |
165mm |
|
|
Max load weight |
20Kg |
|
|
Display Screen |
Full-color TFT 15" Touch Screen |
|
|
Operation system |
Windows XP Professional |
|
|
Operation type |
Touch screen operation |
|
|
data interface |
LAN port, USB port |
|
|
product management |
Complete product log
|
|
|
parameter setting |
Self-learning setting/manual setting selectable |
|
|
image management |
Images Save/print/analysis
|
|
|
power |
AC 220V |
|
|
machine material |
SUS304 |
|
|
cleasning |
Easy to clean |
|
|
temperature control |
Pfannenberg industrial air conditioner (normal temperature control, automatic adjustment) |
|
|
working temperature |
0-40℃ |
|
|
working humidity |
30-90%, No condensation (moisture control: dehumidifiers)
|
|
|
X-ray leakage |
< 1μSv/hour |
|
|
Protection type |
Removable protective curtain |
|
Remark:the above data is empty-loaded machine sensitivity. The real sensitivity will be lower on condition of different products being tested.
International famous brand electrical configuration (if better design, please let us know)
|
S/n |
usage |
name |
unit |
Brand or manufacturer |
|
1 |
Generating x-ray |
X-ray emitter |
set |
V J Technologies |
|
2 |
Receiving X-ray |
X-ray receiver |
set |
DT Detection Technology |
|
3 |
Data processing |
Industrial control computer |
set |
Advantech(Taiwan) |
|
4 |
Temperature and humidity control |
Industrial air conditioner |
set |
Pfannenberg |
|
5 |
Belt drive |
AC Gear motor |
set |
ORIENTAL MOTOR |
|
6 |
Drive control |
AC Variable-frequency Drive |
set |
YASKAWA Electric Corporation |
|
7 |
Electronic Protection |
Air switch |
piece |
LS Leading Solution |
|
8 |
Electronic Protection |
DC contactors |
piece |
Leading Solution |
|
9 |
Electronic Protection |
Air circuit breaker |
piece |
Schneider Electric |
|
10 |
Electrical monitoring |
Limit swit |
piece |
OMRON Industrial Automation |
|
11 |
electrical control |
Relay modules group |
set |
OMRON Industrial Automation |
Absolute Advantage
-
Full detection range:
Full range of foreign objects detection, including metal, non-metal in unlimited types of products.
Metal packed, Nonmetal packaged and canned products can be inspected.
-
extremely high sensitivity:
High sensitivity up to 0.5mm mm diameter stainless steel ball, 0.3mm*2mm stainless steel wire,
1.5mm diameter ceramic balls and 1.5mm mm diameter glass ball,
-
easy to operate: 15-inch touch-screen display, easy interactive software comes with self-learning function, without requiring users to manually set parameters, reducing user’s operation difficulty; detection images can be saved automatically for future analysis and tracking.
-
Auto-shielding: To meet product detection demand, shielding zones are available for certain zones which may reduce detection sensitivity in order not to lower overall sensitivity. Take aluminum buckles on both ends of sausage as an example: aluminum buckles can be shielded and not considered as foreign object in detecting, thus sensitivity of the left area won’t be affected.
-
High adaptability: the machine is equipped with industrial air conditioner; detection is not affected by environment temperature and humidity.
-
Security protection: the x ray leakage meets the standards of U.S FDA and ,European CE, it is less than 1μSv/hour; both hardware and software are designed with a complete security measures. Machine condition is being monitored all the time; leakage accident by mal-operation can be prevented. For example, in case the door is opened, the machine will automatically and immediately stop X-ray irradiation.
-
Quality assurance: the main components such as x ray source, x ray detector, motor, frequency transformer etc all are imported from well-known oversea brands to ensure the overall performance and service life of the machine.
-
Quality Certification: CE certification, exported to Europe, North America, Africa and other regions.
| X-ray | Walk through metal detector | Under ground metal detector |
| Hand held and underground metal detector | Food metal detector | Others |
Any of your kind inquiry would be replied within 12 hours.
Well-trained and experienced sales staffs will reply all your concerns in fluent English.
OEM services are available with us, our professional designer would make your private idea into being.
Protection of your sales area, ideas of design and all your private information.
Delivery by air mail or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!
