Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: AN HU SHEN Model Number: EJH-360 Material: Stainless steel Usage: food,plastic,rubber,wood industry etc Language: Chinese,English Certification: ...

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Place of Origin:: Guangdong, China (Mainland)

Brand Name:: AN HU SHEN

Model Number:: EJH-360

Material:: Stainless steel

Usage:: food,plastic,rubber,wood industry etc

Language:: Chinese,English

Certification:: HACCP,QS,ISO9000,CE,FDA

Motor power:: 120w

Net weigt:: 170kg

Model:: EJH-360 Food metal detectors

Commodity name:: industrial metal detector machine

all metal detection:: yes

application:: production line testing

SupplyAbility

SupplyAbility:: 50 Set/Sets per Month

Packaging & Delivery

Packaging Details: 180*110(W)*100cm G.W:370kgs

Port: Shenzhen

Lead Time :: 5~10days after receiving the payment

{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

.richtext [data-maya] { width: 750px; font-size:14px; }

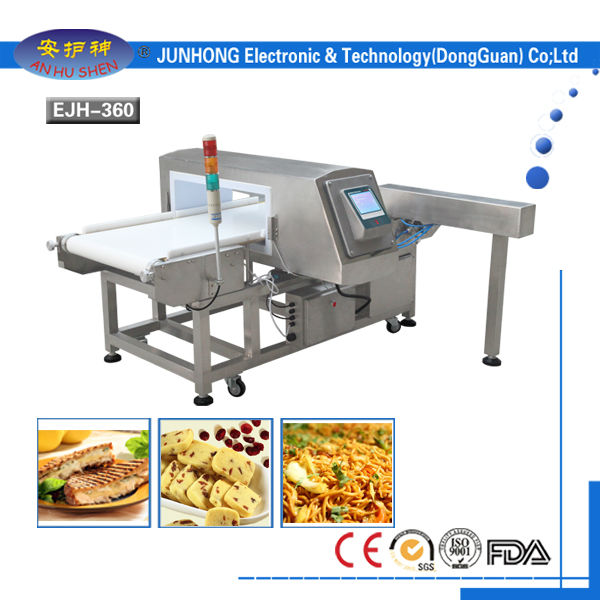

Galin Instant Noodles food safety metal detector

Product Description

Industrial metal detector system Parameters

Designed with a special seal, waterproof and dustproof to IP66
Conveyor speed of 10 to 40 m / min (optional)
Alarm: buzzer / warning lights
Exclusion method :stop / automatic exclusion etc,.
Exclusion device:push rod type,drop leaf type etc,.
Power: AC110V/220V/380V 50/60Hz
Sensitivity(customized)

Inspection tunnel size	25x8cm	30x10xm	40x15xm	50x20cm	60x30cm
Fe	≥0.5mm	≥0.7mm	≥0.8mm	≥1.0mm	≥1.2mm
SUS	≥1.0mm	≥1.2mm	≥1.5mm	≥2.0mm	≥2.5mm

These size and sensitivity can customized per your demands,and the sensitivity based on the international metal bead detected results,each product will have effect when detecting.

Industrial metal detector system Field of application

EJH-D360 is mainly used for detecting the metal chips inside any food, for instance the meat,sea-food,fishery,ice cream,frozen food,sugar,tea,pharmaceutica,food additive, condiment, health care products and other industrial fields.

Product characteristic

Main material is stainless steel , anti-erosion and long life span.
Eliminated the ferrous,non ferrous and stainless steel metal ingredient.
The conveyor belt is made of nonpoisonous materia.
Water-Proof, IP66 compliant.
Good Anti-interference function: reduce product effect signal.
The performance of the conveyor belt is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
Store about 100 product data, is suitable for a product line with volatile detecting products.
Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference,and the equipment won’t miss alarm even when you tap the probe.
Siemens touch screen and control systems, high speed digital signal processing devices and intelligent algorithms, which greatly improves the sensitivity and stability of the machine.
