Model No.: EJH-XR-4023

Portable: Other

Form: Portable

Application: Industrial

Type: Conveying X-ray Detector

Certification: CE, ISO

Customized: Customized

Alarm Form: Audible Alarm

Stainlesss Steel Housing: Universal Testing Machine

Additional Info

Packaging: Standard Export Wooden Case

Productivity: 20

Brand: ANHUSHEN

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 5 pieces per month

Certificate: CE ISO9001

Port: SHENZHEN

Product Description

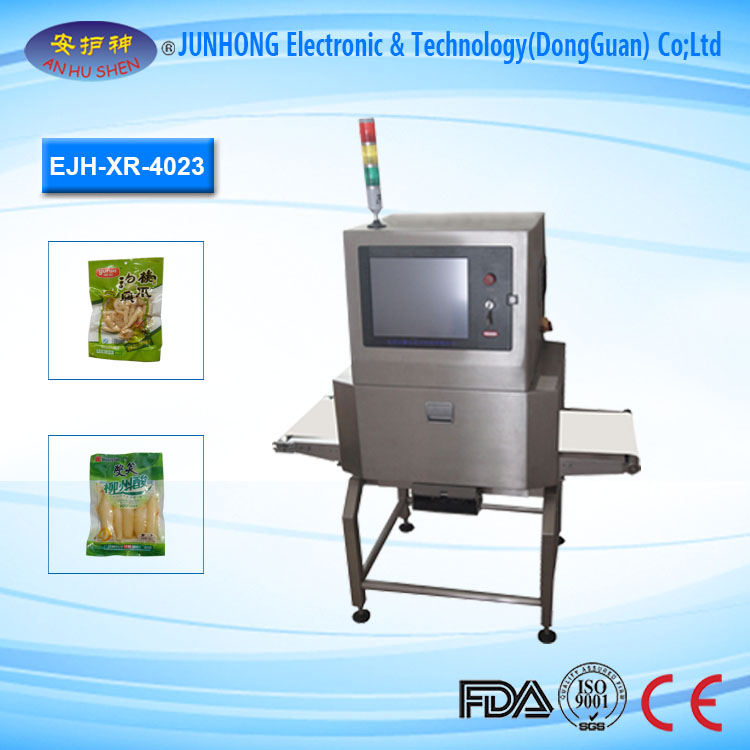

Digital Inspection/X-RAY Detectors for fish bone

The food x-ray scanner for the bones (fish bones and chicken bones) mixed in the product in production line. Suitable for the food safety x-ray scanner for pork , fish , chicken etc. Unique image processing algorithms of the X Ray machine, tiny fish bones also can be clearly shown.External HD screen, high identification of fish bones. There are more details of food safety x-ray scanner.

Features of food x-ray scanner

1) Full detection range:Full range of foreignobjects detection, including metal, non-metal in unlimited types

of products Metal packed, Nonmetalpackaged and canned products can be inspected.

 2) Extremely high sensitivity:High sensitivity up to0.5mm diameter stainless steel ball, 0.3mm*2mm stainless steel wire,1.5mm diameter ceramicballs and 1.5mm mm diameter glass ball,

 3) easy to operate: 15-inch touch-screen display, easyinteractive software comes with self-learning function, without requiring usersto manually set parameters, reducing user`s operation difficulty;  detection images can be saved automaticallyfor future analysis

 4) Auto-shielding:To meet product detection demand, shielding zones are available for certainzones which may reduce detection sensitivity in order not to lower overallsensitivity. Take aluminum buckles on both ends of sausage as an example:aluminum buckles can be shielded and not considered as foreign object indetecting, thus sensitivity of the left area won`t be affected.

 5) Highadaptability: the machine is equipped with industrial air conditioner;detection is not affected by environment temperature and humidity.

 6)  Securityprotection: the x ray leakage meets the standards of U.S FDA and ,European CE,it is less than 1μSv/hour; both hardware and software are designed with acomplete security measures. Machine condition is being monitored all the time;leakage accident by mal-operation can be prevented. For example, in case thedoor is opened, the machine will automatically and immediately stop X-rayirradiation.

 7) Qualityassurance: the main components such as x ray source, x ray detector, motor,frequency transformer etc all are imported from well-known oversea brands toensure the overall performance and service life of the machine.

 8)   Quality Certification: CE certification,exported to Europe, North America, Africa and other regions.



Technical parameters:

Model		EJH-XR-2411	EJH-XR-4016	EJH-XR-5025	EJH-XR-6030
Sensitivity (test pieces)		SUS Ball Φ 0.5mm, SUS Wire Φ 0.2*2mm, Fe ballΦ 0.5 mm;  Glasses ball: Φ 1.5 mm; Ceramic ballΦ 1.5 mm.		SUS Ball Φ 0.8mm, SUS Wire Φ 0.2*2mm, Fe ballΦ 0.8mm; Glasses ball: Φ 2.0 mm; Ceramic ballΦ 2.0mm.
X-ray source		Max:80kV, 100W/150W/210W/320W
Detection size	Heigh	110mm	160mm	250mm	300mm
	Width	240mm	400mm	500mm	600mm
Conveyor Speed		5 – 50 m/min
Display Screen		Full-color TFT 15″ Touch Screen
Operation system		Windows XP Professional
Operation type		Touch screen operation
data interface		LAN port, USB port
product management		Complete product log
parameter setting		Self-learning setting/manual setting selectable
image management		Images Save/print/analysis
power		AC 220V
machine material		SUS304
cleasning		Easy to clean
temperature control		Pfannenberg industrial air conditioner  (normal temperature control, automatic adjustment)
working temperature		0-40℃
working humidity		30-90%, No condensation (moisture control: dehumidifiers)
X-ray leakage		< 1μSv/hour
Protection type		Removable protective curtain

Remark: theabove data is empty-loaded machine sensitivity. The real sensitivity will belower on condition of different products being tested.







Internationalfamous brand electrical configuration (if better design, please let us know)



S/n	usage	name	unit	Brand or manufacturer
1	Generating x-ray	X-ray emitter	set	V J Technologies
2	Receiving X-ray	X-ray receiver	set	DT Detection Technology
3	Data processing	Industrial control computer	set	Advantech(Taiwan)
4	Temperature and humidity control	Industrial air conditioner	set	Pfannenberg
5	Belt drive	AC Gear motor	set	ORIENTAL MOTOR
6	Drive control	AC Variable-frequency Drive	set	YASKAWA Electric Corporation
7	Electronic Protection	Air switch	piece	LS Leading Solution
8	Electronic Protection	DC contactors	piece	Leading Solution
9	Electronic Protection	Air circuit breaker	piece	Schneider Electric
10	Electrical monitoring	Limit switch	piece	OMRON Industrial Automation 1.
11	electrical control	Relay modules group	set	OMRON Industrial Automation 2.





Detectiondescription:

1. MachineDetection Principle:

First acquire an products transmissionimages by x-ray irradiation, then judge if any foreign objects is contained inthe product image, by using image processing technique



2.Detection Range of Products:

All kinds of products without limit topackaging, packaging materials, includes items such as plastic wrap, aluminumfoil packaging, glass jars, metal cans and bulk products



3.Foreignobjects detection range:

Denser materials, including metal andnon-metal, such as stainless steel, iron, ceramics, glasses, stones, bones,hard rubber, hard plastic and so on. (Specific circumstances may vary ondifferent product)

---
