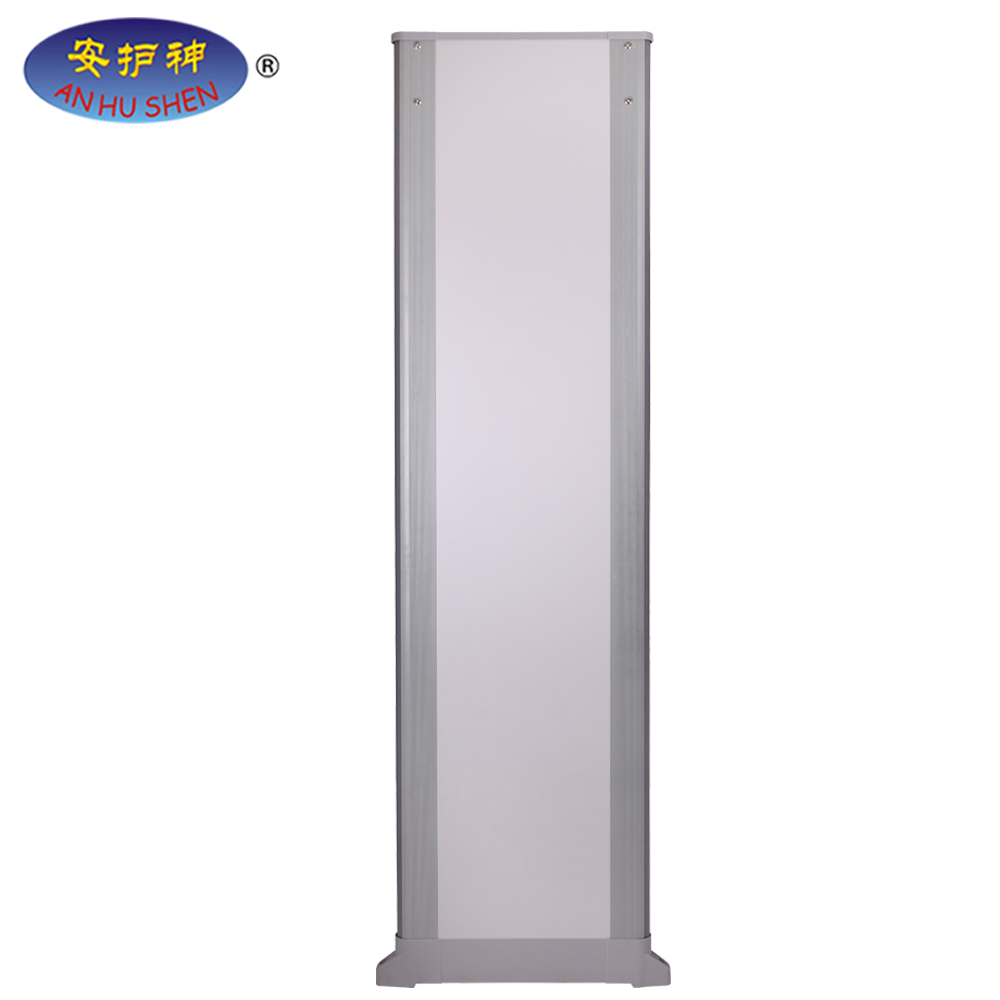

Super sensitivity multi-zone Walk through metal detector

1.Professional choice for metal detection:

 Adopt the most advanced digital detecting technology in the world , JH series scanner gate is special for detecting  metal and alloy articles concealed in human body. It is highly safe, widely applicable and highly sensitive with a wide detecting range and a good anti-interference capability.  The user can configure the gate according to the size and weight of the article for detection to exclude error alarm for coins, keys, jewelries and belt buckles. It is applicable in the places such as factories, mines, banks and luxuries houses, where expensive metal articles may get lost easily; and places such as airport, customhouse, jails, exhibition halls, where dangerous metal articles are prohibited.

2.Reasons to choose JH walk-through metal detector:

A. Deters crime
B. Improves traffic flow
C. Reduces the number of required searches
D. Reduces workload of security personnel
E. Reduces false alarms
F. Increases Building safety with minimal cost
G. Durable material adoption

This walk-through metal detector can be used in the factory, prison, court, exhibition hall, stadium and entertainment lieu, where the prohibited articles need to be checked for safety.

3.Technical Parameter:

4. Function and characteristics

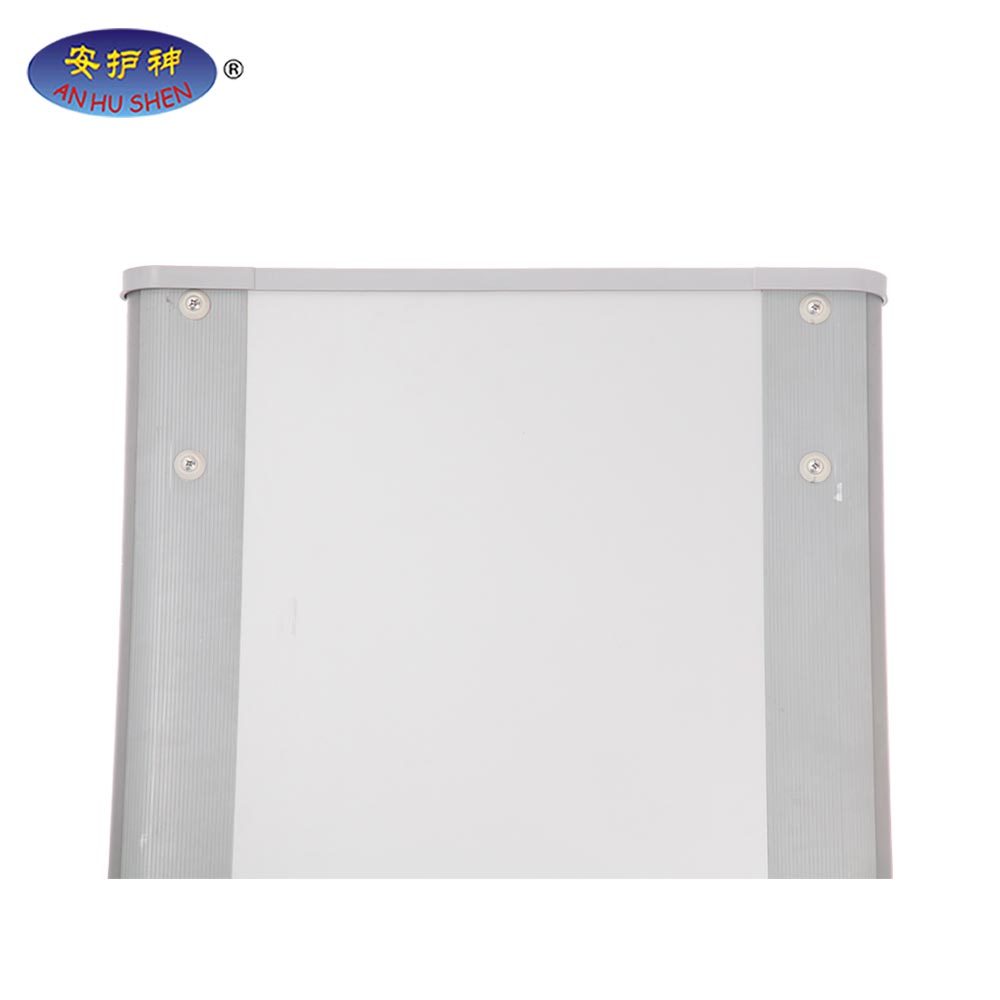

Easy Self Assembly

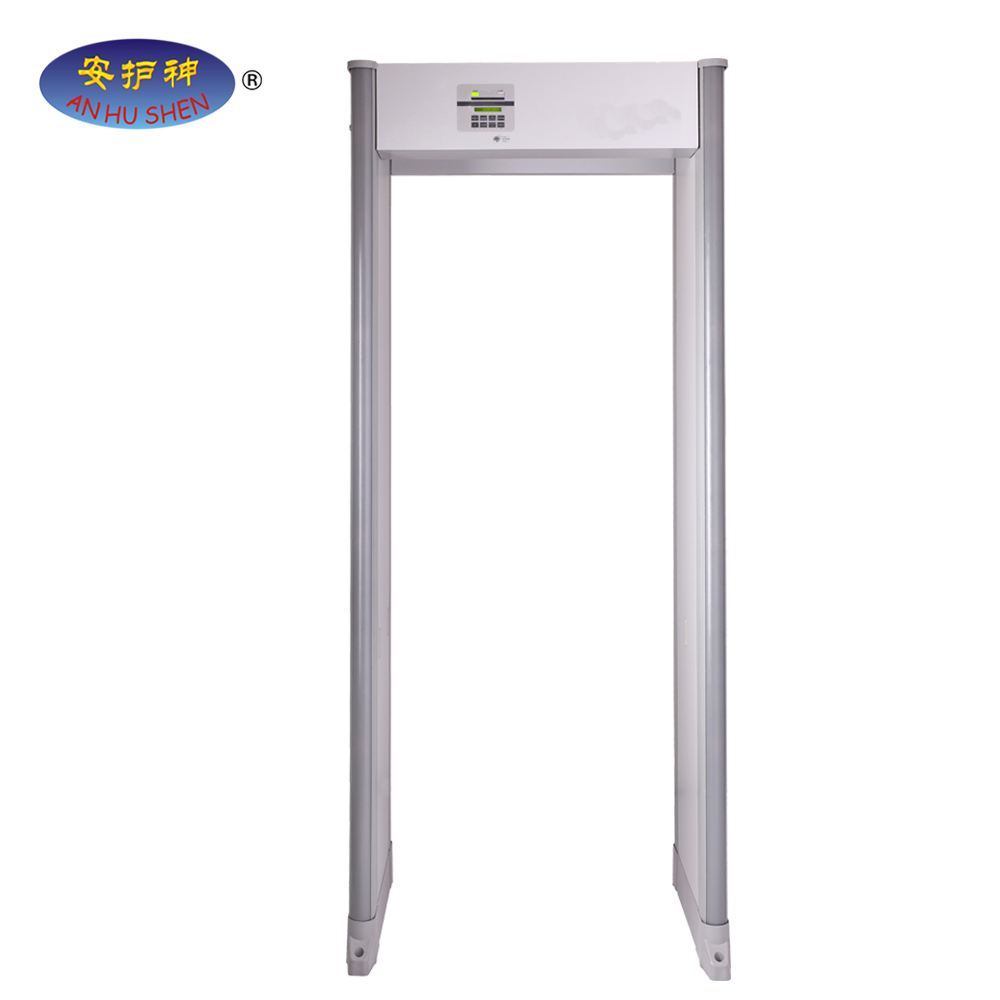

The JH-33Z ( LCD, 33 zone ) modular design allows for a quick and easy assembly of its 4 sub-assemblies using only 8 screws and 3 internal electrical connections. This can easily be done in situ by two people.

Pinpoint Detection Zones
There are 33 Distinct Pinpoint Detection Zones on the JH-33Z ( LCD, 33 zone ) for full target coverage on the left, centre and right side of the body from head to toe. The sensitivity on the 6 vertical zones can be set individually to target any part of the body.

Entry Pacing Lights
On the front of the archway on both legs are two traffic light style pacing lights. They are internationally recognized symbols at an easy to view eye level and help to control any queues that may form.

Overhead Control Unit

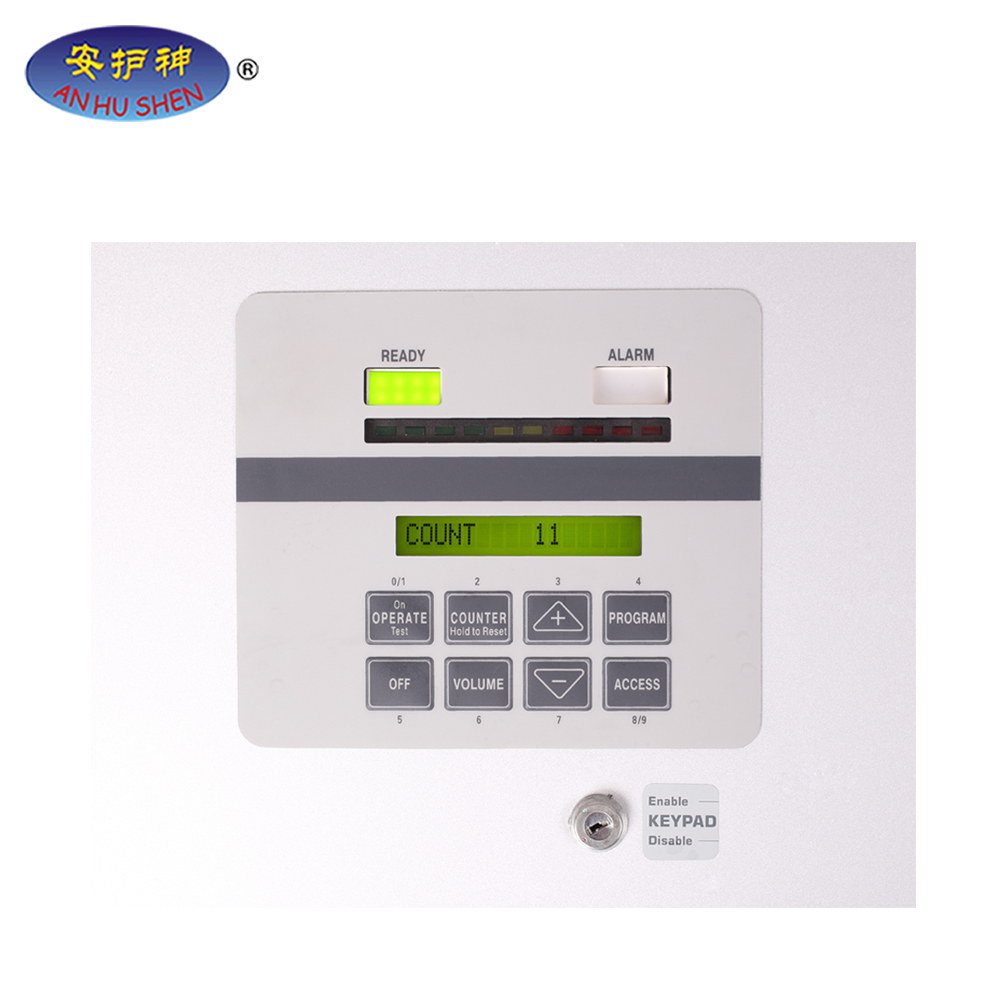

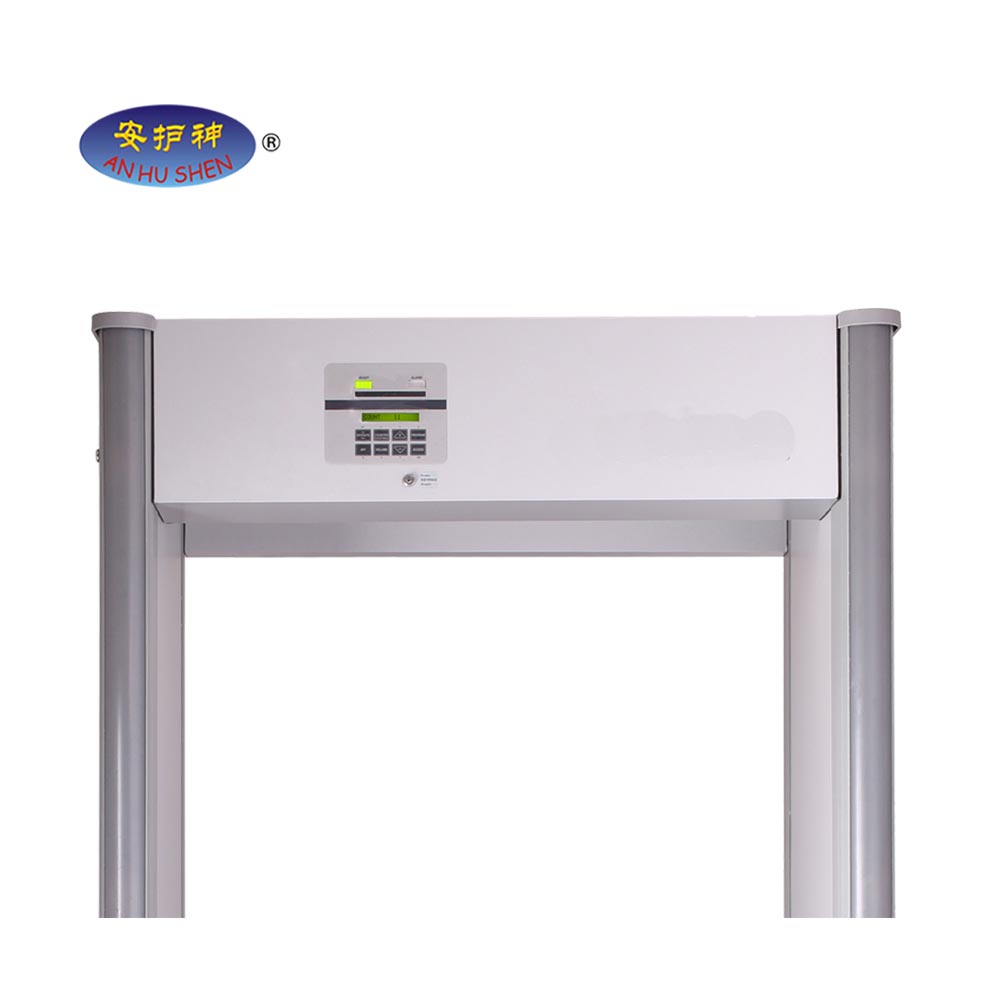

The main control panel is housed in the overhead control unit. This houses the LCD display, alarm lights, LED bar graphs and the control touch pads. All of the wiring, connections and electronics are integrated into the overhead unit which is lockable for security. The control touchpad is also lockable to prevent any unauthorised access.

Multi-dimensional Coil Design
The JH-33Z ( LCD, 33 zone ) is exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.

Audible and Visual Alarms
There is an audible alarm as well as visual LED lights signal when a target has been detected. The Pinpoint lights on the back of the archway will show where on the body any offending object may be.

Touchpad Controls

The JH-33Z ( LCD, 33 zone )’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security codes. It allows authorized users to change settings such as detection Program and Sensitivity. Security of the detector’s settings is maintained with a non-resettable sequence code, which indicates every attempt at access to the settings. A tamper alarm sounds within 10 seconds after the Access Touchpad is pressed, unless a proper access code is entered. This can be backed up by the use of a key to operate the touchpad.
The JH-33Z (LCD, 33 zone) maintains all settings even when disconnected from power and does not require recalibration each time the unit is turned OFF and back ON. No battery is required for memory retention. While the unit is in operation, a self-test of all systems is performed continuously with any failures or problems immediately reported on the LCD display.


Specifications:
 1) Operating Temperatures
 -20°C to + 70°C; Humidity: To 95% non-condensing
2) Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required.
3) Weatherproofing / Foreign Object Protection Standards
Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529.
4) Tamper-Proof
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
5) Control Outputs
       Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
6) Traffic Counter
     Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
7) Synchronization
     Dual channels and DSP circuitry allow several JH-33Z’s to operate simultaneously in close proximity to one another.
8) Interference Suppression
     DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
9) Programmes
    Sixteen (16) independent programs designed to meet all installation-specific requirements including the new TSA Enhanced Metal Detector (EMD) System requirements for airports.
10) Alarms
       Audible tone and volume adjustable. Bright LED visual alarm
11) Target Pinpointing Lights
   Thirty-three distinct zones are displayed with two independent columns of LED’s located on exit side of the gate.

Dimensions
(1) Overall sizes (mm): 2240 (height) x 900 (width) x 580(depth)
(2) Size of alley (mm): 2240 (height) x 760 (width) x 580 (depth)
