Basic Info

Model No.: EJH-360

Certification: CE, ISO

Condition: New

Customized: Customized

Alarm Form: Sound and Light Alarm

Material: SUS304

Additional Info

Packaging: Plywood carton

Productivity: 100 set/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 set/month

Certificate: CE, ISO 9001

Port: Shenzhen

Product Description

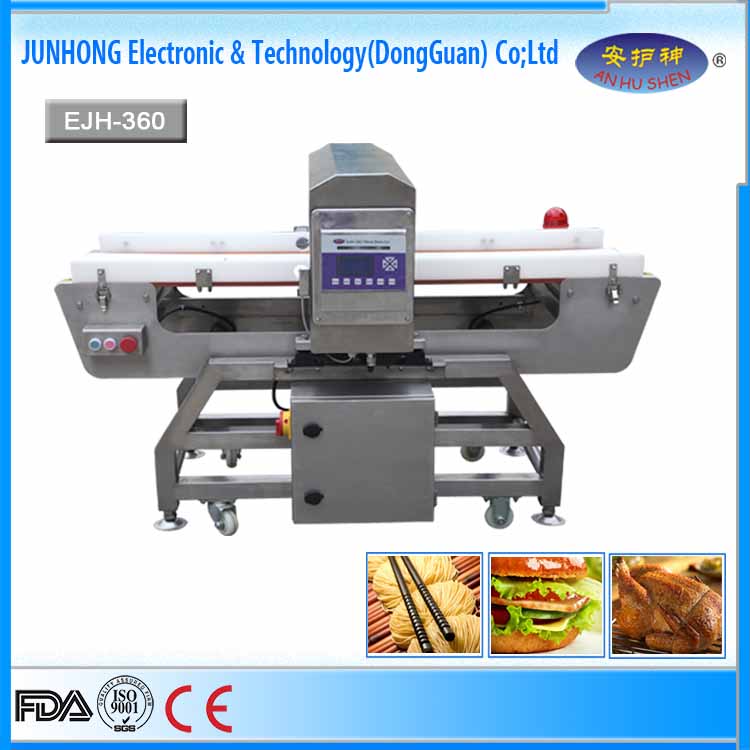

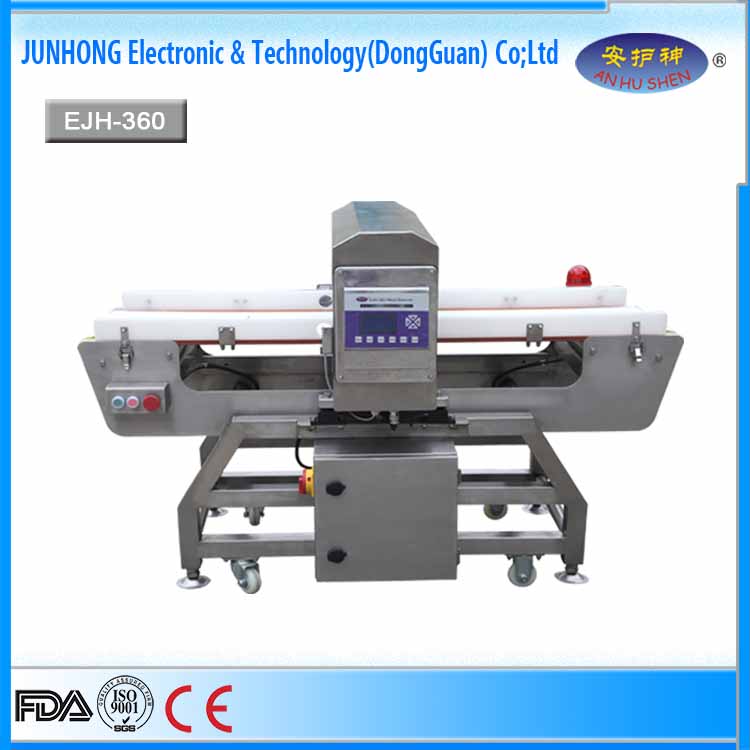

Tunnel Metal Detector for Industry

     EJH Series 360A metal detector has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the tunnel metal detector has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this tunnel metal detector chain conveyor with this function can reduce the products` effect to get better detection result.

FunctionScope of application

EJH-360 Food Metal Detector is mainlyused for Detecting all metal contaminants in packaged andnon-packaged food. its rewind can exclude product with metals automatically, without stoping the production line.



Product characteristic

1.      Phase tracking function, which can maintainthe stable high-sensitivity detection ability

2.      Product tracking function, which can doadjustment and compensation according to the changes of the product effectautomatically

3.      Auto-balanced calibration function, whichcan ensure the service life of the machine

4.      Applying high functional FPGA, plan withSingle Chip Machine

5.      Stainless steel mirror surface, easy design

6.      52 products can be restored in productdatabase

7.      IP66 dust and water proof

8.      Theperformance of the conveyor belt is complied with the American food sanitationstandard (FDA), it can be used for transporting the unpacked food directly.

9.      Canstably work for a long time, with a special design that is suitable for a harshproduction environment of strong vibration and high interference, the equipmentwon`t miss alarm even when you tap the probe.





Parameters

1.        DSPsignal processing technology.

2.        Designedwith a special seal, waterproof and dustproof to IP66.

3.        Conveyorspeed of 10 to 40 m / min (adjustable)

4.        Alarm:buzzer / warning lights.

5.        Rejector:push rod type, chute type etc, option accessory.

6.        Electronicsource: AC110V/220V/380V,50/60Hz,power:90/120W.

7.        NormalSize (mm): 1600(L) X 900(W) X1030(H)

8.        GrossWeight: approx 390Kgs Net Weight: Around 350kgs



Sensitivity(forreference)

Detection Width	40	40	40	40	50	50
Detection Height	8	12	15	18	15	20
Sensitivity of Fe	Φ0.5mm	Φ0.6mm	Φ0.7mm	Φ0.8	Φ0.9mm	Φ1.0mm
Sensitivity of SUS 304	Φ0.8mm	Φ1.0mm	Φ1.2mm	Φ1.5	Φ1.8mm	Φ 2.0mm



Detection window sizecustomized per your demands, and the sensitivity based on the internationalmetal bead detected not carry products.



Package:

Strong plywood case.

---
