Basic Info
Model No.: EJH-W220
Accuracy: ＜±0.5g
Check Weight Range: 1-999g
Application Area: Food & Beverage Industry
Type: Universal Series
Touch Screen: Touch Screen
Sorting Method: Pusher-bar
Gross Weight: 200kg
Additional Info
Packaging: paper carton
Productivity: 50 pcs/month
Brand: Anhushen
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 50 pcs/month
Certificate: ISO ,CE
Port: Shenzhen
Product Description

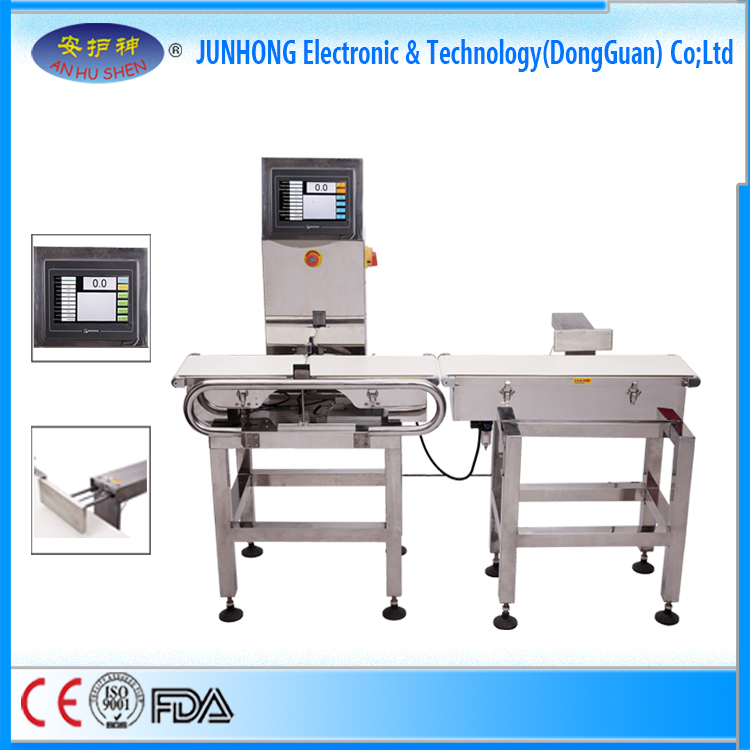

High Quality Industry Check Weigher
Junhong was established in 2005, with 12 years’ experience in the check weigher machine and metal separator field in Dongguan, mainland China. the sorting machines for fruits and vegetables are available in configurations. the size of the auto weighing machine are set according to the wishes of the client. The industrial check weigher allows us to supply you with the layout and configuration which suits best to your exact situation. There are more details of food industry online checkweigher as below.
Device Features of weight grading machine:
1, high-precision weighing control: two tables and SIWAREX weighing module optional
2, multi-weighing zone settings, parameter setting and multi-product storage, comprehensive statistical functions
3, user-friendly interactive interface, simple operation, buttons, touch screen operation Optional
4, high-precision weighing sensor: optional digital and analog
5, the perfect functional design: sorting and removing features optional accessories;
6, all stainless steel construction, sealed design, construction to meet the food, pharmaceutical grade demand
7, weighing reproducible, easy calibration
8, AC motor control belt, adjustable speed, well-known brands of electrical components
9 complete portfolio of solutions and products line: the weight sorting machine can be equipped with metal detector, X-ray machine to achieve the strict quality checks
10, rich reporting capabilities, Packing each district, each district of the total, the number of qualified, qualified total, mean, standard deviation and total number and total accumulated.
2. solution
2.1 customer requirement
2.2.supply scope and technical specification
2.2.1system components and fuction
| System integtation | Technical introduction | |
| Automatic feeding vibration plate | Can accommodate thousands of products | |
| belt conveyor , send the product to weigh area | ||
| Conveying | counts through the photoelectric sensor ; | |
| adjustable speed, length, width, based on product options; | ||
| Dynamic weighing | weighing sensor Optional: digital, analog ; range based on product options | |
| belt conveyors , continuous load , speed adjustable | ||
| Defective products rejecting(optional) | variety of exclusion Optional: inflatable type, pusher , lever -type | |
| Fast pneumatic remove the mechanical structure , the action fast and flexible | ||
| Product sorting(optional) | Set the export classification number according to product categories | |
| generally use lever -type classification | ||
| Mitsubishi PLC controller : fast and accurate data storage and movement control | ||
| SIWAREX series weighing module : high-precision , high-speed weighing conversion module | ||
| Electric control | AC motor controlled by Mitsubishi PLC control the belt speed ; | |
| qualified products , alarm indication , system failure alarm , operating instructions | ||
| centralized control electrical box , the size of the optional | ||
| Digital Input / Output : Optional quantity, movement and control equipment | ||
| Communication Interface : RS485 interface, optional PROFIBUS protocol interface | ||
| operation screen : touch- and touch- selectable, selectable size , color | ||
| Interface operation | Optional PC control operating functions | |
| Optional data printing capabilities | ||
| historical trend data queries optional | ||
| Automatic reframing | When the number of qualified products reaches the preset number , Reframing Reframing organizations perform automatic actions | |
“Anhusheng” check weigher systems include load cells and mounting modules, field wiring box and weighing signal cables. “Anhusheng” check weigher applies 32 CPU, 16-bit AD converter.
