Overview
Quick Details
Place of Origin:Guangdong, China (Mainland)
Brand Name:Anhushen
Model Number:JH5030A
easy to operate:intelligent
tunnel size:500Wx300Hmm
Conveyor Speed::0.22 m/s
Conveyor Max Load::20 kg
SupplyAbility:240 Piece/Pieces per Month weeks
Packaging Details: 185*83*150cm G.Weight:500KG,carton,wood etc as you want
Port: Shenzhen
Lead Time :within 7-10 working days

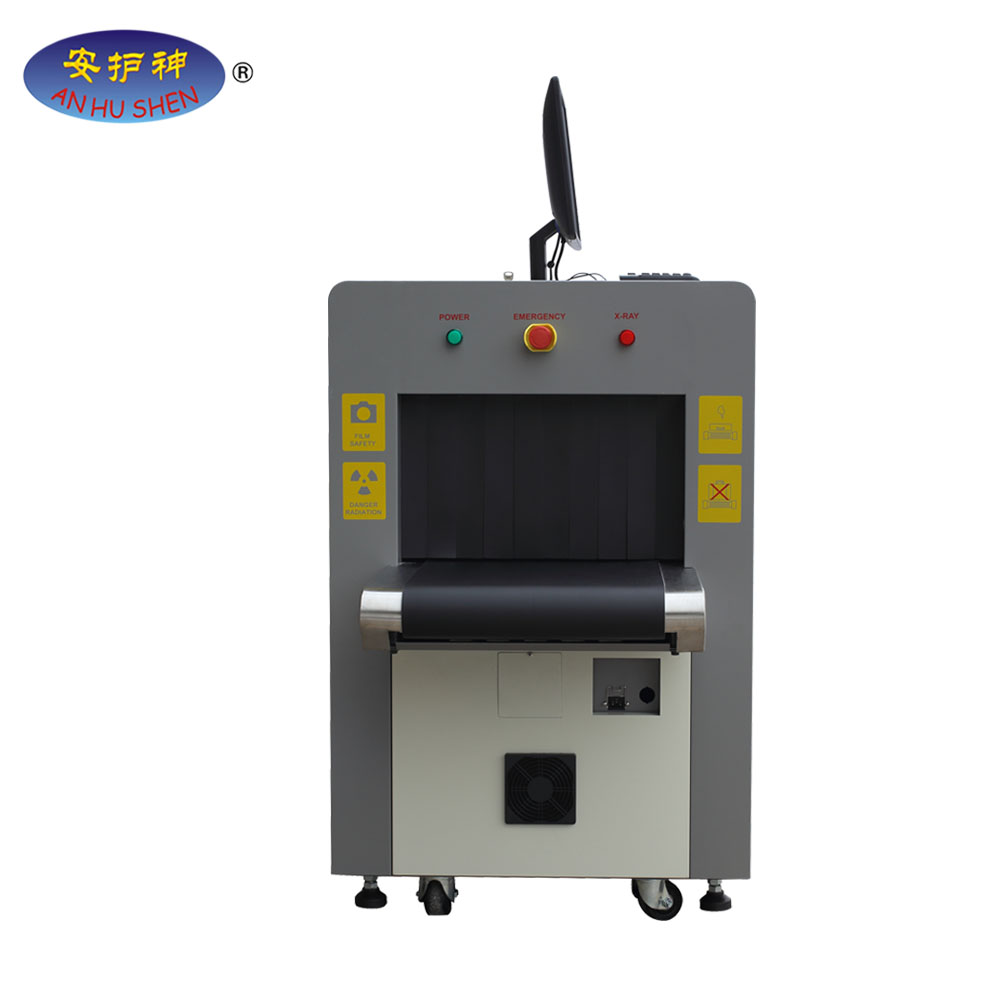

x-ray inspection, xray screening JH-5030A ship to Haiti
FEATURE:
1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.
2. Network interfaceCould be connect local area network and support multi-terminal check baggage at same times
3. Safety rayTransmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendlyThe monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.

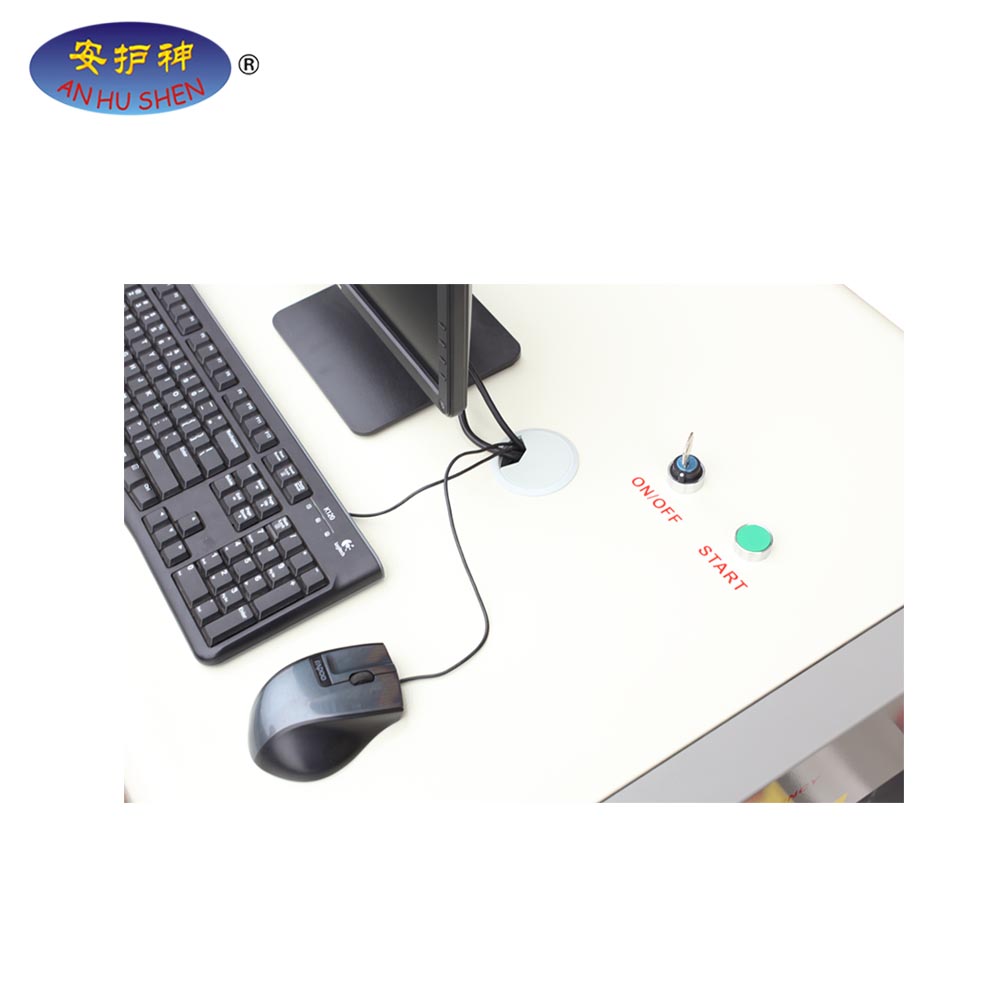

5. Simple operation by mouseWithout keyboard and work table, control by mouse, save space.
6. Turn off by a key controlTurn off the machine only need one steprevolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eyeCould be expediently observing enlargement area.
8. Estimate malfunction by selfAutomatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 500W×300Hmm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 20 kg
Single inspection dosage: < 1.5μGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 8MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.3μGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~0.5MAadjustable
Anode Voltage: 80 KV(adjustable
Angle: 60°
Generator cooling/working periods :Sealed oil bath with forced air/100
IMAGE PERFORMANCE SYSTEM:
X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
COLOR QUALITY: 24 BIT REAL COLORS
EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT
SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT
HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY
LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS
MULTI-ENERGY FUNCTION:
MULTI-ENERGY COLOR: DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN
HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC
AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.
AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION
OPERATING ENVIRONMENT:
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage 1.0 KW (Max)
Noise <65DB
