Basic Info

Model No.: JH-5B

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Museum

Power: 35W

Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

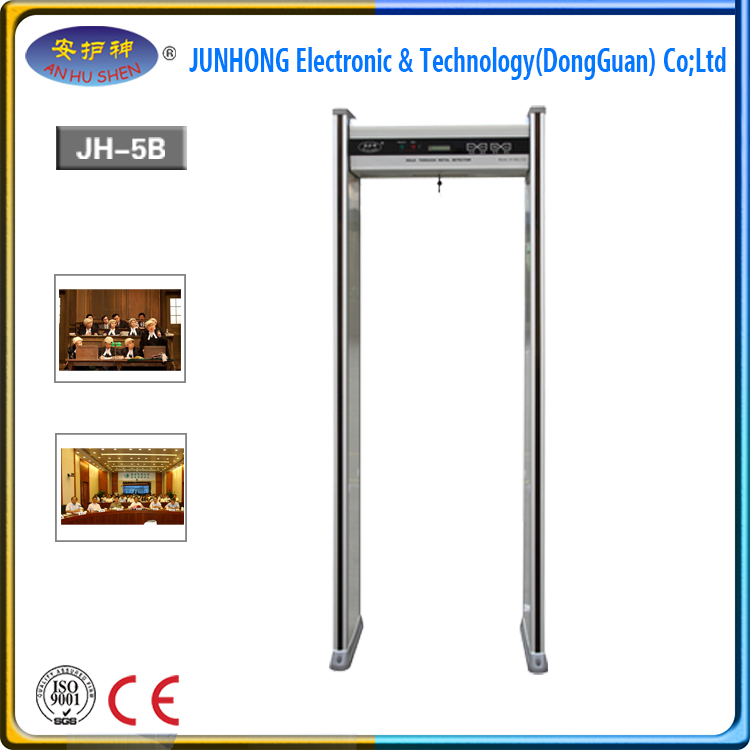

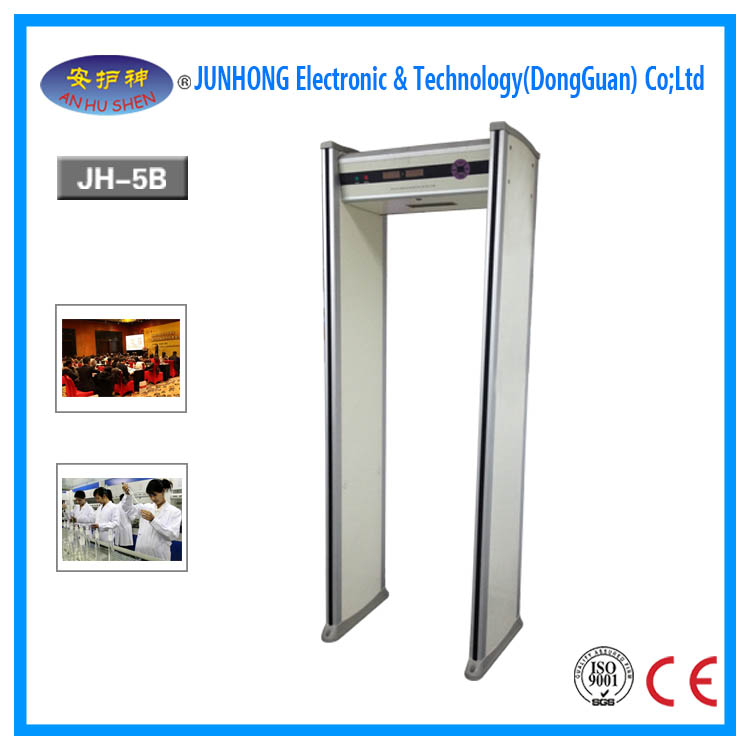

Folded Portable Walk Through Metal Detector

     JH-5B walk through metal detector is the hot sales product at home and aboard. Because of its features, this kind of folded portable metal detector can meet many people’s need. The archway metal detector is very suitable for airport checking. The door frame metal detector can detect the guns, weapons and knives easily. There are more details of metal detector gate as below.

Professional choice for metal detection:
JH series airport metal detector is a CE approved concealed weapons detector. This walk-through metal detector which uses advanced magnetic technology to accurately pinpoint the location, size, and number of concealed weapons, such as knives and guns. Personal artifacts such as coins, keys or belt buckles will not set offthe alarm. The walk-through metal detectors a true multi-zone metal detector with new advanced features. It offers superior performance for demanding high security applications.
Reasons to choose JH walk-through metal detector:
1. Deters crime
2. Improves traffic flow
3. Reduces the number of required searches
4. Reduces workload of security personnel
5. Reduces false alarms
6. Increases Building safety with minimal cost
7. Durable material adoption
This walk-through metal detector can be used in the factory, prison, court, exhibition hall, stadium and entertainment lieu, where the prohibited articles need to be checked for safety.

Function and Character

(1)  All weather water proof, IP55 Standard. Durable with Alloy & PVC Construction.

(2)  LCD Screen Display: LCD Screen Display with two version of Chinese and English menu. Easy to view and operation.

(3)  Alarm: Audible tone and volume adjustable with low , middle and high . Bright LED Visual alarm

(4)  18 independent detection zones.

18 independent distributing search coverage and acousto-optic alarm when target is found. LED gatepost lights directly displays the alarming area which can exactly indicate the target from left, middle and right area.

(5)  255 sensitivity level Adjustable Flexibility: We can reach the security requirements by adjusting the flexibility. There are 255 flexibility degrees in each detective area.

(6)  Complex circuit, infrared installation and computer automatic identification decrease the mistakes and missing dramatically. It can automatically show the alarm frequency and numbers of passed people.

(7)  Password protection setting: You can change the system, flexibility and other setting only after typing in the pass word correctly and only authorized person allowed to change the setting can’t change the settings.

(8)  Adoption of weak magnetic field launching technology will not cause harm to heart pacemaker wearer, pregnant women, disks and videos.

(9)  Two or more gates can work simultaneously

(10) Network connection, RS485 port can connect Max32 units gates. It’s easy to control and adjust the progress.

Dimensions

Outer frame: 2.2 *0.82 *0.5m (H * W * Depth)

Inner frame: 2.0*0.7*0.5m (H * W * Depth)

Electric current: 90-240vAC, 50/60 Hz Power: 35W

Net Weight: about 65kg Gross Weight: 70Kg

working environment: -30~55.c

 humidity <=95%RH   Standard: GB15210-200

---
