- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
Anhushen
- Model Number:
-
JH-8045Z
- Technology:
-
weak magnet field lunching technology
- Applications:
-
Airports and Ports, Embassies, Military Installations
- Operation languages:
-
English
- Network ability:
-
yes
- Self calibration:
-
yes
- Detects mini metal:
-
1 yuan coin
- Detection speed:
-
60 peoples/min
- Materials:
-
high density fire board
- Back up battery:
-
yes, 4 to 8 hours for options
- Certifications:
-
ISO9001, CE, SGS IEC
- SupplyAbility:
- 300 Set/Sets per Month
- Packaging Details
- 2280x700x290mm G.W76kg
- Port
- Shenzhen
- Lead Time :
-
Quantity(Units) 1 – 1 2 – 20 21 – 50 >50 Est. Time(day) 1 12 21 To be negotiated
Product Details
Advantages of this walk through metal detector: high sensitivity; anti- interfere; multi detection zones; adjustable sensitivity of each zone; self-diagnosis when powered on; 7-inch LCD capacitive touch screen; high-strength materials, fireproof, anti-corrosion, shockproof; real-time environment interfere monitor.
Advanced features
Multi-zone technology: 45 detection zones, adjustable sensitivity of each zone.

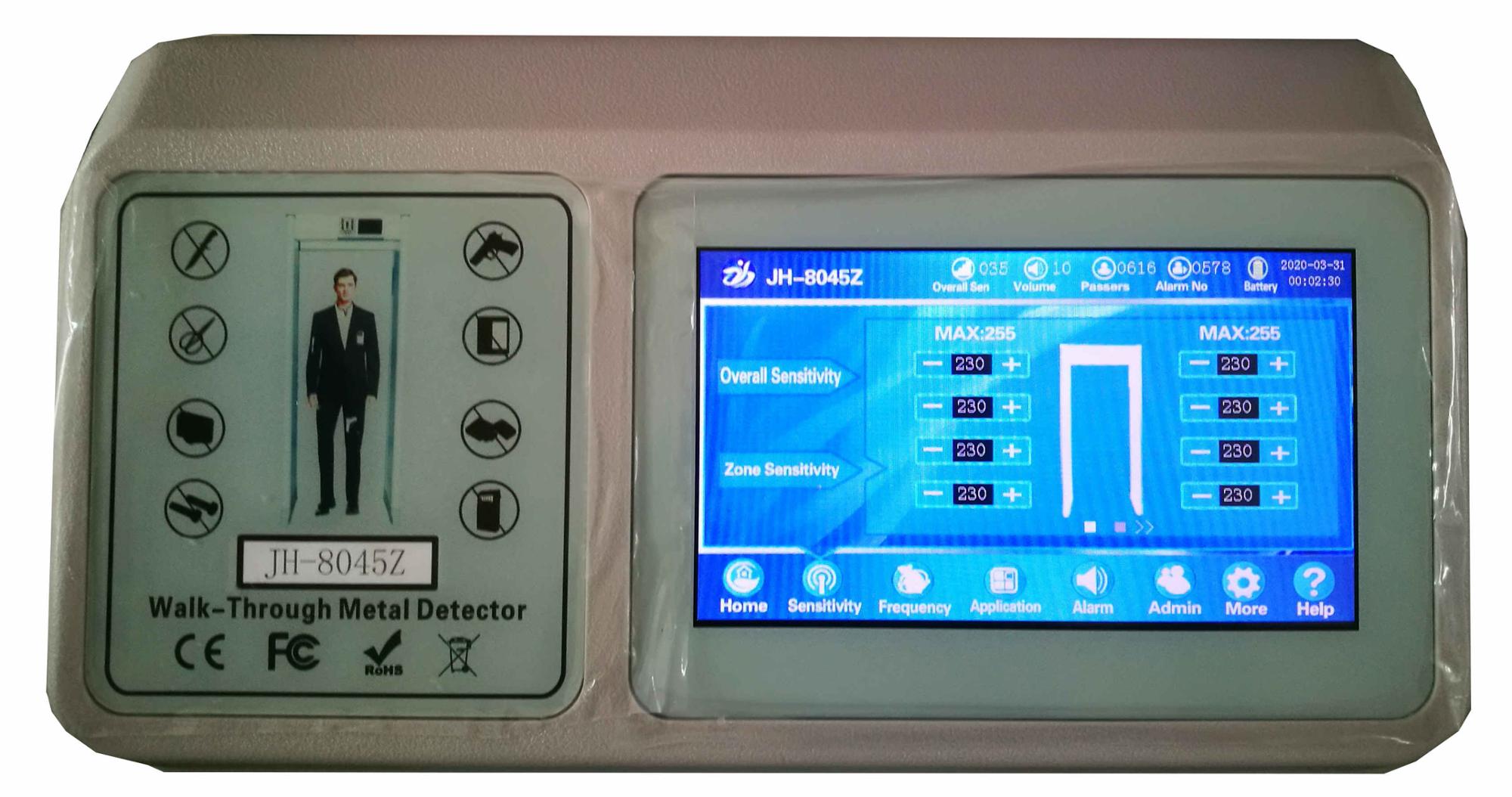

Touch screen: 7-inch HDMI LCD touch screen, easy to operate and understand.
IP Grade: IP55 superior waterproof performance.
Self calibration once power on.
Self diagnostic, it will inform the user when exit the system.
Start-stop technology: infrared devices with automatic start-stop technology.
Adjust the alarm sounds arbitrarily.
Adjust the working frequency automatically or manually.
Detection Technology: Even detection technology, no blind spot.
Professional detection process: built in 50 different detection occasions
Working frequency: 100 working frequency.
Security level: 50 security levels.
Detection sensitivity of each zone: From 0 to 255 level.
Multi-alarm sounds to choose-to fit different applications.
Counter: Record the pass and alarm numbers.
Query function: The system has real-time information query function.
intelligent Standby: The system has intelligent standby operation alerts.
Working Standby:16 high-brightness LED indicator on.
Detection speed: more than 60 people pass and detect in 1 minute.
|
FUNCTIONS |
|
|
External dimensions |
2240×670x850mm |
|
Vertical channel size |
2000x700mm |
|
Packing size |
2280x700x290mm |
|
NW |
67KG |
|
GW |
75KG |
|
Working voltage |
AC90V~240V 50/60Hz |
|
Power |
12W |
|
Working frequency |
1-100 |
|
Working environment |
-20℃~65℃ |
|
Installation environment |
(W) 100cm* (L) 200cm (no metal in this range) |
|
Highest standard |
Metal size≥6g |
|
Technical Standard |
|
|
Exclude appointed metal on one body like the belt,bra,etc. |
Yes |
|
7-inch LCD capacitive touch screen |
Yes |
|
Touch-screen operation |
Yes |
|
External control alarm device port |
Yes |
|
Secondary development port/upgrade port |
Yes |
|
Count the number of pass |
Yes |
|
Count the number of alarm |
Yes |
|
Query in/out record |
Optional |
|
Dual password protection |
Yes |
|
Multi zone detection,multi alarm |
Yes |
|
Smart Partition |
Yes |
|
Smart Partition alarm indicator |
Yes |
|
Double sides super brightness SMD LED |
Yes |
|
100 working frequency |
Yes |
|
Alarm quiet mode |
Yes |
|
Adjust the alarm sound |
Yes |
|
Multiple alarm sounds |
Optional |
|
Front or rear single side alarm light |
Optional |
|
Front sides alarm indicate lights |
Yes |
|
Four sides led lights/optional |
Yes |
|
Sensitivity of each zone can be adjusted |
Yes |
|
Adjust sensitivity:0~255 |
Yes |
|
Security level:1~50 |
Yes |
|
45 detection zones |
Yes |
|
Built-in 72 applications |
Yes |
|
Back-up battery continues work for 2h/optional |
Optional |
|
Back-up battery continues work for 8h/optional |
Optional |
|
Restore factory settings |
Yes |
|
|
|
Quality Assurance:
the warranty of walk through metal detectors is one year limited warranty(Labor and parts)
PACKAGE:
Security metal detectors are packed in strong carton, Standard export plywood cartons are optional
DELIVERY TIME:
Delivery of door frame metal detectors is 3-5 days after confirming order
Our security metal detectors are CE and ISO9001 certified.
