- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
ANHUSHENG
- Model Number:
-
JH220
- Type:
-
Checkweigher
- Power Supply:
-
110V-220V
- Display Type:
-
LCD
- touch screen:
-
IEMENS PLC and 7" touch screen,
- 50 Set/Sets per Month
- Packaging Details
- wooden case etc as you required
- Port
- Shenzhen
- Lead Time :
- within 10-15working days

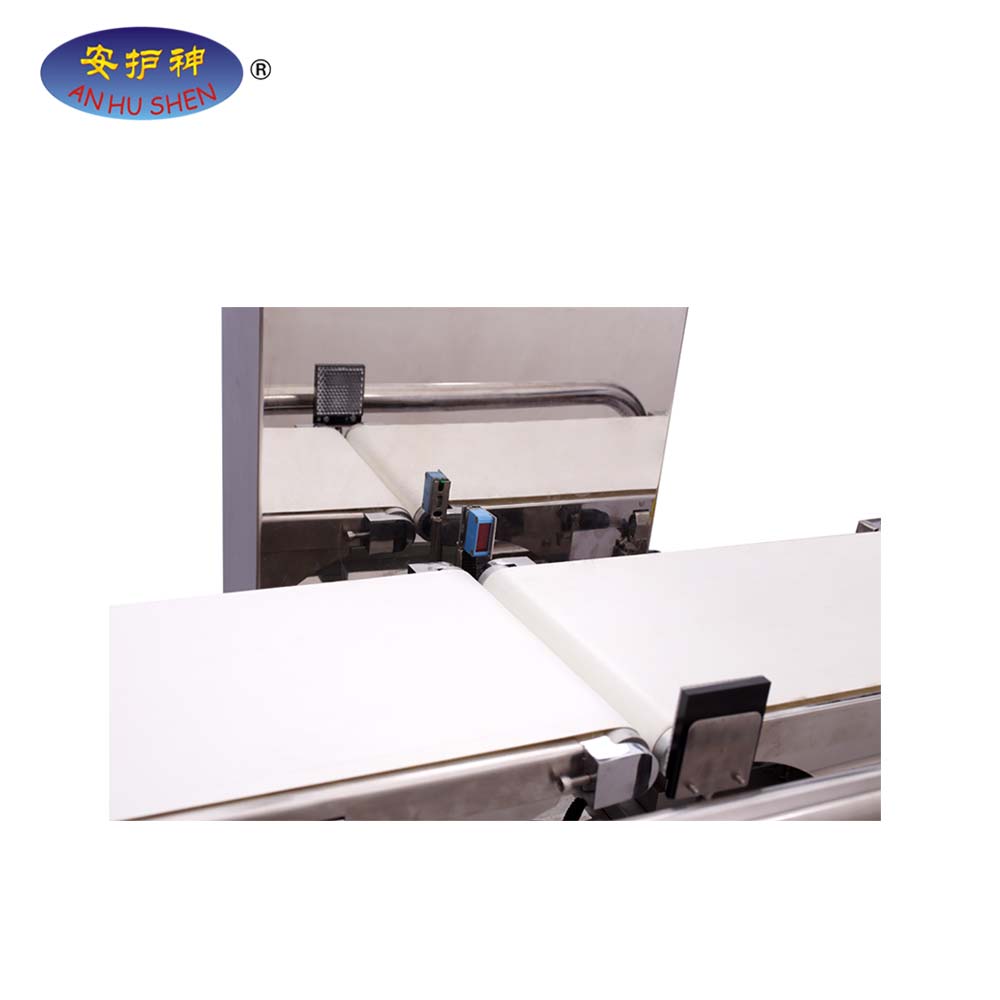

Electronic Belt Weigher
1 Application:
It is suitable to check weight of various product, over or less weight will
be rejected out,qualify bags will be passed to next equipment.
2 Features:
² SIEMENS PLC and 7" touch screen, more stability and easier to operate;
² Apply HBM load cell ensure high accuracy and stability (original from Germany);
² Solid SUS304 structure ensure stable performance and precise weighing;
² Reject arm, air blast or pneumatic pusher for selecting;
² Belt disassembling without tools, which is easier to clean;
² Install emergency switch at the size of machine, user friendly operation;
² Arm device show clients clearly for the production situation (optional);
3 Specifications:
|
Model |
JH-C220 |
JH-C300 |
|
Control System |
SIEMENS PLC and 7" HMI (WEINVIEW or SIEMENS) |
|
|
Weighing range |
10-1000 grams |
10-2000 grams |
|
Speed |
30-100bags/min |
|
|
Accuracy |
+1.0 grams |
+1.5 grams |
|
Product Size |
10<L<220; 10<W<200 mm |
10<L<220; 10<W<280 mm |
|
Mini Scale |
0.1 grams |
|
|
Weigh Belt |
420L*220W mm |
500L*320W mm |
|
Reject system |
Reject Arm/Air Blast/ Pneumatic Pusher |
|
|
Power supply |
220V/50HZ or 60HZ Single Phase |
|
|
Packing Dimension |
1600L*500W*900H mm |
|
|
Gross Weight |
200kg |
250kg |
Packing size : 1418L*1368W*1325H mm
