Basic Info

Model No.: FS2

Condition: New

Portable: Portable

Application: research, commercial, industrial

Certification: CE, ISO

Customized: Non-Customized

Alarm Form: Audible Alarm

Search Coil: 5 Inches

Additional Info

Packaging: paper carton

Productivity: 1000 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

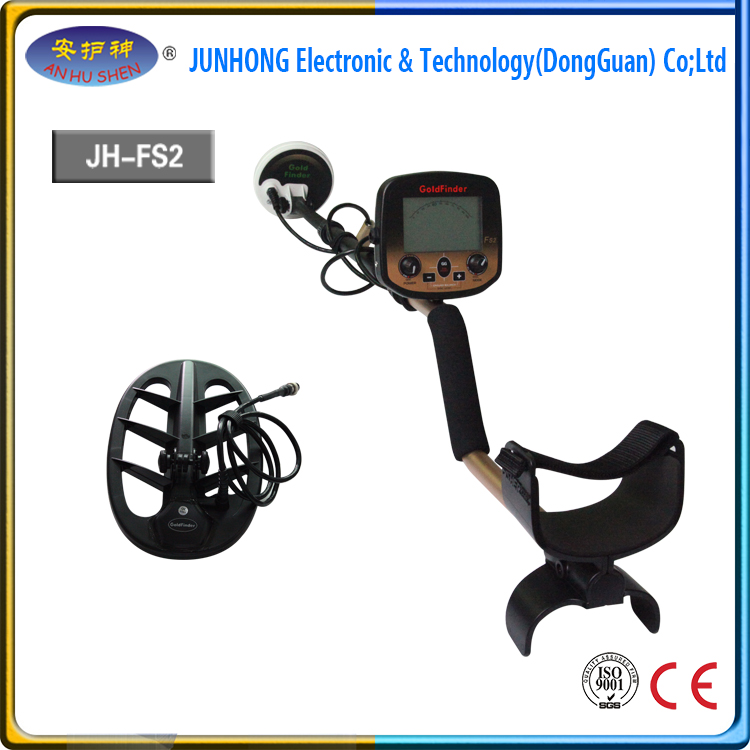

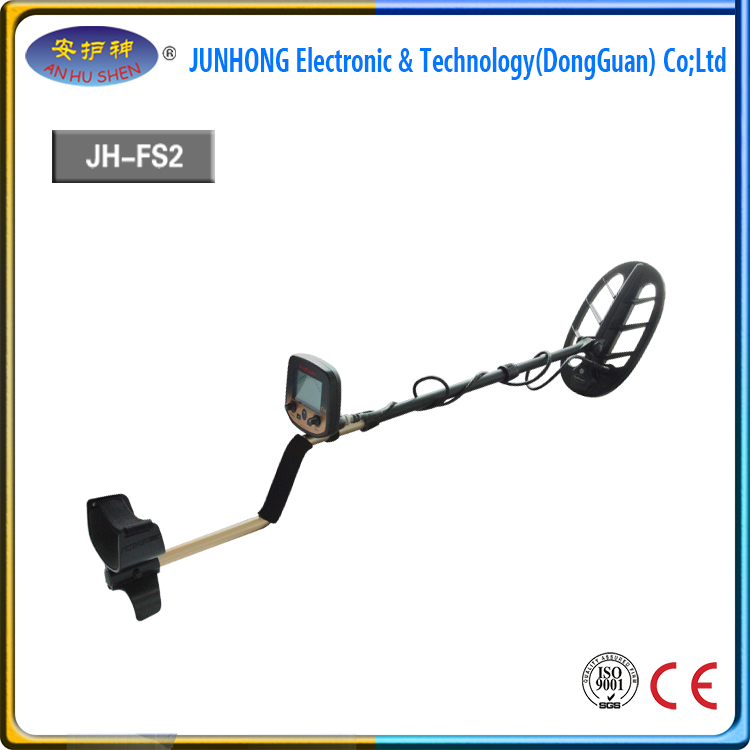

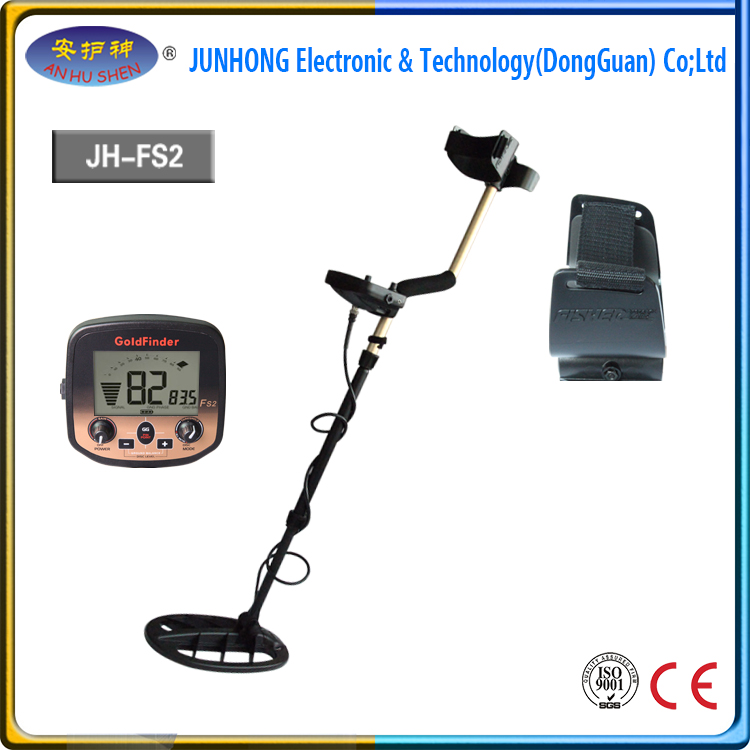

Gold and Silver Diamond Jewel Metal Detectors

     Using the advanced technology in the world, silver and gold metal detectors has wide detection range. Manyadvantages of this underground metal detector machine,positioning accuracy, simple operatio, highresolution. The underground gold detector is mainly use to identify and detect the buried treasure.

Introduction

FS2 treasure hunting gold detector is unique among goldprospecting metal detectors for its combination of high sensitivity to smallgold nuggets and its versatile function as an all-purpose treasure detector.



The controls and features of deep underground gold detector aretailored to gold prospecting, including a sophisticated ground balancingsystem, separate control over signal gain and threshold, and a uniquediscrimination control system. These features also make for a greatrelic-hunting detector, especially when the FS2 is outfitted with the optional11″ DD search coil. While the FS2 makes for a highly competent coin-shootingdetector, its user interface and features are not specifically designed forthis purpose. As a coin-shooter, you will notice that the FS2 exhibits slightlylower sensitivity to high conductivity coins, like a U.S. quarter; this is aresult of its specialized design to emphasize sensitivity to small lowconductivity metals like

gold nuggets.



FS2 precious metal detector is outfitted with a small 5″search coil as standard equipment since this search coil construction isbest-suited to finding gold nuggets. You may be familiar with other metaldetectors which have larger search coils, generally in the range of 8 to 10inches in diameter. Large coils are designed to cover the maximum amount ofground efficiently and for the deepest ground penetration. Small search coils,intended for gold prospecting, are designed for precision. Its small DD search coilmakes pinpointing easier, fits into small spaces where gold is often hidden, isbetter suited to penetrate highly mineralized soils wheregold is frequently found, and has the highest possiblesensitivity to tiny gold nuggets.



Specification:

Mechanical: S-rod withelectronics housing on rod, 3-piece breakdown

construction, nonmetallictelescoping lower rod, adjustable position

arm rest

Weight: 2 lbs, 8 oz with batteryinstalled

Standard search coil: 5 inch(12.3 cm) closed-frame round biaxial, not waterproof

Batteries: Single 9 voltrectangular alkaline

Operating principle: VLFinduction balance

Operating frequency: 19 kHz,crystal controlled

Reactive overload: 10,000micro-cgs (with standard search coil)

Resistive overload: 1,200micro-cgs (with standard search coil)

Ground balance range: Fromferrite to salt water inclusive

Discrimination groundsuppression: Combination of 2nd and 3rd

order methods

Target ID ground suppression: 3rdorder

Battery life: 15+ hours on goodquality alkaline

Operating temp range: 14 to 122degrees F (-10 to +50 C)

Operating humidity range: 0 – 90% noncondensing

---
