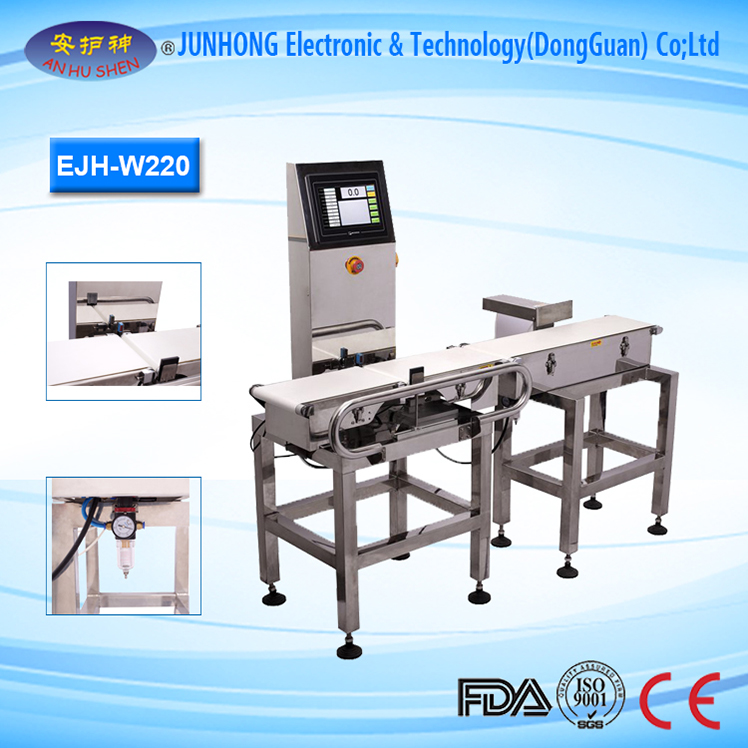

Food Industry Check Weigher Machine
Overview
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Anhushen
Model Number: EJH-W220
Type: Checkweigher
Power Supply: 220v
Display Type: Touch pad control
Rated Load: 1.5kg
Accuracy: 1.0g
color: siliver
SupplyAbility: 400 Set/Sets per Month
Packaging Details :Strong woden case
Port: Shen Zhen
Lead Time : within 5-15days after get the payment
Food Industry Check Weigher Machine
WEINVIEW PLC and 7″ touch screen, more stability and easier to operate;
Apply HBM load cell ensure high accuracy and stability (original from Germany);
Solid SUS304 structure ensure stable performance and precise weighing;
Reject arm, air blast or pneumatic pusher for selecting;
Belt disassembling without tools, which is easier to clean;
Install emergency switch at the size of machine, user friendly operation;
Arm device show clients clearly for the production situation (optional);
Specifications
|
Model No. |
EJH-W220 |
|
Weighing range |
10-1200g |
|
Accuracy |
±0.5 |
|
Mini Scale |
0.1 |
|
Max selecting speed T/min |
210 |
|
Conveying speed |
13-96 |
|
Detecting length |
60-300mm |
|
Detecting width |
30-220mm |
|
Detecting height |
10-200mm |
|
Weighing belt size(L*W) |
450*220 |
|
Remarks |
Normal |
|
Reject systems |
Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type |
|
Reject direct |
Single direction, separate weight, Multi selecting or others |
|
Product feeding methods |
production line dispatching, manual operation, vibration feeding or others |
|
Main material |
Stainless steel 304 |
|
Control system |
WEINVIEW PLC and 7″ HMI |
|
Power |
AC220V 50hz ~ 60HZ,0.5KW-1KW |
|
Conveying direct |
Facing the panel from left to right (customizable) |
|
Working environment |
Temperature 10~40 ℃,humidity 95% no condensation |
