Basic Info
Model No.: EJH-W220
Accuracy: ＜±0.5g
Check Weight Range: 1-999g
Application Area: Food & Beverage Industry
Type: Automatic-weight Classifier
Touch Screen: Touch Screen
Sorting Method: Pusher-bar
Gross Weight: 200kg
Additional Info
Packaging: Plywood carton
Productivity: 100set/month
Brand: Anhushen
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 100set/month
Certificate: CE,ISO 9001
Port: Shenzhen
Product Description

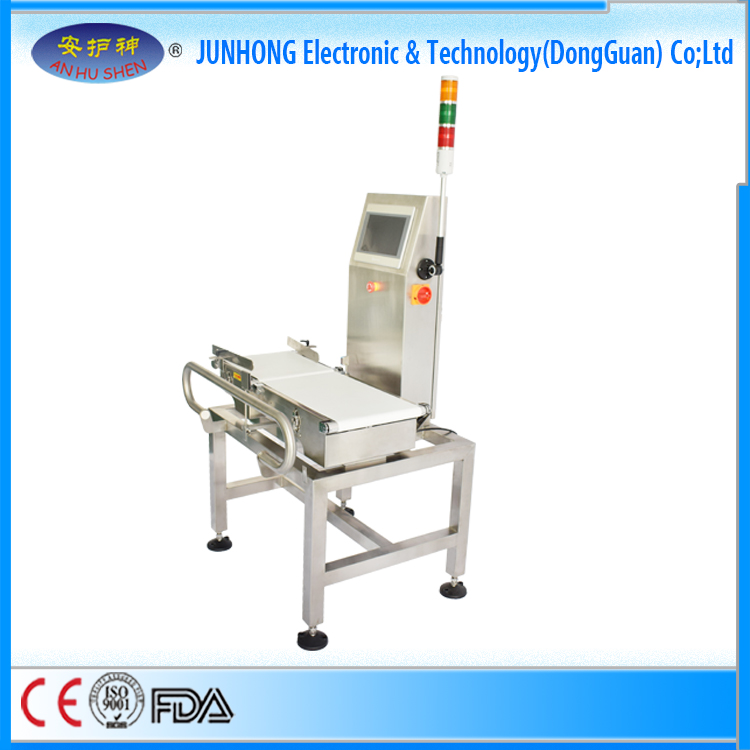

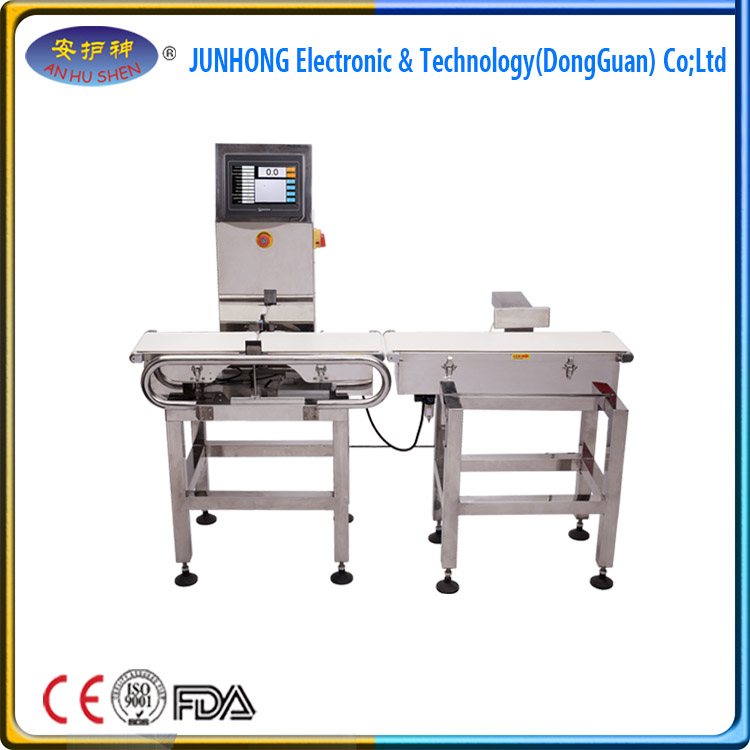

Accurate CheckWeigher for Production Lines
Industrial check weigher according to your specifications, you can depend on accurate weight control, maximized efficiency, and consistent product throughput of food checkweigher, even in rugged industrial environments. From raw or frozen products, bags, cases or barrels to mailers, totes and cases, we`ll keep your line moving toward maximum productivity at all times. There are more details of industrial check weigher as below.
Features of automatic industry checkweigher
WEINVIEW PLC and 7″ touch screen,more stability and easier to operate;
Apply HBM load cell ensure high accuracyand stability (original from Germany);
Solid SUS304 structure ensure stableperformance and precise weighing of industrial check weigher;
Reject arm, air blast or pneumaticpusher for selecting;
Belt disassembling without tools, whichis easier to clean;
Install emergency switch at the size ofmachine, user friendly operation;
Arm device show clients clearly for theproduction situation (optional);
Specifications
|
Model No. |
EJH-W220 |
|
Weighing range |
10-1200g |
|
Accuracy |
±0.5 |
|
Mini Scale |
0.1 |
|
Max selecting speed T/min |
210 |
|
Conveying speed m/min |
13-96 |
|
Detecting length |
60-300mm |
|
Detecting width |
30-220mm |
|
Detecting height |
10-200mm |
|
Weighing belt size(L*W) |
450*220 |
|
Remarks |
Normal |
|
Reject systems |
Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type |
|
Reject direct |
Single direction, separate weight, Multi selecting or others |
|
Product feeding methods |
production line dispatching, manual operation, vibration feeding or others |
|
Main material |
Stainless steel 304 |
|
Control system |
WEINVIEW PLC and 7″ HMI |
|
Power |
AC220V 50hz ~ 60HZ,0.5KW-1KW |
|
Conveying direct |
Facing the panel from left to right (customizable) |
|
Working environment |
Temperature 10~40 ℃,humidity 95% no condensation |
