Basic Info

Model No.: JH-5

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Other, Station, Prison, Museum

Outer Frame: 2.2 X0.82 X0.5m ( H X W X D: Inner Frame: 2.0X0.7X0.5m (H X W X Depth)

Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

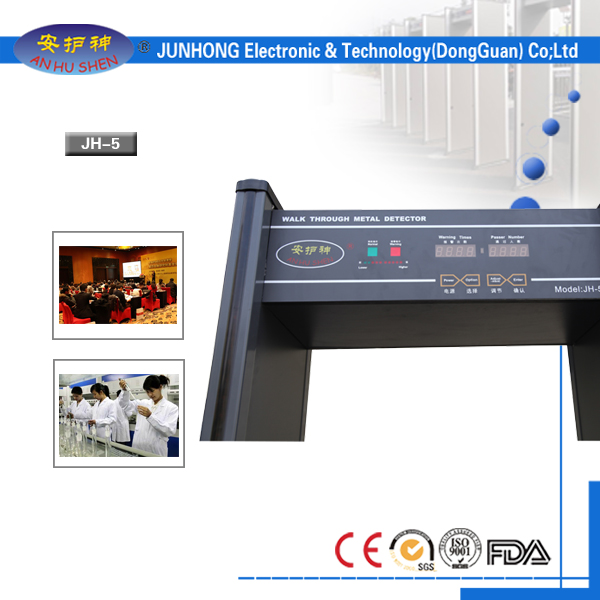

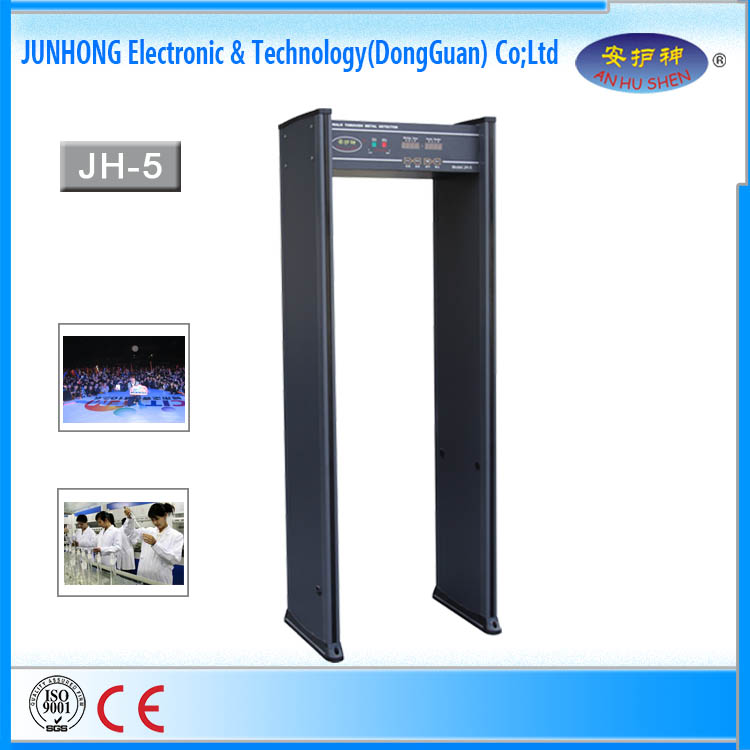

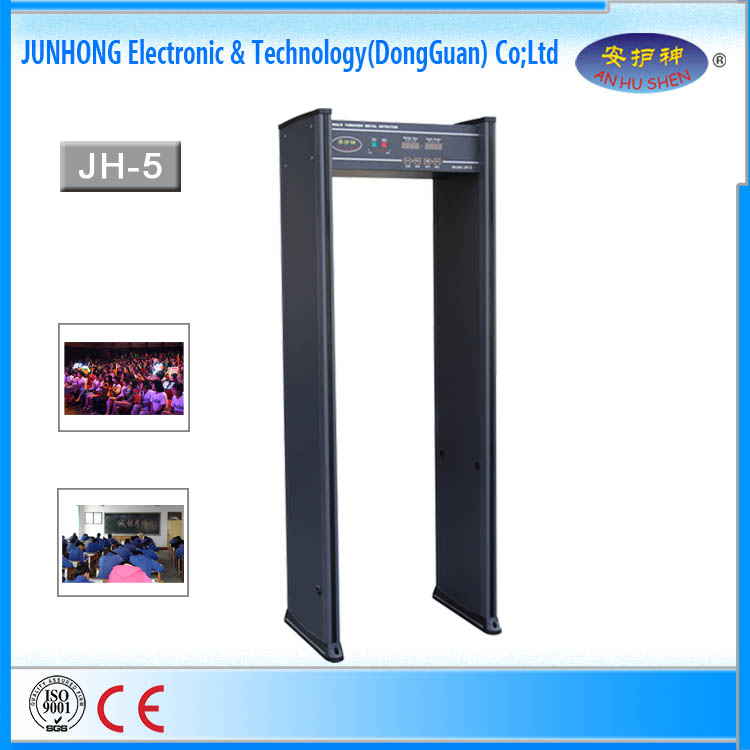

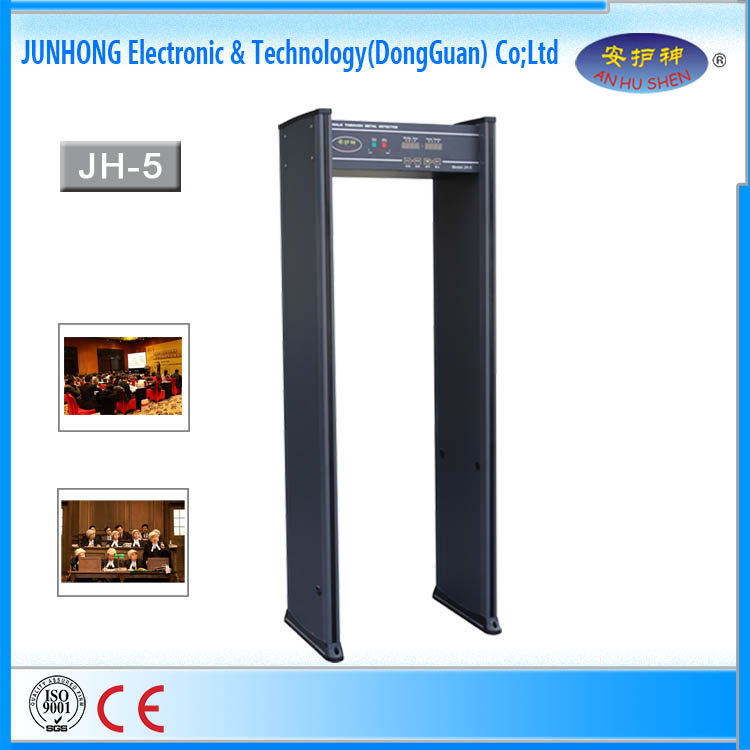

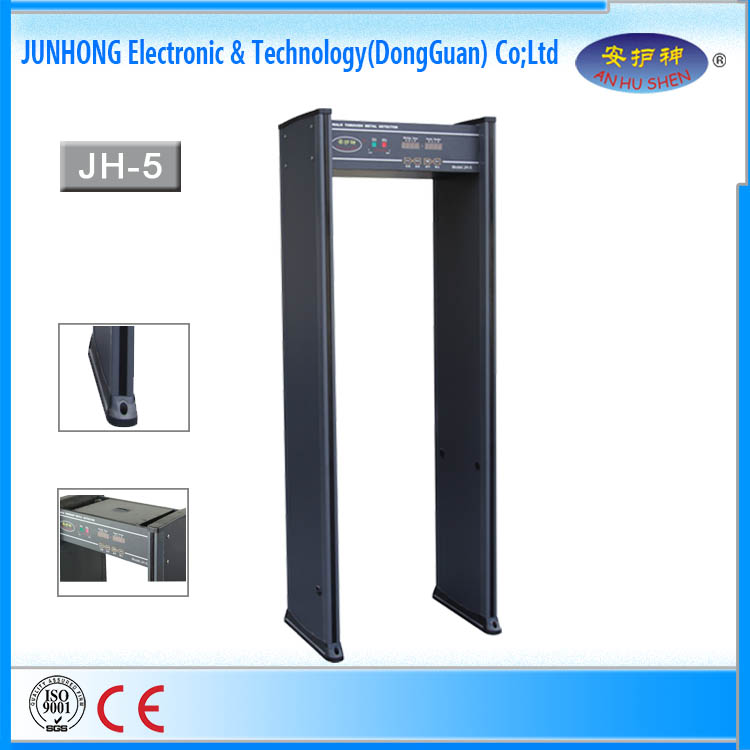

Hi-Tech Multi Zone Security Metal Detector

     At the large crowds require greater through put, if you are scanning a large volume of individuals, a Hi-Tech Multi Zone Walk Through Metal Detector will let you process more quicker. Because the multiple zones of detection allow the exact location of concealed weapons to be pinpointed. A display of the walkthrough metal detector shows if the weapons are located on the left, right or centre of the person being screened and if it is at ankle, knee, waist, chest or head height.

Professional choice for metal detection:
JH series walk through metal detector is a CE approved concealed weapons detector. This walk-through metal detector which uses advanced magnetic technology to accurately pinpoint the location, size, and number of concealed weapons, such as knives and guns. Personal artifacts such as coins, keys or belt buckles will not set off the alarm. The walk-through metal detectors a true multi-zone metal detector with new advanced features. It offers superior performance for demanding high security applications.
Reasons to choose JH walk-through metal detector:
1. Deters crime
2. Improves traffic flow
3. Reduces the number of required searches
4. Reduces workload of security personnel
5. Reduces false alarms
6. Increases Building safety with minimal cost
7. Durable material adoption
This walk-through metal detector can be used in the factory, prison, court, exhibition hall, stadium and entertainment lieu, where the prohibited articles need to be checked for safety.

Function and Character
(1) The door is steady, robust and long service life .easy to be conveyed, mounted and dismounting.
(2) Easy Assembly,The modular design allows for a quick and very simple assembly. Only 8 screws are required for.
(3) Overhead Control Unit: LED Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into the overhead compartment.
(4) Accurate location: 6 independent distributing search coverage and acousto-optic alarm when target is found. Panel indicator light directly displays the alarming area which can exactly indicate the target.
(5) Entry Pacing Lights: Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights on the entrance side of each panel.
(6) High adjustable sensitivity: JH series digital scanner gate is adjustable. In the highest volume, articles as small as a paper clip can be detected and indicated.
(7) Complex circuit, infrared installation and computer automatic identification decrease the mistakes and missing dramatically. It can automatically show the alarm frequency and numbers of passed people.
(8) Adjustable Flexibility: We can reach the security requirements by adjusting the flexibility. There are 100 flexibility degrees in each detective area.
(9) Password protection setting: You can change the system, flexibility and other setting only afte typing in the pass word correctly and only authorized person allowed to change the setting can’t change the settings.
(10) Adoption of weak magnetic field launching technology will not cause harm to heart pacemaker wearer, pregnant women, disks and videos.
(11) Two or more gates can work simultaneously
(12) Warranty:Limited 12 months, parts and labor

Dimensions
Outer frame: 2.2 X0.82 X0.5m ( H X W X Depth)
Inner frame: 2.0X0.7X0.5m (H X W X Depth)
Electric current: 90-240vAC
Power: 35W
Net Weight: about 75kg
Humidity(6) working environment: -30~45℃,
humidity <=95%RH
Standard: GB15210-2003
Optional accessories
Remote control
ABS plastic base for protection

---
