- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
AN HU SHEN
- Model Number:
-
JH-8018Z
- Application:
-
check security at airport, station, metro, jail, hotel
- Type:
-
walk through metal detector
- Certificate:
-
CE,ISO9001
- Warranty period:
-
12 months
- Detecting zone:
-
18 Detecting zones
- Electronic Current:
-
90V-240V
- Net Weight::
-
65kg
- Standard::
-
GB15210-2003
- Work environment:
-
-20℃~70℃
- Sensitivity level::
-
255 level
- SupplyAbility:
- 1000 Set/Sets per Month
- Packaging Details
- Strong carton package for export transport
- Port
- SHENZHEN
- Lead Time :
- 3~7DAYS

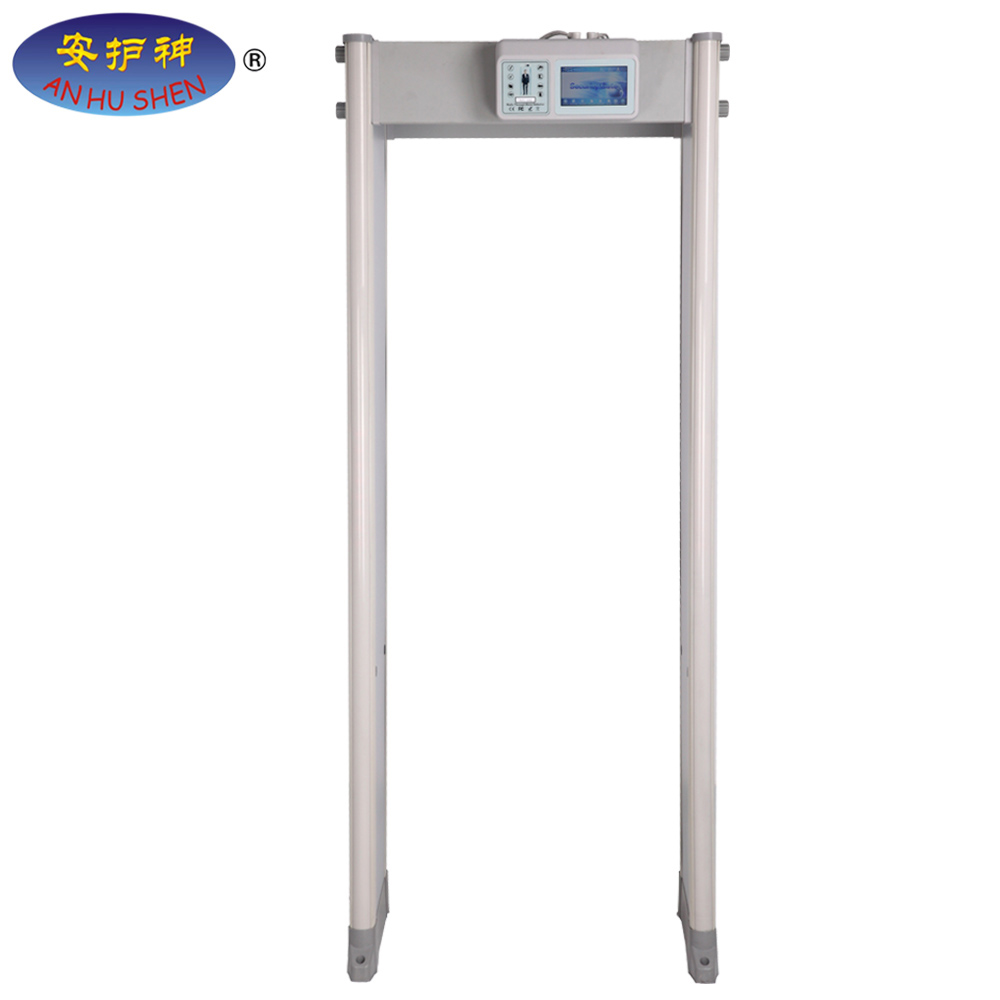

Multi-zone arched walk through metal detector
|
Brief introduction |
|||
|
Advantages of this walk through metal detector: high sensitivity; anti- interfere; multi detection zones; adjust sensitivity of each one individually; self diagnostic, when power on; 7-inch LCD capacitive touch screen; high-strength materials, fireproof, anti-corrosion, shockproof; real-time environment interfere monitor. |
|||
|
specification |
|||
|
Model |
JH-8018Z |
JH-8024Z |
JH-8033Z |
|
Detection zones |
6/12/18 zones |
8/16/24 zones |
11/22/33 zones |
|
Start-stop technology |
infrared devices with automatic start-stop technology. |
||
|
Excluding function |
appointed metal on one body like the belt,bra,etc. |
||
|
LCD screen |
7-inch LCD capacitive touch |
||
|
IP Grade |
IP55 superior waterproof performance |
||
|
Count the number of pass |
bidirectional |
||
|
Count the number of alarm |
bidirectional |
||
|
Dual password protection |
support |
||
|
Smart Partition |
YES |
||
|
Smart Partition alarm indicator |
YES |
||
|
Double sides SMD LED |
YES |
||
|
working frequency |
100 frequencies |
||
|
Alarm quiet mode |
support |
||
|
Adjust the alarm sound |
suport |
||
|
Zone Sensitivity adjustable |
YES |
||
|
Adjust sensitivity |
255 levels |
||
|
Overall Security level |
100 levels |
||
|
Built-in programs |
72 preset applications |
||
|
Detection speed: |
more than 60 detections per minute. |
||
|
Back-up battery |
optional battery continues work for 2/8 hours |
||
|
Restore factory settings |
support |
||
|
Technical Standard |
|||
| Electrical safety standards |
EN60950 |
||
|
Radiation standards |
EN50081-1 |
||
|
Anti-interference standard |
EN50082-1 |
||
|
National standard |
(GB15210-2003) for Walk Through Metal Detector |
||
|
ISO9001:2008 certificate |
YES |
||
|
OHSAS18001 health certificate |
YES |
||
|
ISO14001 environment certificate |
YES |
||
|
EU CE FCC ROHS certificates |
YES |
||
|
packing and dimension |
|||
|
vertical dimension |
2240mm*880mm*690mm |
||
|
vertical channel size |
2020mm*750mm*590mm |
||
|
packing size |
2320mm*920mm*180mm |
||
|
packing gross weight |
69kg |
||
All the walk through metal detectors are packed in strong carton, suitable for exportation. optional plywood packing available
We are security metal detector manufacturer since 2005, specialized in R&D of detection technology, producing and selling metal detectors.
