Basic Info

Model No.: JH-33Z

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Other, Prison, Museum

Operating Temperatures: -20`C To +70`C

Additional Info

Packaging: paper carton

Productivity: 200pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200pcs/month

Certificate: ISO,CE

Port: Shenzhen

Product Description

Best Quality Metal Detector with Self-TestFunction

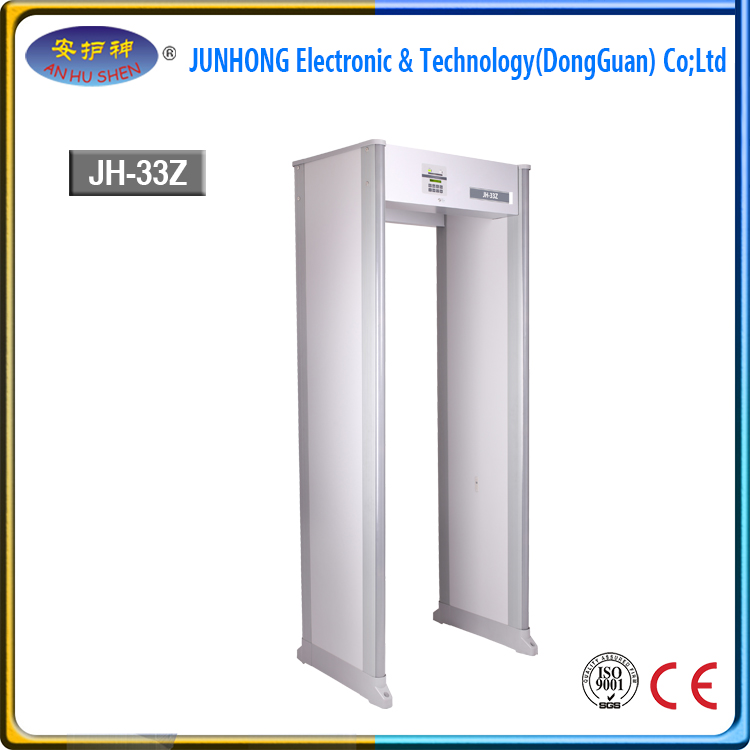

  Jh-33z walk through metal detector is the model with 33 detecting zones of JH-series. The 33 zones metal detector specially recommended by our company to customers which need high sensitivity. The archway metal detector‘s visual and audible alarms can remind people when the door frame metal detector detectsprohibited articles. Self-test function can test itself automatically. Thereare all product descriptions of metal detector gate as below.

Features of airport metal detector

Easy Assembly

JH-33Z, 33ZONE Modular design allows for a quick and easy assembly, only 4 screws to mount it.

Pinpoint Detection Zones

there are 33 distinct pinpoint detection zones for full target coverage on the left, centre and right side of the body from head to toe

Traffic Lights

On the entrance of the archway, there traffic light to remind you the detector is ready for passenger.

Audible and visual alarms

There is audible alarm and visual LED lights signal when a target has been detected, the pinpoint lights on the exit gatepost will show the location of  any offending object.

 Touchpad controls

The access control panel is designed for use by authorized personnel with specific, multi-level security codes. it allows authorized users to change settings.

 Self-test

No battery is required for memory retention. while the unit is in operation, a self-test is performed , any failures or problems will be immediately reported on the LCD display



Specifications

1) Operating temperatures

-20`C to +70`C; humidity:to 95% non-condensing

2) Powerfully automatic 100 to 240VAC,50 or 60 hertz,5watts;no rewiring, switching or adjustments required

3) Weatherproofing/foreign object protection standards meet IP55, IEC standard.

4) Traffic counter

Counter count  the number of passenger that have passed through the detector, the number of alarms and calculates alarm percentage

5) Synchronization

Dual channels and DSP circuit allow several JH-33Z’s to operate simultaneously in close proximity to another

6)Alarms

Audible tone and volume adjustable. Bright LED visual alarm

7) Target pinpoint lights

Thirty-three distinct zones are displayed with two independent columns of LED’ located on exit side of the gate



Dimensions

Overall sizes (cm):224(height)x90(width)x58(depth)

Size of alley (cm):224(height)x76(width)x58(depth)

Net Weight: 68kg

Shipping size(cm): 227x73x22  (side panel ) 80 x 59 x28cm (control box)

Shipping weight: 90kg

---
